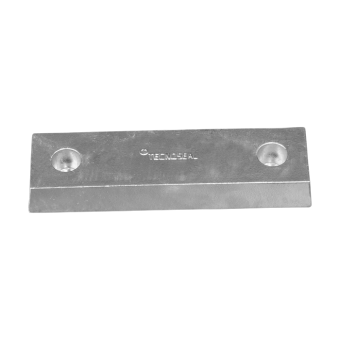

Tecnoseal Riva Rectangular Trim Tab Anode 217x60x30 mm

Name: Tecnoseal Riva Rectangular Trim Tab Anode 217x60x30 mm
SKU: Tecnoseal 00214

ID 1406182

$ 161.42

1-2 weeks delivery time

Item:

Zinc
Magnesium

Tecnoseal 00214 rectangular sacrificial plate anodes are designed for Riva marine trim tab (flap) applications and are available in zinc, aluminium and magnesium. All three versions measure 217 mm (8.54 in) in length, 60 mm (2.36 in) in width and 30 mm (1.18 in) in height, with two 8 mm (0.31 in) mounting holes spaced 160 mm (6.30 in) centre to centre and 23 mm (0.91 in) recess diameters. The zinc 00214 weighs 2.40 kg, the aluminium 00214AL weighs 0.94 kg, and the magnesium 00214MG weighs 0.61 kg. Select the appropriate anode material according to the vessel's corrosion protection requirements.

Description
Ask a Question

Tecnoseal 00214 Riva Rectangular Trim Tab Anode 217x60x30 mm – Zinc, Aluminium & Magnesium

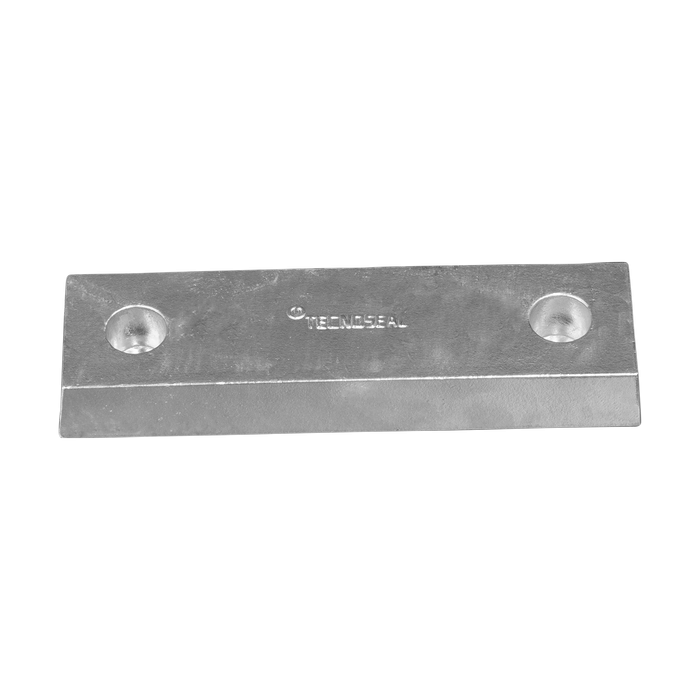

The Tecnoseal 00214 series consists of rectangular sacrificial plate anodes designed for Riva marine trim tabs (flaps). Available in zinc, aluminium and magnesium, these anodes provide replaceable sacrificial elements to help protect compatible metallic components against galvanic corrosion.

All three versions share the same rectangular profile, measuring 217 mm (8.54 in) in length, 60 mm (2.36 in) in width and 30 mm (1.18 in) in height. Each plate features two recessed mounting holes positioned along its longitudinal axis, with a centre-to-centre spacing of 160 mm (6.30 in).

The mounting holes have a diameter of 8 mm (0.31 in), with a recess diameter of 23 mm (0.91 in). The three material versions retain identical mounting dimensions but have different weights.

Key Features

Manufacturer: Tecnoseal
Product Series: 00214
Product Type: Rectangular sacrificial plate anode
Available Materials: Zinc, Aluminium, Magnesium
Application: Riva marine trim tabs / flaps
Shape: Rectangular plate
Length (l): 217 mm
Width (a): 60 mm
Height (h): 30 mm
Number of Mounting Holes: 2
Hole Spacing (i): 160 mm
Mounting Hole Diameter (Ø): 8 mm
Recess Diameter (Ø1): 23 mm

Technical Specifications

Parameter	00214	00214AL	00214MG
Material	Zinc	Aluminium	Magnesium
Length (l)	217 mm	217 mm	217 mm
Width (a)	60 mm	60 mm	60 mm
Height (h)	30 mm	30 mm	30 mm
Hole Spacing (i)	160 mm	160 mm	160 mm
Hole Diameter (Ø)	8 mm	8 mm	8 mm
Recess Diameter (Ø1)	23 mm	23 mm	23 mm
Weight	2.40 kg	0.94 kg	0.61 kg
EAN	8033837060376	8052530700006	8052744981871

Available Models

Tecnoseal 00214 – Zinc: Rectangular plate anode, 217 × 60 × 30 mm, weight 2.40 kg (5.29 lbs).
Tecnoseal 00214AL – Aluminium: Rectangular plate anode, 217 × 60 × 30 mm, weight 0.94 kg (2.07 lbs).
Tecnoseal 00214MG – Magnesium: Rectangular plate anode, 217 × 60 × 30 mm, weight 0.61 kg (1.34 lbs).

Riva Trim Tab Application

The Tecnoseal 00214 series is intended for compatible Riva trim tab installations requiring a rectangular sacrificial anode with the specified dimensions and mounting arrangement.

The sacrificial anode material helps reduce galvanic corrosion of associated metallic components when installed with the required electrical contact.

Mounting Configuration

The rectangular plate incorporates two recessed mounting holes. Their centre-to-centre spacing is 160 mm, the fastening hole diameter is 8 mm and the recess diameter is 23 mm.

All three variants use the same installation geometry. Before replacement, verify the body dimensions and fastening configuration against the existing anode.

Choosing the Correct Anode Material

The Tecnoseal 00214 series is available in three sacrificial anode materials:

Zinc: Zinc sacrificial anode version.
Aluminium: Aluminium sacrificial anode version.
Magnesium: Magnesium sacrificial anode version.

Choose the appropriate material according to the vessel's operating water conditions, existing cathodic protection system and equipment manufacturer's recommendations.

Inspection and Replacement

Sacrificial anodes gradually lose material during service. Periodic inspection is recommended to assess consumption and determine when replacement is required.

Before ordering, compare the 217 × 60 × 30 mm dimensions, 160 mm mounting hole spacing, 8 mm fastening holes and 23 mm recess diameters with the original component.

Supply: One Tecnoseal 00214 series rectangular sacrificial plate anode in the selected material.
