Tecnoseal 875815 Volvo Penta AQ 200-290 SP Outdrive Ring Anode Ø120 mm

ID 1405193

$ 49.47

1-2 weeks delivery time

Type:

Zinc
Magnesium
Aluminium

Item:

210 g
340 g
840 g

The Tecnoseal 00703 series includes sacrificial outdrive ring anodes compatible with Volvo Penta AQ 200-290 and SP single-propeller drives, corresponding to OEM part number 875815 and catalogue designation V18. Each anode features a circular ring-shaped body with a central opening and mounting points, measuring 156 mm in overall length (l), 35 mm in height (h), 120 mm in outer ring diameter (Ø), 61 mm in central opening diameter (Ø1), 104 mm in mounting dimension (Ø2) and 9 mm in mounting hole diameter (Ø3). The additional catalogue dimension (i) is 80 mm. Available in zinc (00703, 840 g), aluminium (00703AL, 340 g) and magnesium (00703MG, 210 g), these anodes help protect compatible Volvo Penta outdrive components against galvanic corrosion.

Description
Ask a Question

Tecnoseal 875815 Volvo Penta AQ 200-290 SP Outdrive Ring Anode Ø120 mm

The Tecnoseal 00703 series includes sacrificial outdrive ring anodes compatible with Volvo Penta AQ 200-290 and SP single-propeller drives. These anodes correspond to Volvo Penta OEM part number 875815 and Tecnoseal catalogue designation V18. They help protect compatible submerged metallic outdrive components against galvanic corrosion.

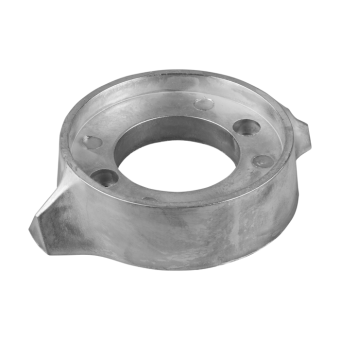

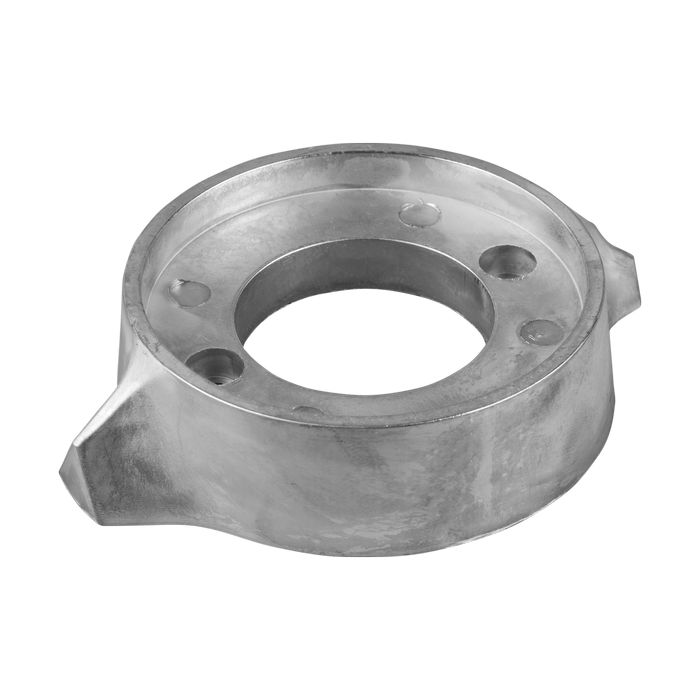

Each anode features a circular ring-shaped body with a central opening and projecting mounting sections. According to the Tecnoseal catalogue, it measures 156 mm in overall length, 35 mm in height and 120 mm in outer ring diameter. The central opening diameter is 61 mm, the mounting dimension (Ø2) is 104 mm and the mounting hole diameter (Ø3) is 9 mm. The additional catalogue dimension (i) is 80 mm. Zinc, aluminium and magnesium versions share identical dimensions.

Technical Specifications

Manufacturer	Tecnoseal
Product Type	Outdrive Ring Anode
Compatible Manufacturer	Volvo Penta
Compatible Drives	AQ 200-290, SP
Propeller Configuration	Single Propeller
Volvo Penta OEM Reference	875815
Tecnoseal Catalogue Designation	V18
Available Materials	Zinc, Aluminium, Magnesium
Overall Length (l)	156 mm (6.14 in)
Height (h)	35 mm (1.38 in)
Dimension (i)	80 mm (3.15 in)
Outer Ring Diameter (Ø)	120 mm (4.72 in)
Central Opening Diameter (Ø1)	61 mm (2.40 in)
Mounting Dimension (Ø2)	104 mm (4.09 in)
Mounting Hole Diameter (Ø3)	9 mm (0.35 in)

Available Variants and Cross-References

Tecnoseal Code	Material	Weight	Osculati Reference
00703	Zinc	0.84 kg (1.85 lbs)	43.528.00
00703AL	Aluminium	0.34 kg (0.75 lbs)	43.528.10
00703MG	Magnesium	0.21 kg (0.46 lbs)	43.528.11

Product Codes and EAN

Tecnoseal Code	EAN
00703	8033837063797
00703AL	8059617814915
00703MG	8059617814922

Compatibility and References

Compatible Manufacturer: Volvo Penta
Compatible Drives: AQ 200-290, SP
Propeller Configuration: Single Propeller
Volvo Penta OEM Reference: 875815
Tecnoseal Catalogue Designation: V18
Zinc Version: Tecnoseal 00703 / Osculati 43.528.00
Aluminium Version: Tecnoseal 00703AL / Osculati 43.528.10
Magnesium Version: Tecnoseal 00703MG / Osculati 43.528.11

Key Features

Sacrificial ring anode compatible with Volvo Penta AQ 200-290 and SP outdrives.
Designed for the specified single-propeller drive applications.
Available in zinc, aluminium and magnesium.
Helps protect compatible submerged metallic outdrive components against galvanic corrosion.
Circular ring-shaped body with projecting mounting sections.
Overall length: 156 mm.
Outer ring diameter: 120 mm.
Central opening diameter: 61 mm.
Height: 35 mm.
Mounting hole diameter: 9 mm.
Identical dimensions across all three material versions.
Volvo Penta OEM reference: 875815.
Osculati cross-references: 43.528.00 (zinc), 43.528.10 (aluminium) and 43.528.11 (magnesium).

Compatibility Note: Verify the OEM reference and installation dimensions against the existing outdrive anode before ordering.
