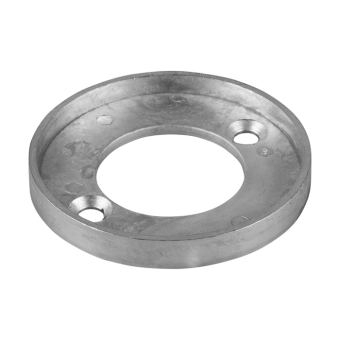

Tecnoseal 875805 / 853811 Volvo Penta AQ 250-270 Outdrive Ring Anode Ø118 mm

ID 1405189

$ 27.32

1-2 weeks delivery time

Type:

Zinc
Magnesium
Aluminium

Item:

300 g
80 g
120 g

The Tecnoseal 00702 series includes sacrificial outdrive ring anodes compatible with Volvo Penta V17 and AQ 250-270 drives, corresponding to OEM part numbers 875805 and 853811. Each anode features a circular ring-shaped body with two mounting holes, measuring 118 mm in outer diameter (Ø), 58 mm in central opening diameter (Ø1), 103 mm in mounting dimension (Ø2) and 10 mm in mounting hole diameter (Ø3). The ring measures 10 mm in height (h), with an additional catalogue dimension (i) of 80 mm. Available in zinc (00702, 300 g), aluminium (00702AL, 120 g) and magnesium (00702MG, 80 g), these anodes help protect compatible Volvo Penta outdrive components against galvanic corrosion.

Description
Ask a Question

Tecnoseal 875805 / 853811 Volvo Penta AQ 250-270 Outdrive Ring Anode Ø118 mm

The Tecnoseal 00702 series includes sacrificial outdrive ring anodes compatible with Volvo Penta V17 and AQ 250-270 drives. These anodes correspond to Volvo Penta OEM part numbers 875805 and 853811 and help protect submerged metallic outdrive components against galvanic corrosion.

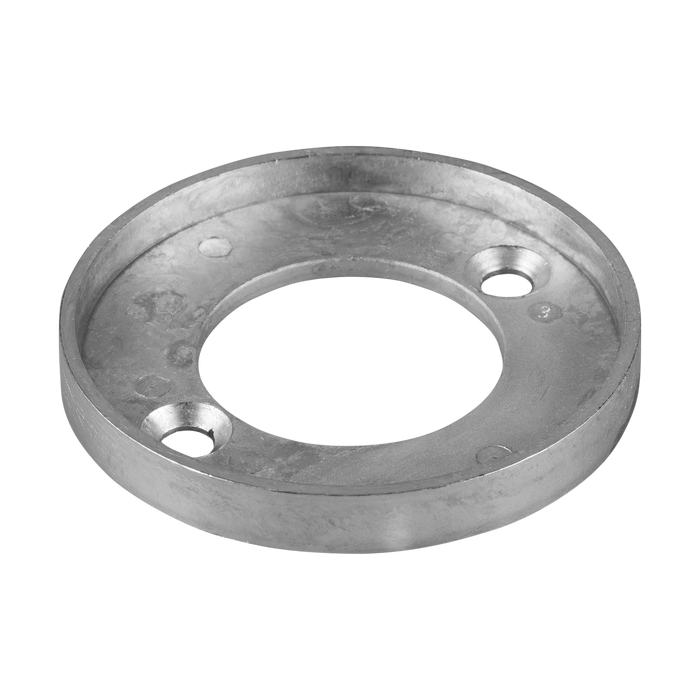

Each anode features a circular ring-shaped body with a central opening and two mounting holes. According to the Tecnoseal catalogue, it measures 118 mm in outer diameter, 58 mm in central opening diameter and 10 mm in height. The mounting dimension (Ø2) is 103 mm, with 10 mm mounting holes. The additional dimension (i) measures 80 mm. Three material versions are available: zinc, aluminium and magnesium, all sharing identical dimensions.

Technical Specifications

Manufacturer	Tecnoseal
Product Type	Outdrive Ring Anode
Compatible Manufacturer	Volvo Penta
Compatible Models	V17, AQ 250-270
Volvo Penta OEM References	875805, 853811
Available Materials	Zinc, Aluminium, Magnesium
Height (h)	10 mm (0.39 in)
Dimension (i)	80 mm (3.15 in)
Outer Diameter (Ø)	118 mm (4.65 in)
Central Opening Diameter (Ø1)	58 mm (2.28 in)
Mounting Dimension (Ø2)	103 mm (4.06 in)
Mounting Hole Diameter (Ø3)	10 mm (0.39 in)

Available Variants

Tecnoseal Code	Material	Weight	EAN
00702 (Osculati 43.525.00)	Zinc	0.30 kg (0.66 lbs)	8033837063780
00702AL	Aluminium	0.12 kg (0.26 lbs)	8059617814892
00702MG	Magnesium	0.08 kg (0.18 lbs)	8059617814908

Compatibility and References

Compatible Manufacturer: Volvo Penta
Compatible Drives: V17, AQ 250-270
Volvo Penta OEM References: 875805, 853811
Application: Outdrive Corrosion Protection
Zinc Version: Tecnoseal 00702
Aluminium Version: Tecnoseal 00702AL
Magnesium Version: Tecnoseal 00702MG

Key Features

Sacrificial ring anode compatible with Volvo Penta V17 and AQ 250-270 outdrives.
Available in zinc, aluminium and magnesium.
Helps protect compatible submerged metallic outdrive components against galvanic corrosion.
Circular ring-shaped body with a central opening and two mounting holes.
Outer diameter: 118 mm.
Central opening diameter: 58 mm.
Mounting dimension: 103 mm.
Mounting hole diameter: 10 mm.
Height: 10 mm.
Identical dimensions across all three material versions.
Volvo Penta OEM references: 875805 and 853811.
