The Tecnoseal PLAC-2 is a stainless steel adapter plate designed for split ring anode assemblies on compatible Volvo Penta 120S saildrives. Its curved profile features a countersunk mounting hole and an additional transverse hole, with dimensions of 37 mm in length (l), 14 mm in width (a), 8 mm in height (h) and 6 mm in hole diameter (Ø). Weighing 0.07 kg (0.15 lbs), this adapter plate is intended for use with the split ring mounting arrangement. Tecnoseal part number PLAC-2, EAN 8052744984834.
- Description
- Ask a Question
-

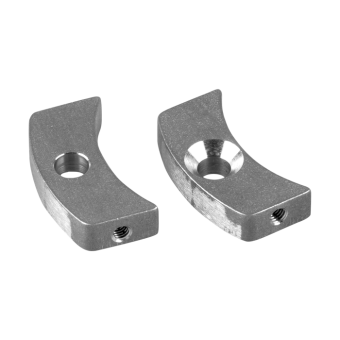

Tecnoseal PLAC-2 Stainless Steel Adapter Plate for Volvo Penta 120S Saildrive Split Ring Anode
The Tecnoseal PLAC-2 is a stainless steel adapter plate designed for the split ring anode mounting arrangement on compatible Volvo Penta 120S saildrives. Unlike a sacrificial anode, this component is a mounting adapter for the split ring assembly.

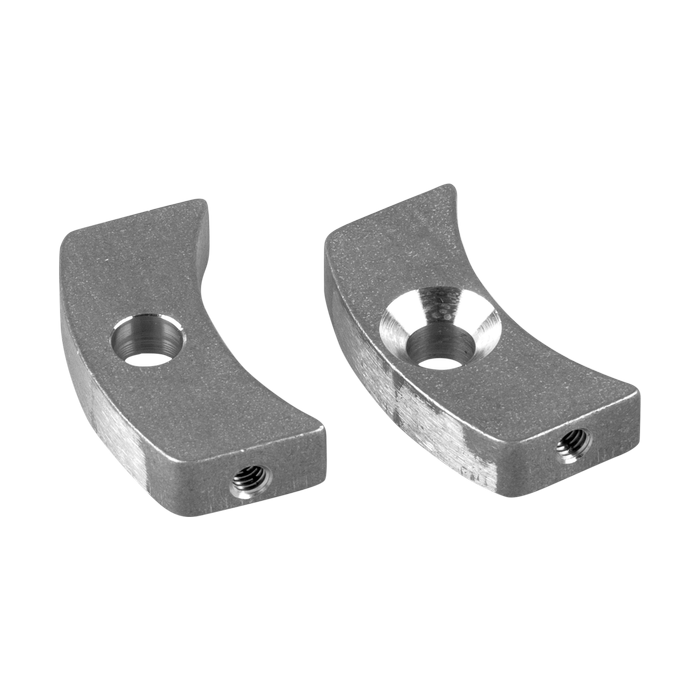

The adapter features a curved plate profile with a countersunk mounting hole and an additional transverse hole. According to the Tecnoseal catalogue, it measures 37 mm in length, 14 mm in width and 8 mm in height, with a 6 mm hole diameter. The stainless steel component weighs 0.07 kg (0.15 lbs).
Technical Specifications
Manufacturer Tecnoseal Product Code PLAC-2 (Osculati 43.529.15) Product Type Split Ring Anode Adapter Plate Material Stainless Steel Compatible Manufacturer Volvo Penta Application Saildrive 120 Split Ring Anode Assembly Length (l) 37 mm (1.46 in) Width (a) 14 mm (0.55 in) Height (h) 8 mm (0.31 in) Hole Diameter (Ø) 6 mm (0.24 in) Weight 0.07 kg (0.15 lbs) EAN 8052744984834
Compatibility and Application
- Compatible Manufacturer: Volvo Penta
- Compatible Saildrive: 120S
- Application: Adapter plate for split ring anode mounting arrangements.
- Tecnoseal Reference: PLAC-2
Key Features
- Stainless steel adapter plate for Volvo Penta saildrive split ring anode assemblies.
- Curved plate design for the mounting arrangement.
- Countersunk mounting hole and transverse hole.
- Length: 37 mm.
- Width: 14 mm.
- Height: 8 mm.
- Hole diameter: 6 mm.
- Weight: 70 g.
- Tecnoseal part number: PLAC-2.
Installation Note: Verify the adapter dimensions and mounting configuration against the existing saildrive assembly before ordering.
-
