ID
1405185
$ 26.75
1-2 weeks delivery time
Type:
- Zinc
- Magnesium
- Aluminium
Item:
- 50 g
- 90 g
- 210 g

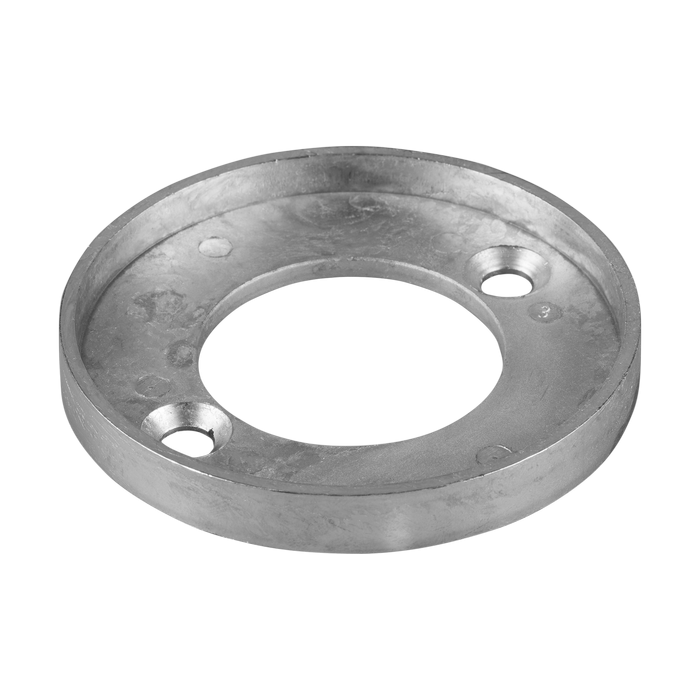

The Tecnoseal 00701 series includes sacrificial outdrive ring anodes compatible with Volvo Penta V16 and AQ 200 drives, corresponding to OEM part number 875809. Each anode features a circular ring-shaped body with mounting holes, measuring 108 mm in outer diameter (Ø), 58 mm in central opening diameter (Ø1), 103 mm in mounting diameter (Ø2) and 10 mm in mounting hole diameter (Ø3). The anode measures 10 mm in height (h), with an additional catalogue dimension (i) of 80 mm. Available in zinc (00701, 210 g), aluminium (00701AL, 90 g) and magnesium (00701MG, 50 g), these anodes help protect compatible outdrive components against galvanic corrosion.
- Description
- Ask a Question
-

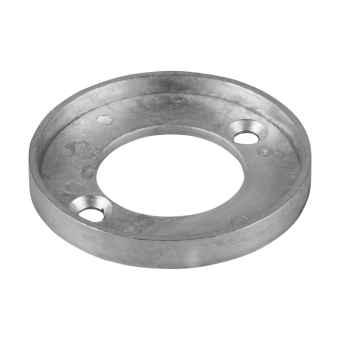

Tecnoseal 875809 Volvo Penta AQ 200 Outdrive Ring Anode Ø108 mm
The Tecnoseal 00701 series includes sacrificial outdrive ring anodes compatible with Volvo Penta V16 and AQ 200 drives. These anodes correspond to Volvo Penta OEM part number 875809 and are designed to help protect submerged metallic outdrive components against galvanic corrosion.
Each anode features a circular ring-shaped body with a central opening and mounting holes. According to the Tecnoseal catalogue, it measures 108 mm in outer diameter, 58 mm in central opening diameter and 10 mm in height. The mounting diameter is 103 mm, with 10 mm mounting holes. The additional catalogue dimension (i) is 80 mm. Three material versions are available: zinc, aluminium and magnesium, all sharing identical dimensions.
Technical Specifications
Manufacturer Tecnoseal Product Type Outdrive Ring Anode Compatible Manufacturer Volvo Penta Compatible Models V16, AQ 200 Volvo Penta OEM Reference 875809 Available Materials Zinc, Aluminium, Magnesium Height (h) 10 mm (0.39 in) Dimension (i) 80 mm (3.15 in) Outer Diameter (Ø) 108 mm (4.25 in) Central Opening Diameter (Ø1) 58 mm (2.28 in) Mounting Diameter (Ø2) 103 mm (4.06 in) Mounting Hole Diameter (Ø3) 10 mm (0.39 in)
Available Variants
Tecnoseal Code Material Weight EAN 00701 Zinc 0.21 kg (0.46 lbs) 8033837063773 00701AL Aluminium 0.09 kg (0.20 lbs) 8059617814878 00701MG Magnesium 0.05 kg (0.11 lbs) 8059617814885
Compatibility and References
- Compatible Manufacturer: Volvo Penta
- Compatible Drives: V16, AQ 200
- Application: Outdrive Corrosion Protection
- Volvo Penta OEM Reference: 875809
- Zinc Version: Tecnoseal 00701
- Aluminium Version: Tecnoseal 00701AL
- Magnesium Version: Tecnoseal 00701MG
Key Features
- Sacrificial ring anode compatible with Volvo Penta V16 and AQ 200 outdrives.
- Available in zinc, aluminium and magnesium.
- Helps protect compatible submerged metallic outdrive components against galvanic corrosion.
- Circular ring-shaped body with central opening and mounting holes.
- Outer diameter: 108 mm.
- Central opening diameter: 58 mm.
- Mounting diameter: 103 mm.
- Mounting hole diameter: 10 mm.
- Height: 10 mm.
- Identical dimensions across all three material versions.
- Corresponds to Volvo Penta OEM part number 875809.
-
