Tecnoseal Volvo Penta 120S Saildrive Split Ring Anode Ø95 mm

ID 1405209

$ 86.39

1-2 weeks delivery time

Type:

Zinc
Magnesium
Aluminium

Item:

160 g
400 g
100 g

The Tecnoseal 00706-1 series includes split ring sacrificial anodes designed for Volvo Penta 120S saildrives. The two-piece collar design allows the anode to be fitted around the saildrive mounting area, with fastening hardware illustrated in the Tecnoseal catalogue. Each anode measures 122 mm in overall length (l), 27 mm in height (h), 63 mm in catalogue dimension (i), 95 mm in outer ring diameter (Ø), 88 mm in diameter (Ø1) and 4.40 mm in mounting hole diameter (Ø2). Available in zinc (00706-1, 400 g), aluminium (00706-1AL, 160 g) and magnesium (00706-1MG, 100 g), these anodes help protect compatible Volvo Penta saildrive components against galvanic corrosion. All three variants share identical dimensions. Copy

Description
Ask a Question

Tecnoseal Volvo Penta 120S Saildrive Split Ring Anode Ø95 mm

The Tecnoseal 00706-1 series includes split ring sacrificial anodes designed for Volvo Penta 120S saildrives. These anodes help protect submerged metallic saildrive components against galvanic corrosion. The zinc and aluminium versions are cross-referenced with Osculati part numbers 43.529.12 and 43.529.13, respectively.

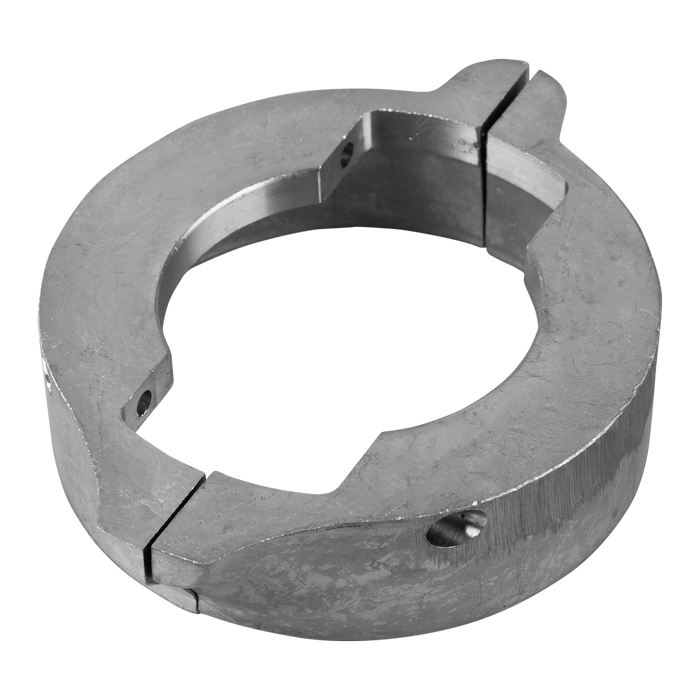

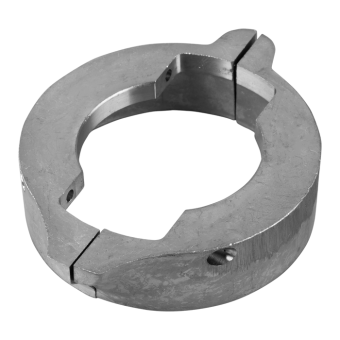

Each anode features a split circular collar with curved sections and projecting mounting points. According to the Tecnoseal catalogue, the assembled anode measures 122 mm in overall length, 27 mm in height and 95 mm in outer diameter. The additional diameter (Ø1) is 88 mm, the mounting hole diameter (Ø2) is 4.40 mm and the catalogue dimension (i) measures 63 mm. The catalogue illustration also shows fastening hardware. All three material versions share identical dimensions and mounting geometry.

Technical Specifications

Manufacturer	Tecnoseal
Product Type	Split Ring Saildrive Anode
Compatible Manufacturer	Volvo Penta
Compatible Saildrive	120S
Construction	Split Ring Collar
Available Materials	Zinc, Aluminium, Magnesium
Overall Length (l)	122 mm (4.80 in)
Height (h)	27 mm (1.06 in)
Dimension (i)	63 mm (2.48 in)
Outer Diameter (Ø)	95 mm (3.74 in)
Diameter (Ø1)	88 mm (3.46 in)
Mounting Hole Diameter (Ø2)	4.40 mm (0.17 in)

Available Variants and Cross-References

Tecnoseal Code	Material	Weight	Osculati Reference
00706-1	Zinc	0.40 kg (0.88 lbs)	43.529.12
00706-1AL	Aluminium	0.16 kg (0.35 lbs)	43.529.13
00706-1MG	Magnesium	0.10 kg (0.22 lbs)	Not provided

Product Codes and EAN

Tecnoseal Code	EAN
00706-1	8052744984803
00706-1AL	8052744984810
00706-1MG	8052744984827

Compatibility and References

Compatible Manufacturer: Volvo Penta
Compatible Saildrive: 120S
Application: Saildrive Corrosion Protection
Zinc Version: Tecnoseal 00706-1 / Osculati 43.529.12
Aluminium Version: Tecnoseal 00706-1AL / Osculati 43.529.13
Magnesium Version: Tecnoseal 00706-1MG

Key Features

Split ring sacrificial anode compatible with Volvo Penta 120S saildrives.
Available in zinc, aluminium and magnesium.
Helps protect submerged metallic saildrive components against galvanic corrosion.
Split collar construction with projecting mounting sections.
Overall length: 122 mm.
Height: 27 mm.
Outer diameter: 95 mm.
Additional diameter: 88 mm.
Mounting hole diameter: 4.40 mm.
Identical dimensions across all three material versions.
Osculati cross-references: 43.529.12 (zinc) and 43.529.13 (aluminium).

Compatibility Note: Verify the split-ring configuration and mounting dimensions against the existing Volvo Penta 120S saildrive anode before ordering.
