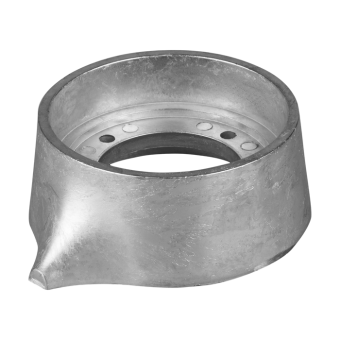

Tecnoseal 875812 Volvo Penta 110S Saildrive Ring Anode Ø106 mm

ID 1405201

$ 64.35

1-2 weeks delivery time

Type:

Zinc
Magnesium
Aluminium

Item:

350 g
220 g
940 g

The Tecnoseal 00705 series includes sacrificial ring anodes compatible with Volvo Penta 110S saildrives, corresponding to OEM part number 875812. Each anode features a circular collar-shaped body with projecting mounting sections, measuring 138 mm in overall length (l), 43 mm in height (h), 106 mm in outer diameter (Ø), 65 mm in central opening diameter (Ø1), 85 mm in diameter (Ø2) and 82 mm in diameter (Ø3). Available in zinc (00705, 940 g), aluminium (00705AL, 350 g) and magnesium (00705MG, 220 g), these anodes help protect compatible Volvo Penta saildrive components against galvanic corrosion. All three versions share identical dimensions.

Description
Ask a Question

Tecnoseal 875812 Volvo Penta 110S Saildrive Ring Anode Ø106 mm

The Tecnoseal 00705 series includes sacrificial ring anodes designed for compatibility with Volvo Penta 110S saildrives. These anodes correspond to Volvo Penta OEM part number 875812 and help protect submerged metallic saildrive components against galvanic corrosion. The zinc, aluminium and magnesium versions are cross-referenced with Osculati part numbers 43.530.00, 43.530.10 and 43.530.11, respectively.

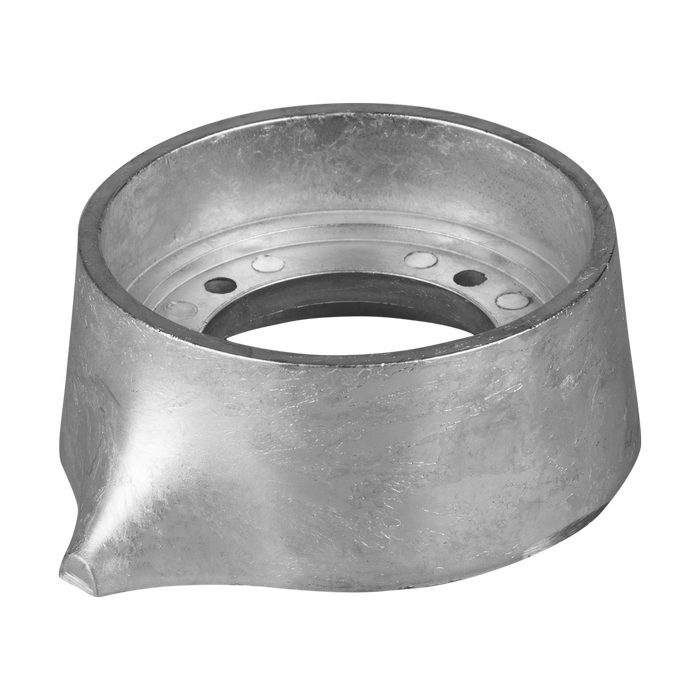

Each anode features a circular collar-shaped body with a central opening and projecting mounting sections. According to the Tecnoseal catalogue, the anode measures 138 mm in overall length, 43 mm in height and 106 mm in outer diameter. The central opening diameter is 65 mm, with additional diameters of 85 mm (Ø2) and 82 mm (Ø3). All three material versions share identical dimensions and mounting geometry.

Technical Specifications

Manufacturer	Tecnoseal
Product Type	Saildrive Ring Anode
Compatible Manufacturer	Volvo Penta
Compatible Saildrive	110S
Volvo Penta OEM Reference	875812
Available Materials	Zinc, Aluminium, Magnesium
Overall Length (l)	138 mm (5.43 in)
Height (h)	43 mm (1.69 in)
Outer Diameter (Ø)	106 mm (4.17 in)
Central Opening Diameter (Ø1)	65 mm (2.56 in)
Diameter (Ø2)	85 mm (3.35 in)
Diameter (Ø3)	82 mm (3.23 in)

Available Variants and Cross-References

Tecnoseal Code	Material	Weight	Osculati Reference
00705	Zinc	0.94 kg (2.07 lbs)	43.530.00
00705AL	Aluminium	0.35 kg (0.77 lbs)	43.530.10
00705MG	Magnesium	0.22 kg (0.49 lbs)	43.530.11

Product Codes and EAN

Tecnoseal Code	EAN
00705	8033837063810
00705AL	8059617814953
00705MG	8059617814960

Compatibility and References

Compatible Manufacturer: Volvo Penta
Compatible Saildrive: 110S
Application: Saildrive Corrosion Protection
Volvo Penta OEM Reference: 875812
Zinc Version: Tecnoseal 00705 / Osculati 43.530.00
Aluminium Version: Tecnoseal 00705AL / Osculati 43.530.10
Magnesium Version: Tecnoseal 00705MG / Osculati 43.530.11

Key Features

Sacrificial ring anode compatible with Volvo Penta 110S saildrives.
Available in zinc, aluminium and magnesium.
Helps protect compatible submerged metallic saildrive components against galvanic corrosion.
Circular collar-shaped body with projecting mounting sections.
Overall length: 138 mm.
Height: 43 mm.
Outer diameter: 106 mm.
Central opening diameter: 65 mm.
Additional diameters: 85 mm and 82 mm.
Identical dimensions across all three material versions.
Volvo Penta OEM reference: 875812.
Osculati cross-references: 43.530.00 (zinc), 43.530.10 (aluminium) and 43.530.11 (magnesium).

Compatibility Note: Verify the OEM reference and installation dimensions against the existing saildrive anode before ordering.
