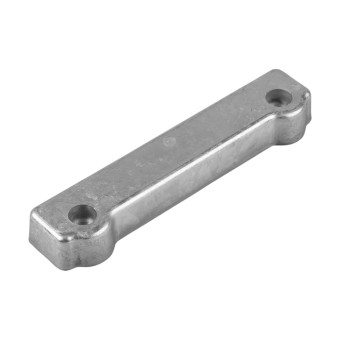

Tecnoseal 832598 Volvo Penta AQ 200-285 Transom Bar Anode 188 mm

Name: Tecnoseal 832598 Volvo Penta AQ 200-285 Transom Bar Anode 188 mm
SKU: Tecnoseal 00707

ID 1405214

$ 50.81

1-2 weeks delivery time

Type:

Zinc
Magnesium
Aluminium

Item:

950 g
370 g
240 g

The Tecnoseal 00707 series includes sacrificial transom bar anodes compatible with Volvo Penta AQ 200, 250, 270, 275, 280 and 285 outdrives, corresponding to OEM part number 832598. Each anode has an elongated rectangular body with two mounting holes and measures 188 mm in length (l), 41 mm in width (a) and 22 mm in height (h). The mounting hole spacing (i) is 145 mm, with a 15 mm counterbore diameter (Ø) and 9 mm through-hole diameter (Ø1). Available in zinc (00707, 950 g), aluminium (00707AL, 370 g) and magnesium (00707MG, 240 g), these anodes help protect compatible Volvo Penta transom and outdrive components against galvanic corrosion. All three versions share identical dimensions.

Description
Ask a Question

Tecnoseal 832598 Volvo Penta AQ 200-285 Transom Bar Anode 188 mm

The Tecnoseal 00707 series includes sacrificial transom bar anodes designed for compatibility with Volvo Penta AQ 200, 250, 270, 275, 280 and 285 outdrives. These anodes correspond to Volvo Penta OEM part number 832598 and help protect compatible metallic transom and outdrive components against galvanic corrosion. The aluminium and magnesium versions are cross-referenced with Osculati part numbers 43.550.01 and 43.550.02, respectively.

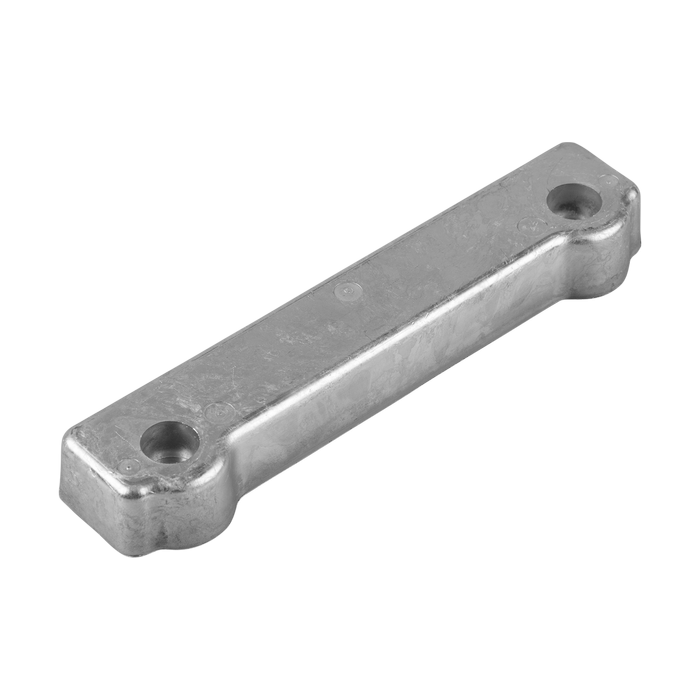

Each anode features an elongated rectangular bar-shaped body with two mounting holes positioned near its ends. According to the Tecnoseal catalogue, the anode measures 188 mm in overall length, 41 mm in width and 22 mm in height. The mounting hole spacing (i) is 145 mm, while the mounting holes feature a 15 mm counterbore diameter (Ø) and a 9 mm through-hole diameter (Ø1). Zinc, aluminium and magnesium versions have identical dimensions and mounting configurations.

Technical Specifications

Manufacturer	Tecnoseal
Product Type	Transom Bar Anode
Compatible Manufacturer	Volvo Penta
Compatible Outdrives	AQ 200, 250, 270, 275, 280, 285
Volvo Penta OEM Reference	832598
Available Materials	Zinc, Aluminium, Magnesium
Overall Length (l)	188 mm (7.40 in)
Width (a)	41 mm (1.61 in)
Height (h)	22 mm (0.87 in)
Mounting Hole Spacing (i)	145 mm (5.71 in)
Counterbore Diameter (Ø)	15 mm (0.59 in)
Through-Hole Diameter (Ø1)	9 mm (0.35 in)

Available Variants and Cross-References

Tecnoseal Code	Material	Weight	Osculati Reference
00707	Zinc	0.95 kg (2.09 lbs)	—
00707AL	Aluminium	0.37 kg (0.82 lbs)	43.550.01
00707MG	Magnesium	0.24 kg (0.53 lbs)	43.550.02

Product Codes and EAN

Tecnoseal Code	EAN
00707	8033837063834
00707AL	8059617814991
00707MG	8059617815004

Compatibility and References

Compatible Manufacturer: Volvo Penta
Compatible Outdrives: AQ 200, 250, 270, 275, 280, 285
Volvo Penta OEM Reference: 832598
Zinc Version: Tecnoseal 00707
Aluminium Version: Tecnoseal 00707AL / Osculati 43.550.01
Magnesium Version: Tecnoseal 00707MG / Osculati 43.550.02

Key Features

Sacrificial transom bar anode for compatible Volvo Penta AQ outdrives.
Available in zinc, aluminium and magnesium.
Helps protect submerged metallic transom and outdrive components against galvanic corrosion.
Elongated bar-shaped body with two mounting holes.
Overall length: 188 mm.
Width: 41 mm.
Height: 22 mm.
Mounting hole spacing: 145 mm.
Counterbore diameter: 15 mm.
Through-hole diameter: 9 mm.
Identical dimensions across all three material versions.
Volvo Penta OEM reference: 832598.
Osculati cross-references: 43.550.01 (aluminium) and 43.550.02 (magnesium).

Compatibility Note: Verify the OEM reference, mounting hole spacing and dimensions against the existing transom anode before ordering.
