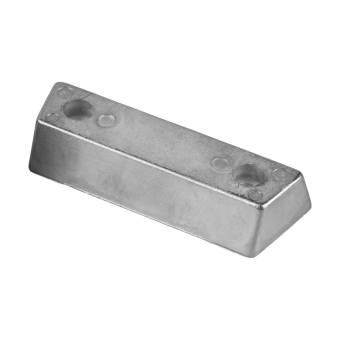

Tecnoseal 832835 Volvo Penta AQ 280-290 SP Transom Bar Anode 132 mm

ID 1405218

$ 46.57

1-2 weeks delivery time

Type:

Zinc
Magnesium
Aluminium

Item:

300 g
190 g
760 g

The Tecnoseal 00708 series includes sacrificial transom bar anodes compatible with Volvo Penta AQ 280-290 and SP outdrives, corresponding to OEM part number 852835. Each anode features a rectangular, slightly tapered body with two recessed mounting holes and measures 132 mm in overall length (l), 46 mm in width (a) and 25 mm in height (h). The mounting hole spacing (i) is 86 mm, with an 8.50 mm through-hole diameter (Ø) and 14 mm counterbore diameter (Ø1). Available in zinc (00708, 760 g), aluminium (00708AL, 300 g) and magnesium (00708MG, 190 g), these anodes provide sacrificial corrosion protection for compatible Volvo Penta transom and outdrive components. All three versions share identical dimensions.

Description
Ask a Question

Tecnoseal 852835 Volvo Penta AQ 280-290 SP Transom Bar Anode 132 mm

The Tecnoseal 00708 series includes sacrificial transom bar anodes compatible with Volvo Penta AQ 280-290 and SP outdrives. Corresponding to Volvo Penta OEM part number 852835, these anodes help protect compatible metallic transom and outdrive components against galvanic corrosion. The zinc, aluminium and magnesium versions are cross-referenced with Osculati part numbers 43.551.00, 43.551.10 and 43.551.11, respectively.

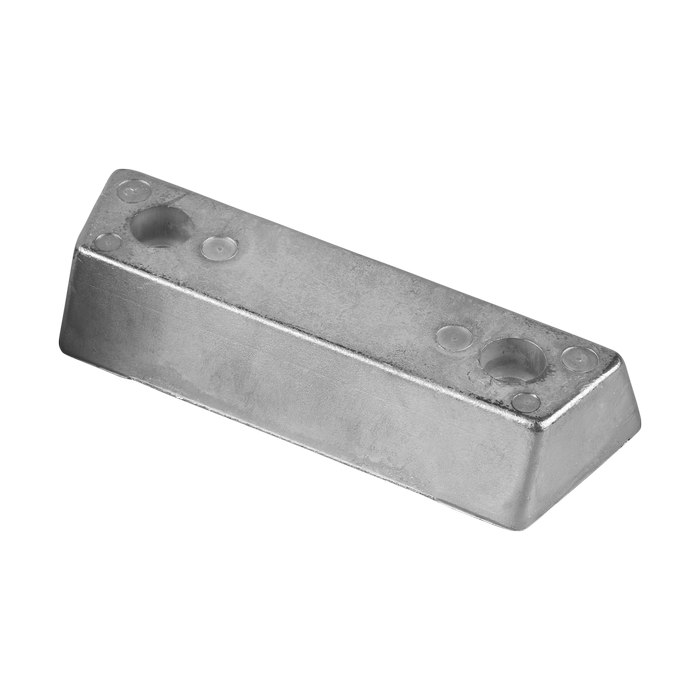

Each anode has an elongated, slightly tapered bar-shaped body with two recessed mounting holes. According to the Tecnoseal catalogue, it measures 132 mm in overall length, 46 mm in width and 25 mm in height. The mounting hole spacing (i) is 86 mm, with an 8.50 mm through-hole diameter (Ø) and a 14 mm counterbore diameter (Ø1). All three material versions share identical dimensions and mounting configurations.

Technical Specifications

Manufacturer	Tecnoseal
Product Type	Transom Bar Anode
Compatible Manufacturer	Volvo Penta
Compatible Outdrives	AQ 280-290, SP
Volvo Penta OEM Reference	852835
Available Materials	Zinc, Aluminium, Magnesium
Overall Length (l)	132 mm (5.20 in)
Width (a)	46 mm (1.81 in)
Height (h)	25 mm (0.98 in)
Mounting Hole Spacing (i)	86 mm (3.39 in)
Through-Hole Diameter (Ø)	8.50 mm (0.33 in)
Counterbore Diameter (Ø1)	14 mm (0.55 in)

Available Variants and Cross-References

Tecnoseal Code	Material	Weight	Osculati Reference
00708	Zinc	0.76 kg (1.68 lbs)	43.551.00
00708AL	Aluminium	0.30 kg (0.66 lbs)	43.551.10
00708MG	Magnesium	0.19 kg (0.42 lbs)	43.551.11

Product Codes and EAN

Tecnoseal Code	EAN
00708	8033837063841
00708AL	8059617815011
00708MG	8059617815028

Compatibility and References

Compatible Manufacturer: Volvo Penta
Compatible Outdrives: AQ 280-290, SP
Volvo Penta OEM Reference: 852835
Zinc Version: Tecnoseal 00708 / Osculati 43.551.00
Aluminium Version: Tecnoseal 00708AL / Osculati 43.551.10
Magnesium Version: Tecnoseal 00708MG / Osculati 43.551.11

Key Features

Sacrificial transom bar anode compatible with Volvo Penta AQ 280-290 and SP outdrives.
Available in zinc, aluminium and magnesium.
Helps protect compatible metallic transom and outdrive components against galvanic corrosion.
Elongated, slightly tapered body with two recessed mounting holes.
Overall length: 132 mm.
Width: 46 mm.
Height: 25 mm.
Mounting hole spacing: 86 mm.
Through-hole diameter: 8.50 mm.
Counterbore diameter: 14 mm.
Identical dimensions across all three material versions.
Volvo Penta OEM reference: 852835.
Osculati cross-references: 43.551.00 (zinc), 43.551.10 (aluminium) and 43.551.11 (magnesium).

Compatibility Note: Verify the OEM reference, mounting hole spacing and dimensions against the existing transom anode before ordering.
