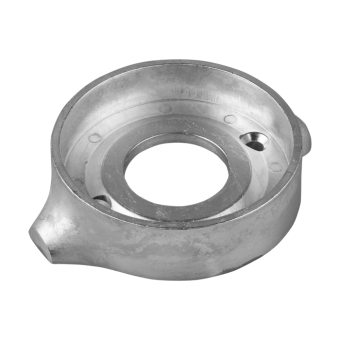

Tecnoseal 851983 / 876286 Volvo Penta 120S Saildrive Ring Anode Ø97 mm

ID 1405205

$ 45.70

1-2 weeks delivery time

Type:

Zinc
Magnesium
Aluminium

Item:

530 g
130 g
210 g

The Tecnoseal 00706 series includes sacrificial ring anodes compatible with Volvo Penta 120S saildrives, corresponding to OEM part numbers 851983 and 876286. Each anode features a circular collar-shaped body with projecting mounting sections, measuring 122 mm in overall length (l), 27 mm in height (h), 72 mm in catalogue dimension (i), 97 mm in outer diameter (Ø), 40 mm in central opening diameter (Ø1), 88 mm in diameter (Ø2), 59 mm in diameter (Ø3) and 7 mm in mounting hole diameter (Ø4). Available in zinc (00706, 530 g), aluminium (00706AL, 210 g) and magnesium (00706MG, 130 g), these anodes help protect compatible submerged saildrive components against galvanic corrosion. All three versions share identical dimensions.

Description
Ask a Question

Tecnoseal 851983 / 876286 Volvo Penta 120S Saildrive Ring Anode Ø97 mm

The Tecnoseal 00706 series includes sacrificial ring anodes designed for compatibility with Volvo Penta 120S saildrives. These anodes correspond to Volvo Penta OEM part numbers 851983 and 876286 and help protect compatible submerged metallic saildrive components against galvanic corrosion. The zinc, aluminium and magnesium versions are cross-referenced with Osculati part numbers 43.529.00, 43.529.10 and 43.529.11, respectively.

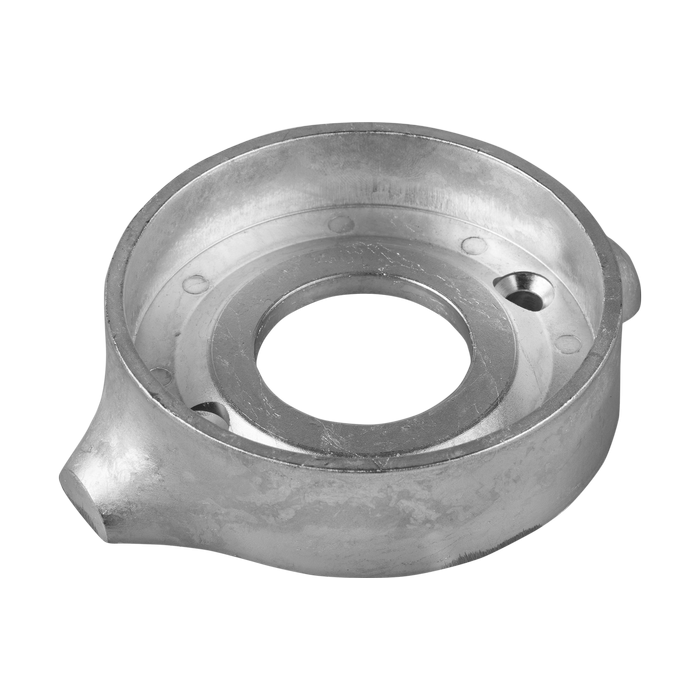

Each anode features a circular collar-shaped body with a central opening and projecting mounting sections. According to the Tecnoseal catalogue, it measures 122 mm in overall length, 27 mm in height and 97 mm in outer diameter. The central opening diameter is 40 mm, with additional diameters of 88 mm (Ø2) and 59 mm (Ø3). The mounting hole diameter (Ø4) is 7 mm, while the additional catalogue dimension (i) measures 72 mm. Zinc, aluminium and magnesium versions share identical dimensions and mounting geometry.

Technical Specifications

Manufacturer	Tecnoseal
Product Type	Saildrive Ring Anode
Compatible Manufacturer	Volvo Penta
Compatible Saildrive	120S
Volvo Penta OEM References	851983, 876286
Available Materials	Zinc, Aluminium, Magnesium
Overall Length (l)	122 mm (4.80 in)
Height (h)	27 mm (1.06 in)
Dimension (i)	72 mm (2.83 in)
Outer Diameter (Ø)	97 mm (3.82 in)
Central Opening Diameter (Ø1)	40 mm (1.57 in)
Diameter (Ø2)	88 mm (3.46 in)
Diameter (Ø3)	59 mm (2.32 in)
Mounting Hole Diameter (Ø4)	7 mm (0.28 in)

Available Variants and Cross-References

Tecnoseal Code	Material	Weight	Osculati Reference
00706	Zinc	0.53 kg (1.17 lbs)	43.529.00
00706AL	Aluminium	0.21 kg (0.46 lbs)	43.529.10
00706MG	Magnesium	0.13 kg (0.29 lbs)	43.529.11

Product Codes and EAN

Tecnoseal Code	EAN
00706	8033837063827
00706AL	8059617814977
00706MG	8059617814984

Compatibility and References

Compatible Manufacturer: Volvo Penta
Compatible Saildrive: 120S
Application: Saildrive Corrosion Protection
Volvo Penta OEM References: 851983, 876286
Zinc Version: Tecnoseal 00706 / Osculati 43.529.00
Aluminium Version: Tecnoseal 00706AL / Osculati 43.529.10
Magnesium Version: Tecnoseal 00706MG / Osculati 43.529.11

Key Features

Sacrificial ring anode compatible with Volvo Penta 120S saildrives.
Available in zinc, aluminium and magnesium.
Helps protect compatible submerged metallic saildrive components against galvanic corrosion.
Circular collar-shaped body with projecting mounting sections.
Overall length: 122 mm.
Height: 27 mm.
Outer diameter: 97 mm.
Central opening diameter: 40 mm.
Additional diameters: 88 mm and 59 mm.
Mounting hole diameter: 7 mm.
Identical dimensions across all three material versions.
Volvo Penta OEM references: 851983 and 876286.
Osculati cross-references: 43.529.00 (zinc), 43.529.10 (aluminium) and 43.529.11 (magnesium).

Compatibility Note: Verify the OEM reference and installation dimensions against the existing saildrive anode before ordering.
