ID
1405181
$ 26.23
1-2 weeks delivery time
Type:
- Zinc
- Magnesium
- Aluminium
Item:
- 80 g
- 50 g
- 200 g
The Tecnoseal 00700 series includes sacrificial outdrive ring anodes compatible with Volvo Penta V15 and AQ 80, AQ 100, AQ 100B and AQ 100S drives, corresponding to OEM part number 875810. Each anode features a circular ring-shaped body with mounting holes, measuring 100 mm in outer diameter (Ø), 52 mm in central opening diameter (Ø1), 92 mm in mounting diameter (Ø2) and 10 mm in mounting hole diameter (Ø3). The anode is 12 mm high (h), with an additional catalogue dimension (i) of 70 mm. Available in zinc (00700, 200 g), aluminium (00700AL, 80 g) and magnesium (00700MG, 50 g), these anodes help protect compatible outdrive components against galvanic corrosion.
- Description
- Ask a Question
-

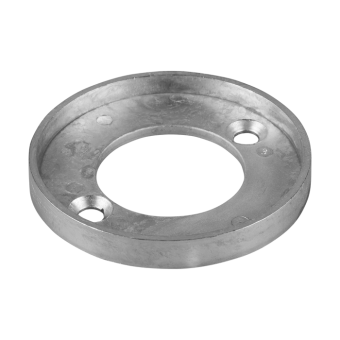

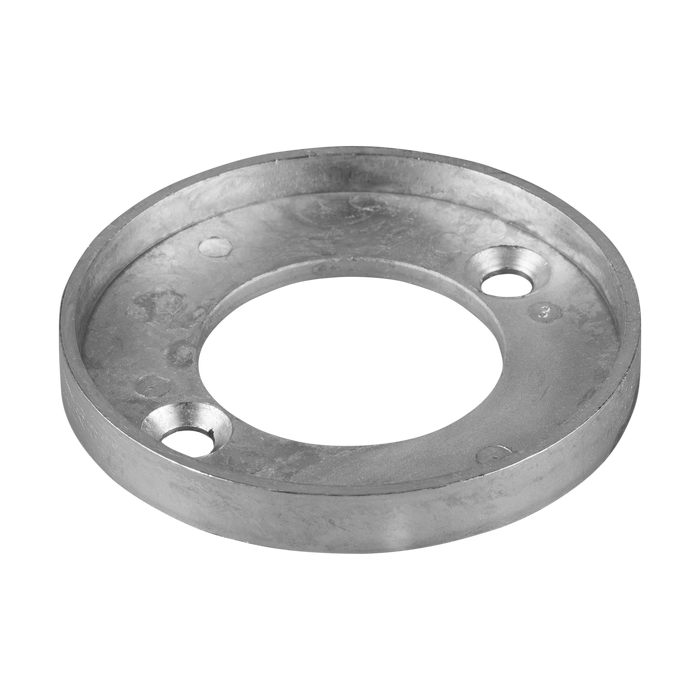

Tecnoseal 875810 Volvo Penta AQ 80-100 Outdrive Ring Anode Ø100 mm
The Tecnoseal 00700 series includes sacrificial outdrive ring anodes designed for compatibility with Volvo Penta V15, AQ 80, AQ 100, AQ 100B and AQ 100S drives. These anodes correspond to Volvo Penta OEM part number 875810 and help protect compatible submerged metallic outdrive components against galvanic corrosion.
Each anode features a circular ring-shaped body with a central opening and mounting holes. According to the Tecnoseal catalogue, it measures 100 mm in outer diameter, 52 mm in central opening diameter and 12 mm in height. The mounting diameter is 92 mm, with 10 mm mounting holes. The additional dimension (i) measures 70 mm. Three material versions are available: zinc, aluminium and magnesium, all sharing identical dimensions.
Technical Specifications
Manufacturer Tecnoseal Product Type Outdrive Ring Anode Compatible Manufacturer Volvo Penta Compatible Models V15, AQ 80, AQ 100, AQ 100B, AQ 100S Volvo Penta OEM Reference 875810 Available Materials Zinc, Aluminium, Magnesium Height (h) 12 mm (0.47 in) Dimension (i) 70 mm (2.76 in) Outer Diameter (Ø) 100 mm (3.94 in) Central Opening Diameter (Ø1) 52 mm (2.05 in) Mounting Diameter (Ø2) 92 mm (3.62 in) Mounting Hole Diameter (Ø3) 10 mm (0.39 in)
Available Variants
Tecnoseal Code Material Weight EAN 00700 Zinc 0.20 kg (0.44 lbs) 8033837063766 00700AL Aluminium 0.08 kg (0.18 lbs) 8059617814854 00700MG Magnesium 0.05 kg (0.11 lbs) 8059617814861
Compatibility and References
- Compatible Manufacturer: Volvo Penta
- Compatible Drives: V15, AQ 80, AQ 100, AQ 100B, AQ 100S
- Application: Outdrive Corrosion Protection
- Volvo Penta OEM Reference: 875810
- Zinc Version: Tecnoseal 00700
- Aluminium Version: Tecnoseal 00700AL
- Magnesium Version: Tecnoseal 00700MG
Key Features
- Sacrificial ring anode compatible with specified Volvo Penta outdrives.
- Available in zinc, aluminium and magnesium.
- Helps protect compatible submerged metallic outdrive components against galvanic corrosion.
- Circular ring-shaped body with central opening and mounting holes.
- Outer diameter: 100 mm.
- Central opening diameter: 52 mm.
- Mounting diameter: 92 mm.
- Mounting hole diameter: 10 mm.
- Height: 12 mm.
- Identical dimensions across all three material versions.
- Corresponds to Volvo Penta OEM part number 875810.
-
