The Tecnoseal 00822 Series is a sacrificial bar anode designed for Mercury 30–50 HP outboard motors, corresponding to OEM part number 825271 and catalogue cross-reference 01126. Available in zinc (00822) and magnesium (00822MG), it helps protect compatible outboard components against galvanic corrosion. The anode features a straight rectangular bar with two mounting openings and measures 194 mm (7.64") in length, 19 mm (0.75") in width and 12 mm (0.47") in height. Additional catalogue dimensions include mounting distance (i) of 166 mm (6.54"), hole diameter (Ø) of 7 mm (0.28") and dimension (b) of 14 mm (0.55"). The zinc version weighs 0.29 kg (290 g / 0.64 lbs), while the magnesium version weighs 0.07 kg (70 g / 0.15 lbs). Both versions share identical dimensions.
- Description
- Ask a Question
-

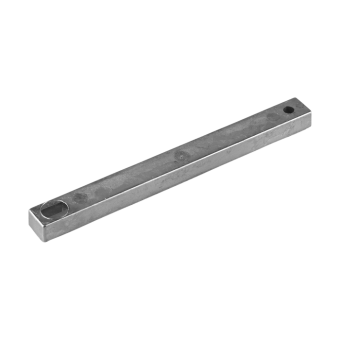

Tecnoseal 825271 Mercury 30-50 HP Outboard Bar Anode
The Tecnoseal 00822 Series consists of sacrificial bar anodes designed for Mercury outboard motors rated from 30 to 50 HP. These anodes help protect compatible metallic outboard components against galvanic corrosion. According to the Tecnoseal catalogue, the corresponding original part number is 825271, with 01126 listed as an additional catalogue cross-reference.

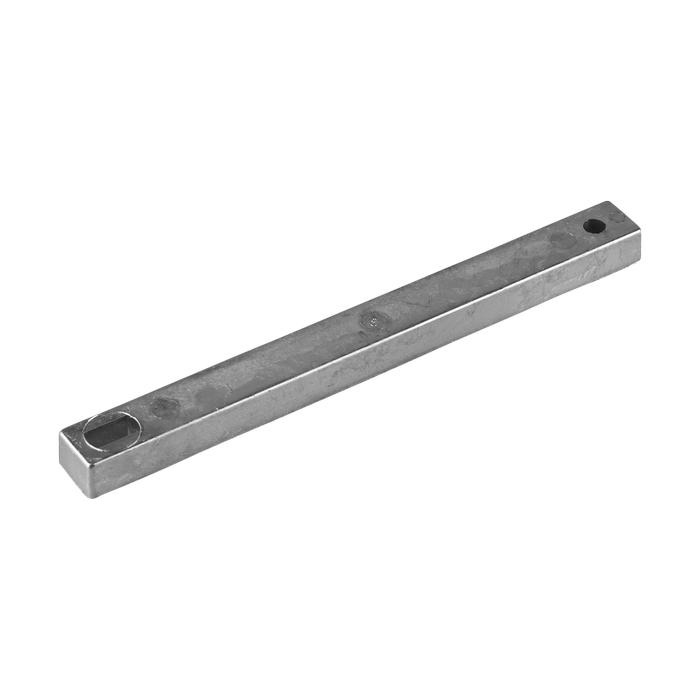

The anode features a straight rectangular bar with two mounting openings. It measures 194 mm (7.64") in overall length, 19 mm (0.75") in width and 12 mm (0.47") in height. The mounting distance (i) is 166 mm (6.54"), the mounting hole diameter (Ø) is 7 mm (0.28") and the additional dimension (b) is 14 mm (0.55"). Two material versions are available: zinc and magnesium. Both share identical dimensions but differ in weight.
Technical Specifications
Manufacturer Tecnoseal Product Series 00822 Product Type Outboard Bar Anode Application Mercury 30-50 HP Outboard Motors OEM Part Number 825271 Additional Catalogue Reference 01126 Available Materials Zinc, Magnesium Mounting Hole Diameter 7 mm
Available Versions
Tecnoseal Part Number Material Weight 00822 (Osculati 43.252.71) Zinc 0.29 kg (0.64 lbs) 00822MG Magnesium 0.07 kg (0.15 lbs)
Dimensions and Mounting
Catalogue Dimension Measurement Length (l) 194 mm (7.64") Width (a) 19 mm (0.75") Height (h) 12 mm (0.47") Mounting Distance (i) 166 mm (6.54") Mounting Hole Diameter (Ø) 7 mm (0.28") Dimension (b) 14 mm (0.55")
Product Configurations
Tecnoseal 00822 – Zinc Mercury Outboard Bar Anode
- Material: Zinc
- Weight: 0.29 kg (0.64 lbs)
- Length: 194 mm
- Width: 19 mm
- Height: 12 mm
- Mounting Distance: 166 mm
- Mounting Hole Diameter: 7 mm
- Dimension b: 14 mm
- OEM Reference: 825271
Tecnoseal 00822MG – Magnesium Mercury Outboard Bar Anode
- Material: Magnesium
- Weight: 0.07 kg (0.15 lbs)
- Length: 194 mm
- Width: 19 mm
- Height: 12 mm
- Mounting Distance: 166 mm
- Mounting Hole Diameter: 7 mm
- Dimension b: 14 mm
- OEM Reference: 825271
Engine Compatibility
- Manufacturer: Mercury
- Engine Type: Outboard Motor
- Power Range: 30-50 HP
OEM and Catalogue Cross-References
- Mercury OEM Part Number: 825271
- Additional Catalogue Reference: 01126
- Tecnoseal 00822: Zinc version
- Tecnoseal 00822MG: Magnesium version
Key Features
- Bar anode designed for Mercury 30-50 HP outboard motors.
- Corresponds to Mercury OEM part number 825271.
- Additional catalogue cross-reference: 01126.
- Available in zinc and magnesium versions.
- Straight rectangular design with two mounting openings.
- Helps protect compatible outboard components against galvanic corrosion.
- Overall length: 194 mm.
- Width: 19 mm.
- Height: 12 mm.
- Mounting distance: 166 mm.
- Mounting hole diameter: 7 mm.
- Additional dimension b: 14 mm.
- Identical dimensions for both material versions.
- Zinc: Tecnoseal 00822, weight 290 g.
- Magnesium: Tecnoseal 00822MG, weight 70 g.
-
