ID
1404528
$ 61.92
1-2 weeks delivery time
Type:
- Zinc
- Magnesium
- Aluminium
Item:
- 420 g
- 170 g
- 110 g
The Tecnoseal 00829 Series is a sacrificial standard trim tab anode designed for Mercury 25-50 HP outboard motors, corresponding to OEM part number 822157C2. Available in zinc (00829), aluminium (00829AL) and magnesium (00829MG), it helps protect compatible outboard components against galvanic corrosion. The anode features a circular base with an integrated trim fin and central mounting hole. Its dimensions are 93 mm (3.66") in base diameter, 70 mm (2.76") in overall height and 13 mm (0.51") in base height, with additional diameters Ø1 = 24 mm (0.94") and Ø2 = 9 mm (0.35"). The zinc version weighs 0.42 kg (420 g / 0.93 lbs), aluminium 0.17 kg (170 g / 0.37 lbs) and magnesium 0.11 kg (110 g / 0.24 lbs). All three versions share identical dimensions.
- Description
- Ask a Question
-

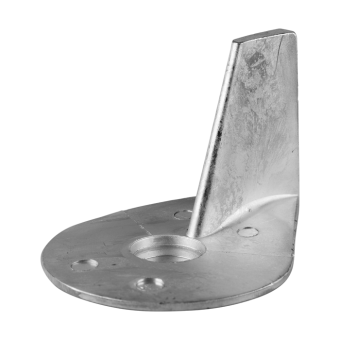

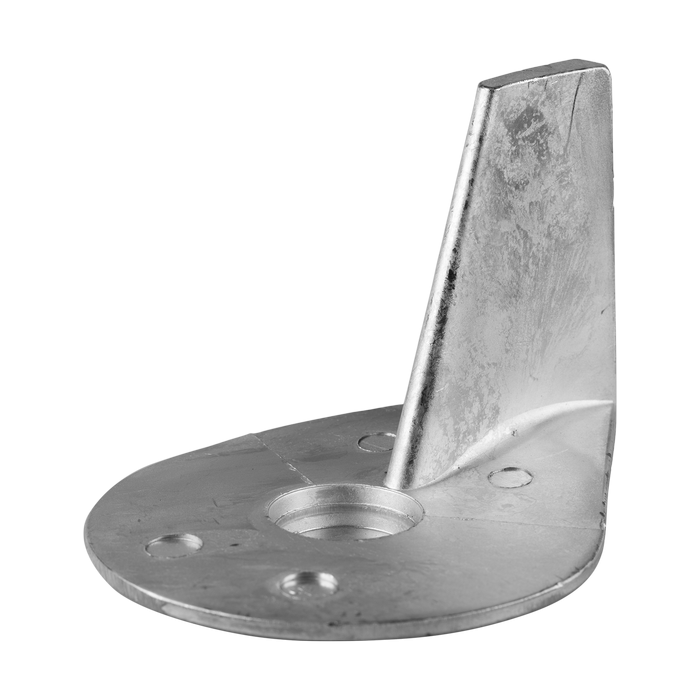

Tecnoseal 822157C2 Mercury 25-50 HP Standard Trim Tab Anode
The Tecnoseal 00829 Series consists of sacrificial standard trim tab anodes designed for Mercury outboard motors rated from 25 to 50 HP. These anodes help protect compatible metallic outboard components against galvanic corrosion. The corresponding Mercury original part number is 822157C2.
The anode features a circular base with an integrated trim fin and central mounting hole. It measures 93 mm (3.66") in base diameter, 70 mm (2.76") in overall height and 13 mm (0.51") in base height. Additional catalogue diameters are Ø1 = 24 mm (0.94") and Ø2 = 9 mm (0.35"). Three material versions are available: zinc, aluminium and magnesium. All versions share identical dimensions but differ in weight.
Technical Specifications
Manufacturer Tecnoseal Product Series 00829 Product Type Standard Trim Tab Anode Application Mercury 25-50 HP Outboard Motors OEM Part Number 822157C2 Available Materials Zinc, Aluminium, Magnesium Base Diameter 93 mm Overall Height 70 mm
Available Versions and Osculati Cross-References
Tecnoseal Part Number Material Osculati Reference Weight 00829 Zinc 43.822.15 0.42 kg (0.93 lbs) 00829AL Aluminium 43.822.16 0.17 kg (0.37 lbs) 00829MG Magnesium 43.822.17 0.11 kg (0.24 lbs)
Dimensions and Mounting
Catalogue Dimension Measurement Overall Height (h) 70 mm (2.76") Base Height (h1) 13 mm (0.51") Base Diameter (Ø) 93 mm (3.66") Diameter (Ø1) 24 mm (0.94") Diameter (Ø2) 9 mm (0.35")
Product Configurations
Tecnoseal 00829 – Zinc Mercury Standard Trim Tab Anode
- Material: Zinc
- Weight: 0.42 kg (0.93 lbs)
- Base Diameter: 93 mm
- Overall Height: 70 mm
- Base Height: 13 mm
- Additional Diameters: Ø1 = 24 mm, Ø2 = 9 mm
- OEM Reference: 822157C2
- Osculati Reference: 43.822.15
Tecnoseal 00829AL – Aluminium Mercury Standard Trim Tab Anode
- Material: Aluminium
- Weight: 0.17 kg (0.37 lbs)
- Base Diameter: 93 mm
- Overall Height: 70 mm
- Base Height: 13 mm
- Additional Diameters: Ø1 = 24 mm, Ø2 = 9 mm
- OEM Reference: 822157C2
- Osculati Reference: 43.822.16
Tecnoseal 00829MG – Magnesium Mercury Standard Trim Tab Anode
- Material: Magnesium
- Weight: 0.11 kg (0.24 lbs)
- Base Diameter: 93 mm
- Overall Height: 70 mm
- Base Height: 13 mm
- Additional Diameters: Ø1 = 24 mm, Ø2 = 9 mm
- OEM Reference: 822157C2
- Osculati Reference: 43.822.17
Engine Compatibility
- Manufacturer: Mercury
- Engine Type: Outboard Motor
- Power Range: 25-50 HP
- Product Application: Standard Trim Tab Anode
OEM and Catalogue Cross-References
- Mercury OEM Part Number: 822157C2
- Tecnoseal 00829 (Zinc): Osculati 43.822.15
- Tecnoseal 00829AL (Aluminium): Osculati 43.822.16
- Tecnoseal 00829MG (Magnesium): Osculati 43.822.17
Key Features
- Standard trim tab anode for Mercury 25-50 HP outboard motors.
- Corresponds to Mercury OEM part number 822157C2.
- Available in zinc, aluminium and magnesium versions.
- Circular base with integrated trim fin and central mounting hole.
- Helps protect compatible outboard components against galvanic corrosion.
- Base diameter: 93 mm.
- Overall height: 70 mm.
- Base height: 13 mm.
- Additional diameters: Ø1 = 24 mm, Ø2 = 9 mm.
- Identical dimensions for all three material versions.
- Zinc: Tecnoseal 00829 / Osculati 43.822.15 / 420 g.
- Aluminium: Tecnoseal 00829AL / Osculati 43.822.16 / 170 g.
- Magnesium: Tecnoseal 00829MG / Osculati 43.822.17 / 110 g.
-
