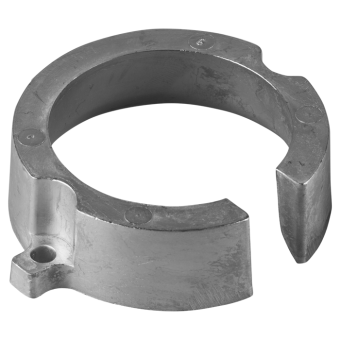

Tecnoseal 806188 Mercruiser Bravo One Bearing Carrier Anode

ID 1404524

$ 57.21

1-2 weeks delivery time

Type:

Zinc
Magnesium
Aluminium

Item:

170 g
40 g
70 g

The Tecnoseal 00828 Series is a sacrificial bearing carrier anode designed for Mercruiser Bravo One sterndrives, corresponding to OEM part number 806188. Available in zinc (00828), aluminium (00828AL) and magnesium (00828MG), it helps protect the bearing carrier and associated submerged components against galvanic corrosion. The anode features an open circular collar with mounting tabs and measures 88 mm (3.46") in overall length (l), 22 mm (0.87") in height (h) and 74 mm (2.91") in dimension (i). Additional diameters are Ø = 54 mm (2.13"), Ø1 = 70 mm (2.76") and Ø2 = 5.50 mm (0.22"). The zinc version weighs 0.17 kg (170 g / 0.37 lbs), aluminium 0.07 kg (70 g / 0.15 lbs) and magnesium 0.04 kg (40 g / 0.09 lbs). All three versions share identical dimensions.

Description
Ask a Question

Tecnoseal 806188 Mercruiser Bravo One Bearing Carrier Anode

The Tecnoseal 00828 Series consists of sacrificial bearing carrier anodes designed for Mercruiser Bravo One sterndrives. These anodes help protect the bearing carrier and associated submerged metallic components against galvanic corrosion. The corresponding original part number is 806188.

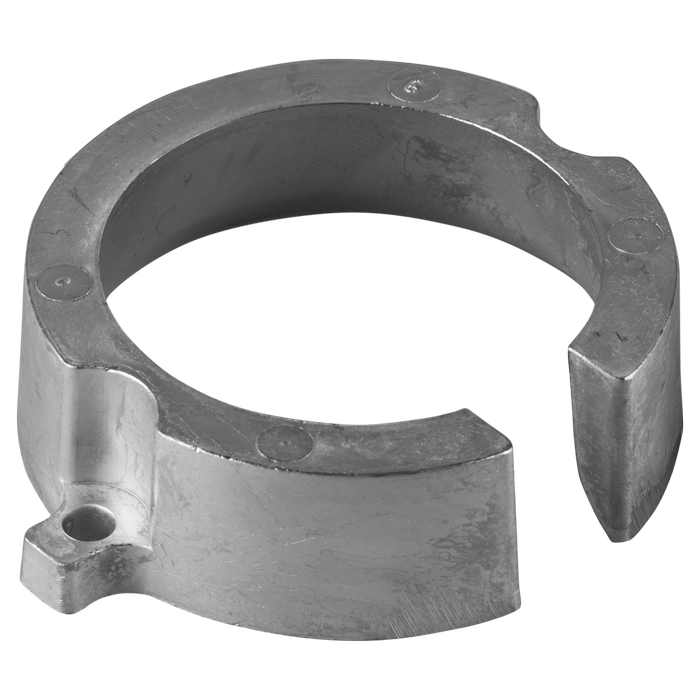

The anode features an open circular collar with mounting tabs and fastening holes. It measures 88 mm (3.46") in overall length, 22 mm (0.87") in height and 74 mm (2.91") in dimension i. Additional diameters are Ø = 54 mm (2.13"), Ø1 = 70 mm (2.76") and Ø2 = 5.50 mm (0.22"). Three material versions are available: zinc, aluminium and magnesium. All share identical dimensions.

Technical Specifications

Manufacturer	Tecnoseal
Product Series	00828
Product Type	Bearing Carrier Anode
Application	Mercruiser Bravo One Sterndrive
OEM Part Number	806188
Available Materials	Zinc, Aluminium, Magnesium
Construction	Open Circular Collar with Mounting Tabs

Available Versions and Osculati Cross-References

Tecnoseal Part Number	Material	Osculati Reference	Weight
00828	Zinc	43.806.18	0.17 kg (0.37 lbs)
00828AL	Aluminium	43.806.19	0.07 kg (0.15 lbs)
00828MG	Magnesium	43.806.20	0.04 kg (0.09 lbs)

Dimensions and Mounting

Catalogue Dimension	Measurement
Overall Length (l)	88 mm (3.46")
Height (h)	22 mm (0.87")
Dimension (i)	74 mm (2.91")
Diameter (Ø)	54 mm (2.13")
Diameter (Ø1)	70 mm (2.76")
Mounting Hole Diameter (Ø2)	5.50 mm (0.22")
