Tecnoseal 17264 Mercury 50-75 HP Standard Trim Tab Anode

ID 1404520

$ 51.86

1-2 weeks delivery time

Type:

Zinc
Magnesium
Aluminium

Item:

120 g
180 g
480 g

The Tecnoseal 00827 Series is a sacrificial standard trim tab anode designed for Mercury 50-75 HP outboard motors, corresponding to OEM part number 17264. Available in zinc (00827), aluminium (00827AL) and magnesium (00827MG), it helps protect compatible outboard components against galvanic corrosion. The anode features a circular base with an integrated trim fin and a central mounting hole. It measures 103 mm (4.06") in base diameter (Ø), 58 mm (2.28") in overall height (h) and 14 mm (0.55") in base height (h1), with additional diameters Ø1 = 26 mm (1.02") and Ø2 = 13 mm (0.51"). The zinc version weighs 0.48 kg (480 g / 1.06 lbs), aluminium 0.18 kg (180 g / 0.40 lbs) and magnesium 0.12 kg (120 g / 0.26 lbs). All three versions share identical dimensions.

Description
Ask a Question

Tecnoseal 17264 Mercury 50-75 HP Standard Trim Tab Anode

The Tecnoseal 00827 Series consists of sacrificial standard trim tab anodes designed for Mercury outboard motors rated from 50 to 75 HP. These anodes help protect compatible metallic outboard components against galvanic corrosion. According to the Tecnoseal catalogue, the corresponding original part number is 17264.

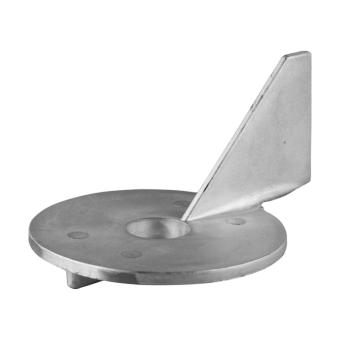

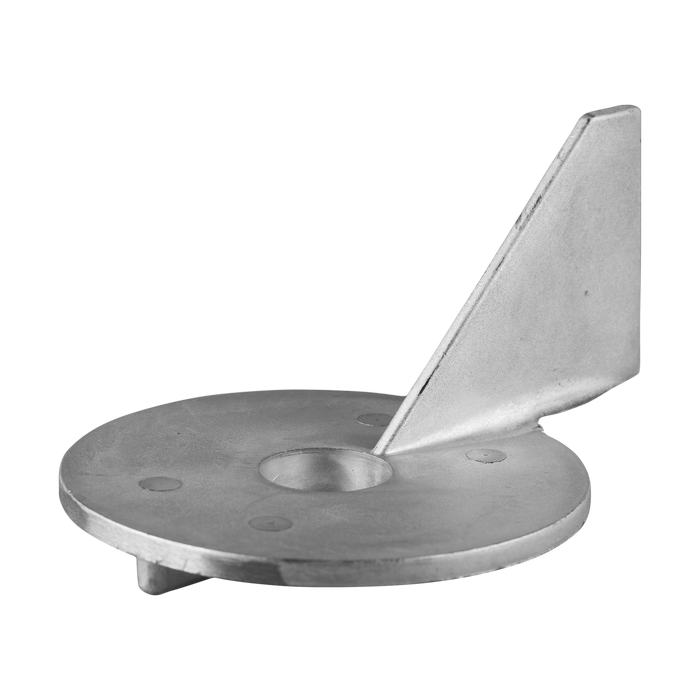

The anode features a circular base with an integrated trim fin and a central mounting hole. Its base diameter (Ø) is 103 mm (4.06"), overall height (h) is 58 mm (2.28") and base height (h1) is 14 mm (0.55"). Additional catalogue diameters are Ø1 = 26 mm (1.02") and Ø2 = 13 mm (0.51"). Three material versions are available: zinc, aluminium and magnesium. All versions share identical dimensions but differ in weight.

Technical Specifications

Manufacturer	Tecnoseal
Product Series	00827
Product Type	Standard Trim Tab Anode
Application	Mercury 50-75 HP Outboard Motors
OEM Part Number	17264
Available Materials	Zinc, Aluminium, Magnesium
Base Diameter	103 mm
Overall Height	58 mm
