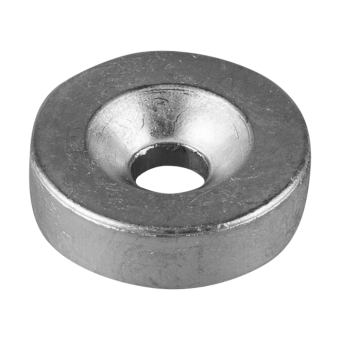

Tecnoseal 823913 Mercury 2.2-3.3 HP Button Anode for Trim Tab Ø24 mm

ID 1404509

$ 15.96

1-2 weeks delivery time

Type:

Zinc
Magnesium
Aluminium

Item:

20 g
5 g
8 g

The Tecnoseal 00824 Series is a sacrificial button anode designed for Mercury 2.2–3.3 HP outboard motors, corresponding to OEM part number 823913. Available in zinc (00824), aluminium (00824AL) and magnesium (00824MG), it helps protect compatible marine engine components against galvanic corrosion. The anode features a circular washer-shaped body with a countersunk central mounting hole, measuring 24 mm (0.94") in outside diameter, 7 mm (0.28") in height and 7 mm (0.28") in mounting hole diameter. The zinc version weighs 0.020 kg (20 g), aluminium 0.008 kg (8 g) and magnesium 0.005 kg (5 g). Additional catalogue cross-references include 01109, 01128, 01251, 01258, 01400 and 01756. All three versions share identical dimensions.

Description
Ask a Question

Tecnoseal 823913 Mercury 2.2-3.3 HP Button Anode for Trim Tab Ø24 mm

The Tecnoseal 00824 Series consists of sacrificial button anodes designed for Mercury 2.2-3.3 HP outboard motors. These compact washer-shaped anodes help protect compatible metallic engine components against galvanic corrosion. According to the Tecnoseal catalogue, the corresponding original part number is 823913.

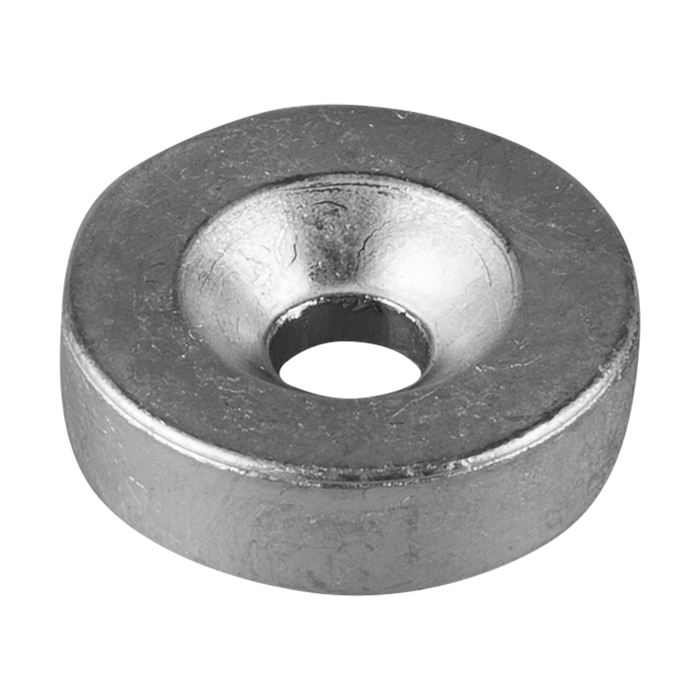

The anode features a circular body with a central countersunk mounting hole. It measures 24 mm (0.94") in outside diameter, 7 mm (0.28") in height and 7 mm (0.28") in mounting hole diameter. Three material versions are available: zinc, aluminium and magnesium. All versions have identical dimensions but differ in weight.

Technical Specifications

Manufacturer	Tecnoseal
Product Series	00824
Product Type	Button Anode for Trim Tab
Application	Mercury 2.2-3.3 HP Outboard Motors
OEM Part Number	823913
Available Materials	Zinc, Aluminium, Magnesium
Outside Diameter	24 mm
Mounting Hole Diameter	7 mm

Available Versions and Osculati Cross-References

Tecnoseal Part Number	Material	Osculati Reference	Weight
00824	Zinc	43.239.13	0.020 kg (0.04 lbs)
00824AL	Aluminium	43.239.14	0.008 kg (0.02 lbs)
00824MG	Magnesium	43.239.15	0.005 kg (0.01 lbs)

Dimensions and Mounting

Catalogue Dimension	Measurement
Height (h)	7 mm (0.28")
Outside Diameter (Ø)	24 mm (0.94")
Mounting Hole Diameter (Ø1)	7 mm (0.28")

Product Configurations

Tecnoseal 00824 – Zinc Mercury Button Anode

Material: Zinc
Weight: 0.020 kg (20 g)
Outside Diameter: 24 mm
Height: 7 mm
Mounting Hole Diameter: 7 mm
OEM Reference: 823913
Osculati Reference: 43.239.13

Tecnoseal 00824AL – Aluminium Mercury Button Anode

Material: Aluminium
Weight: 0.008 kg (8 g)
Outside Diameter: 24 mm
Height: 7 mm
Mounting Hole Diameter: 7 mm
OEM Reference: 823913
Osculati Reference: 43.239.14

Tecnoseal 00824MG – Magnesium Mercury Button Anode

Material: Magnesium
Weight: 0.005 kg (5 g)
Outside Diameter: 24 mm
Height: 7 mm
Mounting Hole Diameter: 7 mm
OEM Reference: 823913
Osculati Reference: 43.239.15

Engine Compatibility

Manufacturer: Mercury
Engine Type: Outboard Motor
Power Range: 2.2-3.3 HP
Product Application: Trim Tab Anode

OEM and Catalogue Cross-References

Mercury OEM Part Number: 823913
Additional Catalogue References: 01109, 01128, 01251, 01258, 01400, 01756
Tecnoseal 00824 (Zinc): Osculati 43.239.13
Tecnoseal 00824AL (Aluminium): Osculati 43.239.14
Tecnoseal 00824MG (Magnesium): Osculati 43.239.15

Key Features

Button anode for Mercury 2.2-3.3 HP outboard motors.
Corresponds to Mercury OEM part number 823913.
Available in zinc, aluminium and magnesium versions.
Compact circular washer-shaped body with countersunk mounting hole.
Provides sacrificial corrosion protection for compatible marine engine components.
Outside diameter: 24 mm.
Height: 7 mm.
Mounting hole diameter: 7 mm.
Identical dimensions across all three material versions.
Zinc: Tecnoseal 00824 / Osculati 43.239.13 / 20 g.
Aluminium: Tecnoseal 00824AL / Osculati 43.239.14 / 8 g.
Magnesium: Tecnoseal 00824MG / Osculati 43.239.15 / 5 g.
