Tecnoseal 826134 Mercury/Mariner 35-300 HP Wedge Anode

Name: Tecnoseal 826134 Mercury/Mariner 35-300 HP Wedge Anode
SKU: Tecnoseal 00825

ID 1404513

$ 19.41

1-2 weeks delivery time

Type:

Zinc
Magnesium
Aluminium

Item:

250 g
60 g
90 g

The Tecnoseal 00825 Series is a sacrificial wedge anode designed for Mercury and Mariner 35-300 HP outboard motors, corresponding to OEM part number 826134 and catalogue cross-references 01129 and 01405. Each engine requires two anodes, sold individually. Available in zinc (00825), aluminium (00825AL) and magnesium (00825MG), the anodes help protect compatible outboard components against galvanic corrosion. Each anode measures 77 mm (3.03") in length, 30 mm (1.18") in width and 22 mm (0.87") in overall height, with h1 = 12 mm (0.47"), Ø = 17 mm (0.67") and Ø1 = 7 mm (0.28"). The zinc version weighs 0.25 kg (250 g / 0.55 lbs), aluminium 0.09 kg (90 g / 0.22 lbs) and magnesium 0.06 kg (60 g / 0.13 lbs). All versions have identical dimensions.

Description
Ask a Question

Tecnoseal 826134 Mercury/Mariner 35-300 HP Wedge Anode

The Tecnoseal 00825 Series consists of sacrificial wedge anodes designed for Mercury and Mariner outboard motors rated from 35 to 300 HP. These anodes help protect compatible metallic outboard components against galvanic corrosion. According to the Tecnoseal catalogue, the original part number is 826134, with 01129 and 01405 listed as additional catalogue cross-references.

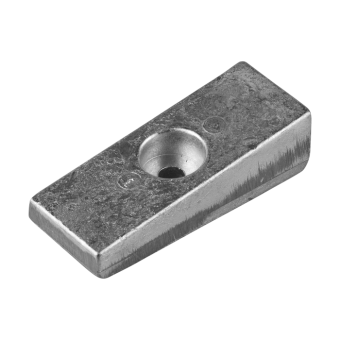

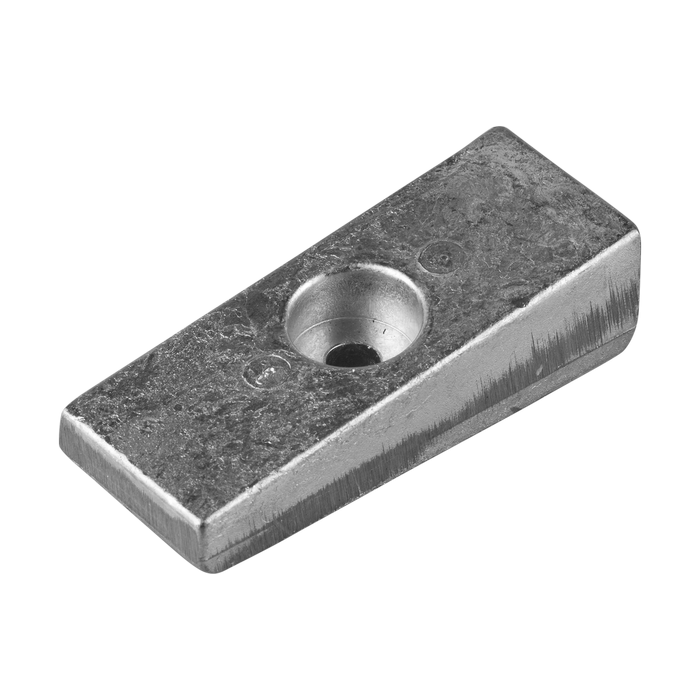

The anode features a rectangular wedge-shaped body with a central countersunk mounting hole. It measures 77 mm (3.03") in length, 30 mm (1.18") in width and 22 mm (0.87") in overall height. Additional dimensions are h1 = 12 mm (0.47"), Ø = 17 mm (0.67") and Ø1 = 7 mm (0.28"). Each engine requires two anodes, sold individually.

Technical Specifications

Manufacturer	Tecnoseal
Product Series	00825
Product Type	Wedge Anode
Application	Mercury/Mariner 35-300 HP Outboard Motors
OEM Part Number	826134
Available Materials	Zinc, Aluminium, Magnesium
Required Quantity	2 per engine
Supplied Quantity	1 anode

Available Versions and Osculati Cross-References

Tecnoseal Part Number	Material	Osculati Reference	Weight
00825	Zinc	Not specified	0.25 kg (0.55 lbs)
00825AL	Aluminium	43.424.08	0.09 kg (0.22 lbs)
00825MG	Magnesium	43.424.09	0.06 kg (0.13 lbs)

Dimensions and Mounting

Catalogue Dimension	Measurement
Length (l)	77 mm (3.03")
Width (a)	30 mm (1.18")
Overall Height (h)	22 mm (0.87")
Height (h1)	12 mm (0.47")
Countersink Diameter (Ø)	17 mm (0.67")
Mounting Hole Diameter (Ø1)	7 mm (0.28")
