Tecnoseal 76214Q5 Mercury/Mercruiser Flat Trim Tab Anode Ø113 mm

ID 1404517

$ 36.76

1-2 weeks delivery time

Type:

Zinc
Magnesium

Item:

90 g
350 g

The Tecnoseal 00826 Series is a sacrificial flat trim tab anode designed for Mercury and Mercruiser marine propulsion applications, corresponding to OEM part number 76214Q5. Available in zinc (00826) and magnesium (00826MG), it helps protect compatible submerged metallic components against galvanic corrosion. The anode features a circular flat plate with a raised central mounting section and an additional mounting hole. It measures 113 mm (4.45") in outside diameter, with plate thickness (h) of 4 mm (0.16"), overall height (h1) of 18 mm (0.71") and catalogue dimension (b) of 21 mm (0.83"). Additional diameters are Ø1 = 17 mm (0.67"), Ø2 = 11 mm (0.43") and Ø3 = 11 mm (0.43"). The zinc version weighs 0.35 kg (350 g / 0.77 lbs), while the magnesium version weighs 0.09 kg (90 g / 0.20 lbs). Both versions share identical dimensions.

Description
Ask a Question

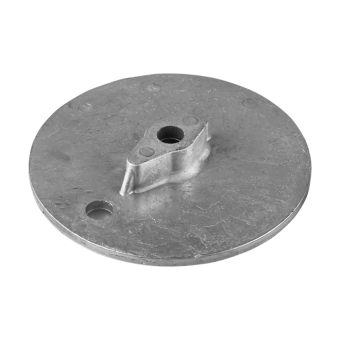

Tecnoseal 76214Q5 Mercury/Mercruiser Flat Trim Tab Anode Ø113 mm

The Tecnoseal 00826 Series consists of sacrificial flat trim tab anodes designed for Mercury and Mercruiser marine propulsion applications. These anodes help protect compatible submerged metallic components against galvanic corrosion. According to the Tecnoseal catalogue, the corresponding original part number is 76214Q5.

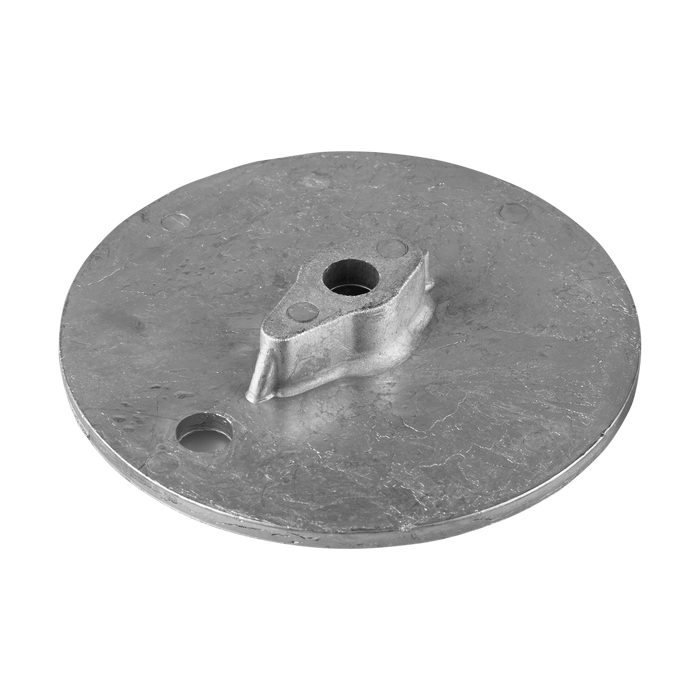

The anode features a circular flat plate with a raised central mounting section and an additional mounting hole. It measures 113 mm (4.45") in outside diameter, with plate thickness (h) of 4 mm (0.16"), overall height (h1) of 18 mm (0.71") and catalogue dimension (b) of 21 mm (0.83"). Additional diameters are Ø1 = 17 mm (0.67"), Ø2 = 11 mm (0.43") and Ø3 = 11 mm (0.43"). Two material versions are available: zinc and magnesium, sharing identical dimensions but differing in weight.

Technical Specifications

Manufacturer	Tecnoseal
Product Series	00826
Product Type	Flat Trim Tab Anode
Application	Mercury/Mercruiser Marine Propulsion Systems
OEM Part Number	76214Q5
Available Materials	Zinc, Magnesium
Outside Diameter	113 mm
Plate Thickness	4 mm

Available Versions

Tecnoseal Part Number	Material	Weight
00826	Zinc	0.35 kg (0.77 lbs)
00826MG	Magnesium	0.09 kg (0.20 lbs)

Dimensions and Mounting

Catalogue Dimension	Measurement
Outside Diameter (Ø)	113 mm (4.45")
Dimension (b)	21 mm (0.83")
Plate Thickness (h)	4 mm (0.16")
Overall Height (h1)	18 mm (0.71")
Diameter (Ø1)	17 mm (0.67")
Diameter (Ø2)	11 mm (0.43")
Diameter (Ø3)	11 mm (0.43")
