ID
1404501
$ 93.81
1-2 weeks delivery time
-
+
The Tecnoseal 00821 is a zinc sacrificial bracket handle anode designed for Mercury 150–200 HP outboard motors, corresponding to original part number 89949 and catalogue cross-reference 01125. It features a curved, bridge-shaped body with mounting flanges at both ends and helps protect compatible outboard bracket components against galvanic corrosion. The anode measures 280 mm (11.02") in overall length (l), 60 mm (2.36") in width (a), with a thickness (h) of 10 mm (0.39"), overall height (h1) of 60 mm (2.36"), dimension (i) of 30 mm (1.18") and dimension (i1) of 240 mm (9.45"). It weighs 1.20 kg (2.65 lbs).
- Description
- Ask a Question
-

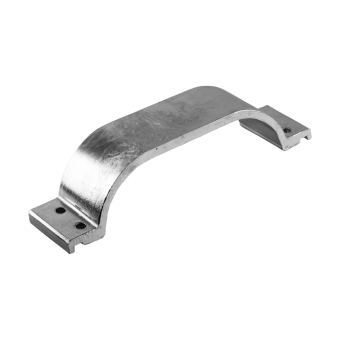

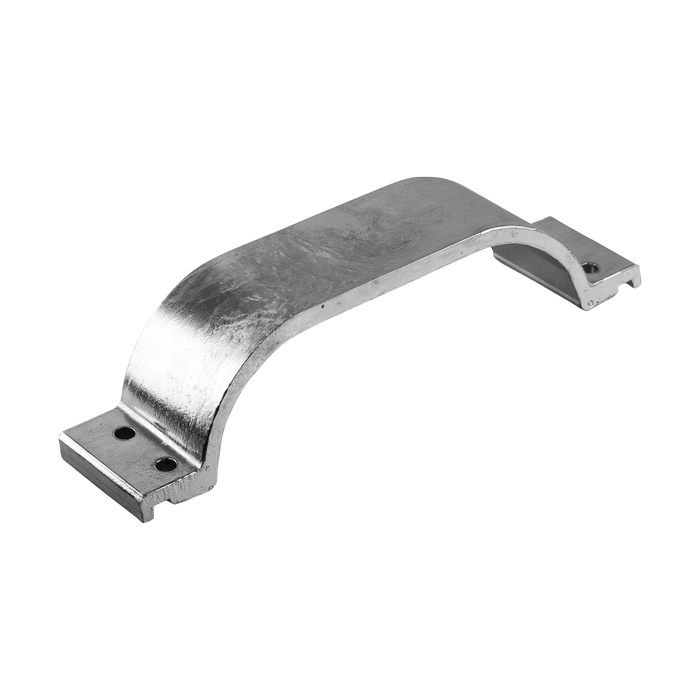

Tecnoseal 89949 Mercury 150-200 HP Outboard Bracket Handle Anode
The Tecnoseal 00821 is a zinc sacrificial bracket handle anode designed for Mercury outboard motors rated from 150 to 200 HP. It provides galvanic corrosion protection for compatible outboard bracket components. According to the Tecnoseal catalogue, the corresponding Mercury original part number is 89949, with 01125 listed as an additional catalogue cross-reference.
The anode features a curved, bridge-shaped body with mounting flanges at both ends. It measures 280 mm (11.02") in overall length and 60 mm (2.36") in width, with an overall height of 60 mm (2.36") and a material thickness of 10 mm (0.39"). Additional catalogue dimensions are i = 30 mm (1.18") and i1 = 240 mm (9.45"). The zinc anode weighs 1.20 kg (2.65 lbs).
Technical Specifications
Manufacturer Tecnoseal Product Code 00821 Product Type Outboard Bracket Handle Anode Material Zinc Application Mercury Outboard Motors Engine Compatibility 150-200 HP Mercury OEM Part Number 89949 Additional Catalogue Reference 01125 Weight 1.20 kg (2.65 lbs)
Dimensions and Mounting
Catalogue Dimension Measurement Overall Length (l) 280 mm (11.02") Width (a) 60 mm (2.36") Thickness (h) 10 mm (0.39") Overall Height (h1) 60 mm (2.36") Dimension (i) 30 mm (1.18") Dimension (i1) 240 mm (9.45")
Product Configuration
- Tecnoseal Part Number: 00821
- Material: Zinc
- Weight: 1.20 kg (2.65 lbs)
- Overall Length: 280 mm
- Width: 60 mm
- Thickness: 10 mm
- Overall Height: 60 mm
- Additional Dimensions: i = 30 mm, i1 = 240 mm
Engine Compatibility
- Manufacturer: Mercury
- Engine Type: Outboard Motor
- Power Range: 150-200 HP
- Installation: Outboard Bracket
OEM and Catalogue Cross-References
- Mercury OEM Part Number: 89949
- Tecnoseal Part Number: 00821
- Additional Catalogue Reference: 01125
Key Features
- Zinc sacrificial bracket handle anode for Mercury 150-200 HP outboard motors.
- Corresponds to Mercury OEM part number 89949.
- Additional catalogue cross-reference: 01125.
- Curved, bridge-shaped construction with mounting flanges at both ends.
- Helps protect compatible outboard bracket components against galvanic corrosion.
- Overall length: 280 mm.
- Width: 60 mm.
- Overall height: 60 mm.
- Thickness: 10 mm.
- Additional dimensions: i = 30 mm, i1 = 240 mm.
- Weight: 1.20 kg (2.65 lbs).
-
