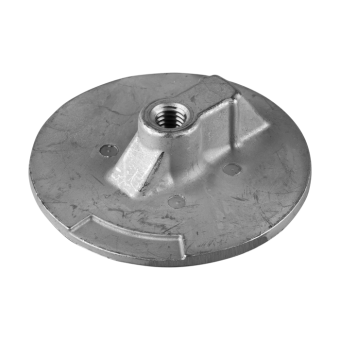

Tecnoseal 762145 Mercury/Mercruiser Flat Trim Tab Anode for Alpha One, Bravo & Verado

ID 1404497

$ 33.23

1-2 weeks delivery time

Type:

Zinc
Magnesium
Aluminium

Item:

80 g
130 g
340 g

The Tecnoseal 00820 Series is a sacrificial flat trim tab anode designed for Mercury/Mercruiser Alpha One, Bravo and Verado applications, featuring a threaded mounting hole. It corresponds to OEM references 762145, 76214-5, 76214Q5, 76214T1 and 76214M, with Tecnoseal 01850 listed as an additional cross-reference. Available in zinc (00820), aluminium (00820AL) and magnesium (00820MG), it helps protect compatible sterndrive and outboard components against galvanic corrosion. The anode measures 92 mm (3.62") in diameter, with dimensions b = 21 mm (0.83"), c = 58 mm (2.28"), h = 24 mm (0.94") and h1 = 5 mm (0.20"). The mounting thread is 7/16" UNC. The zinc version weighs 0.34 kg (340 g), aluminium 0.13 kg (130 g) and magnesium 0.08 kg (80 g). All three versions share identical dimensions.

Description
Ask a Question

Tecnoseal 762145 Mercury/Mercruiser Flat Trim Tab Anode for Alpha One, Bravo & Verado

The Tecnoseal 00820 Series consists of sacrificial flat trim tab anodes designed for Mercury/Mercruiser Alpha One, Bravo and Verado applications. These anodes help protect compatible submerged metallic components against galvanic corrosion. The Tecnoseal catalogue lists original part numbers 762145, 76214-5, 76214Q5, 76214T1 and 76214M, along with the additional catalogue reference 01850.

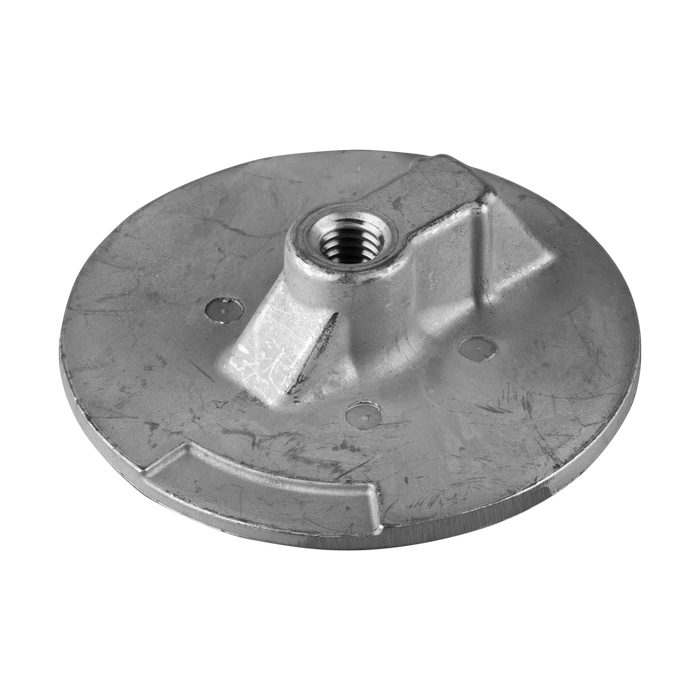

The anode features a circular flat plate with a raised central mounting section and a threaded hole. Its outside diameter is 92 mm (3.62"), with catalogue dimensions b = 21 mm (0.83"), c = 58 mm (2.28"), h = 24 mm (0.94") and h1 = 5 mm (0.20"). The mounting thread is 7/16" UNC. Three material versions are available: zinc, aluminium and magnesium. All versions share identical dimensions but differ in weight.

Technical Specifications

Manufacturer	Tecnoseal
Product Series	00820
Product Type	Flat Trim Tab Anode
Application	Mercury/Mercruiser Alpha One, Bravo and Verado
Available Materials	Zinc, Aluminium, Magnesium
Mounting Type	Threaded Hole
Mounting Thread	7/16" UNC
Outside Diameter	92 mm

Available Versions and Osculati Cross-References

Tecnoseal Part Number	Material	Osculati Reference	Weight
00820	Zinc	43.423.00	0.34 kg (0.75 lbs)
00820AL	Aluminium	43.423.11	0.13 kg (0.29 lbs)
00820MG	Magnesium	43.423.12	0.08 kg (0.18 lbs)

Dimensions and Mounting

Catalogue Dimension	Measurement
Outside Diameter (Ø)	92 mm (3.62")
Dimension (b)	21 mm (0.83")
Dimension (c)	58 mm (2.28")
Overall Height (h)	24 mm (0.94")
Plate Thickness (h1)	5 mm (0.20")
Mounting Thread (m)	7/16" UNC

Product Configurations

Tecnoseal 00820 – Zinc Mercury/Mercruiser Flat Trim Tab Anode

Material: Zinc
Weight: 0.34 kg (0.75 lbs)
Outside Diameter: 92 mm
Dimension b: 21 mm
Dimension c: 58 mm
Overall Height: 24 mm
Plate Thickness: 5 mm
Mounting Thread: 7/16" UNC
Osculati Reference: 43.423.00

Tecnoseal 00820AL – Aluminium Mercury/Mercruiser Flat Trim Tab Anode

Material: Aluminium
Weight: 0.13 kg (0.29 lbs)
Outside Diameter: 92 mm
Dimension b: 21 mm
Dimension c: 58 mm
Overall Height: 24 mm
Plate Thickness: 5 mm
Mounting Thread: 7/16" UNC
Osculati Reference: 43.423.11

Tecnoseal 00820MG – Magnesium Mercury/Mercruiser Flat Trim Tab Anode

Material: Magnesium
Weight: 0.08 kg (0.18 lbs)
Outside Diameter: 92 mm
Dimension b: 21 mm
Dimension c: 58 mm
Overall Height: 24 mm
Plate Thickness: 5 mm
Mounting Thread: 7/16" UNC
Osculati Reference: 43.423.12

Compatibility

Mercury/Mercruiser Alpha One
Mercury/Mercruiser Bravo
Mercury Verado
Installation: Flat trim tab anode with threaded mounting hole

OEM and Cross-References

OEM Part Number: 762145
Additional OEM References: 76214-5, 76214Q5, 76214T1, 76214M
Additional Tecnoseal Catalogue Reference: 01850
Tecnoseal 00820 (Zinc): Osculati 43.423.00
Tecnoseal 00820AL (Aluminium): Osculati 43.423.11
Tecnoseal 00820MG (Magnesium): Osculati 43.423.12

Key Features

Flat trim tab anode for Mercury/Mercruiser Alpha One, Bravo and Verado applications.
OEM references: 762145, 76214-5, 76214Q5, 76214T1 and 76214M.
Additional catalogue reference: Tecnoseal 01850.
Available in zinc, aluminium and magnesium versions.
Circular plate with raised central mounting section.
Threaded mounting hole: 7/16" UNC.
Provides sacrificial corrosion protection for compatible marine propulsion components.
Outside diameter: 92 mm.
Overall height: 24 mm.
Plate thickness: 5 mm.
Additional dimensions: b = 21 mm, c = 58 mm.
Identical dimensions across all three material versions.
Zinc: Tecnoseal 00820 / Osculati 43.423.00 / 340 g.
Aluminium: Tecnoseal 00820AL / Osculati 43.423.11 / 130 g.
Magnesium: Tecnoseal 00820MG / Osculati 43.423.12 / 80 g.
