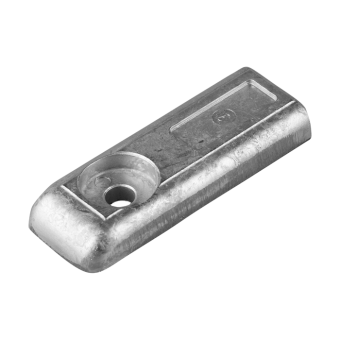

Tecnoseal 893404 Mercury Verado 6 Engine Plate Anode

ID 1404542

$ 40.69

1-2 weeks delivery time

Type:

Zinc
Magnesium
Aluminium

Item:

30 g
40 g
120 g

The Tecnoseal 00833 Series is a sacrificial engine plate anode designed for Mercury Verado 6 outboard engines, corresponding to OEM part number 893404. Available in zinc (00833), aluminium (00833AL) and magnesium (00833MG), it helps protect compatible engine components against galvanic corrosion. The rectangular plate measures 74 mm (2.91") in length, 27 mm (1.06") in width and 10 mm (0.39") in overall height, with an additional dimension c of 5 mm (0.20"). The mounting dimensions are Ø = 7 mm (0.28") and Ø1 = 19 mm (0.75"). The zinc version weighs 0.12 kg (120 g / 0.26 lbs), aluminium 0.04 kg (40 g / 0.09 lbs) and magnesium 0.03 kg (30 g / 0.07 lbs). All three versions share identical dimensions. According to the Tecnoseal catalogue, four anodes are required per engine.

Description
Ask a Question

Tecnoseal 893404 Mercury Verado 6 Engine Plate Anode

The Tecnoseal 00833 Series consists of sacrificial engine plate anodes designed for Mercury Verado 6 outboard engines. These anodes help protect compatible metallic engine components against galvanic corrosion. The corresponding original part number is 893404.

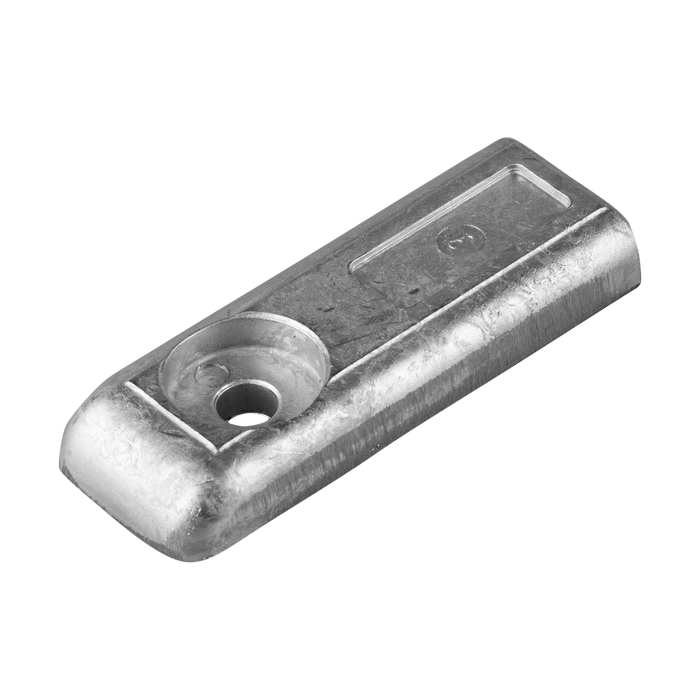

The anode features a rectangular plate with rounded edges and a recessed mounting hole. It measures 74 mm (2.91") in length, 27 mm (1.06") in width and 10 mm (0.39") in height. Additional catalogue dimensions are c = 5 mm (0.20"), Ø = 7 mm (0.28") and Ø1 = 19 mm (0.75"). Three material versions are available: zinc, aluminium and magnesium, all sharing identical dimensions.

Important: Four anodes are required per engine according to the Tecnoseal catalogue. The listed weights refer to individual anodes.

Technical Specifications

Manufacturer	Tecnoseal
Product Series	00833
Product Type	Engine Plate Anode
Application	Mercury Verado 6 Outboard Engine
OEM Part Number	893404
Available Materials	Zinc, Aluminium, Magnesium
Required Quantity	4 anodes per engine

Available Versions and Osculati Cross-References

Tecnoseal Part Number	Material	Osculati Reference	Weight per Anode
00833	Zinc	43.424.12	0.12 kg (0.26 lbs)
00833AL	Aluminium	43.424.15	0.04 kg (0.09 lbs)
00833MG	Magnesium	43.424.16	0.03 kg (0.07 lbs)

Dimensions and Mounting

Catalogue Dimension	Measurement
Length (l)	74 mm (2.91")
Width (a)	27 mm (1.06")
Dimension (c)	5 mm (0.20")
Height (h)	10 mm (0.39")
Mounting Hole Diameter (Ø)	7 mm (0.28")
Counterbore Diameter (Ø1)	19 mm (0.75")
