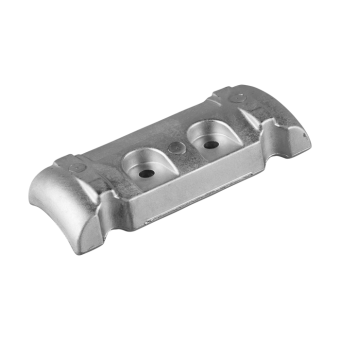

Tecnoseal 880653 Mercury Verado 6 Engine Plate Anode

ID 1404538

$ 84.31

1-2 weeks delivery time

Type:

Zinc
Magnesium
Aluminium

Item:

200 g
130 g
510 g

The Tecnoseal 00832 Series is a sacrificial engine plate anode designed for Mercury Verado 6 outboard engines, corresponding to OEM part number 880653. Two anodes are required per engine. Available in zinc (00832), aluminium (00832AL) and magnesium (00832MG), it helps protect compatible engine components against galvanic corrosion. The plate features a contoured rectangular body with two recessed mounting holes and measures 128 mm (5.04") in length, 44 mm (1.73") in width and 21 mm (0.83") in height, with a mounting hole spacing (i) of 35 mm (1.38") and hole diameter (Ø) of 7 mm (0.28"). According to the Tecnoseal catalogue, the zinc version weighs 0.51 kg (1.12 lbs), aluminium 0.20 kg (0.44 lbs) and magnesium 0.13 kg (0.29 lbs). All three versions share identical dimensions.

Description
Ask a Question

Tecnoseal 880653 Mercury Verado 6 Engine Plate Anode

The Tecnoseal 00832 Series consists of sacrificial engine plate anodes designed for Mercury Verado 6 outboard engines. These anodes help protect compatible metallic engine components against galvanic corrosion. The corresponding original part number is 880653.

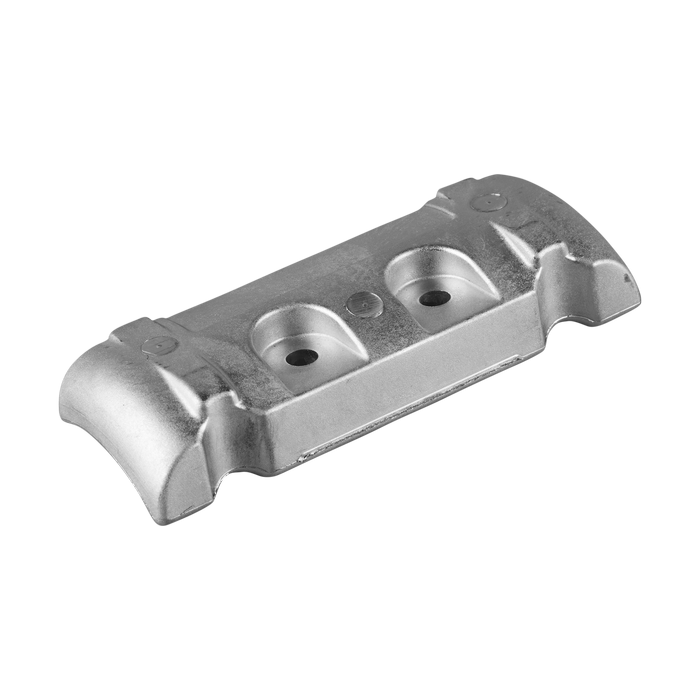

The anode features a contoured rectangular plate with two recessed mounting holes. It measures 128 mm (5.04") in length, 44 mm (1.73") in width and 21 mm (0.83") in height. Additional catalogue dimensions are i = 35 mm (1.38") and mounting hole diameter Ø = 7 mm (0.28"). Three material versions are available: zinc, aluminium and magnesium, all sharing identical dimensions.

Important: According to the Tecnoseal catalogue, two anodes are required per engine.

Technical Specifications

Manufacturer	Tecnoseal
Product Series	00832
Product Type	Engine Plate Anode
Application	Mercury Verado 6 Outboard Engine
OEM Part Number	880653
Available Materials	Zinc, Aluminium, Magnesium
Required Quantity	2 anodes per engine
