Tecnoseal 76214-4 Mercury/Mercruiser Flat Trim Tab Anode – Non-Threaded

ID 1404550

$ 35.10

1-2 weeks delivery time

Type:

Zinc
Magnesium
Aluminium

Item:

80 g
280 g
120 g

The Tecnoseal 00835 Series is a flat trim tab sacrificial anode designed for Mercury and Mercruiser marine propulsion systems, corresponding to OEM part number 76214-4 and catalogue cross-reference 08404. Featuring a non-threaded mounting hole, the anode is available in zinc (00835), aluminium (00835AL) and magnesium (00835MG) for galvanic corrosion protection. It has a circular base diameter of 91 mm (3.58"), plate thickness (h) of 5 mm (0.20") and overall height (h1) of 24 mm (0.94"). Additional dimensions are a = 16 mm (0.63"), b = 56 mm (2.20") and Ø1 = 13 mm (0.51"). The zinc version weighs 0.28 kg (280 g / 0.62 lbs), aluminium 0.12 kg (120 g / 0.26 lbs) and magnesium 0.08 kg (80 g / 0.18 lbs). All three variants share identical dimensions.

Description
Ask a Question

Tecnoseal 76214-4 Mercury/Mercruiser Flat Trim Tab Anode – Non-Threaded

The Tecnoseal 00835 Series consists of flat sacrificial trim tab anodes for Mercury and Mercruiser marine propulsion systems. These anodes help protect compatible submerged metallic components against galvanic corrosion. The corresponding original part number is 76214-4, with 08404 listed as an additional catalogue cross-reference.

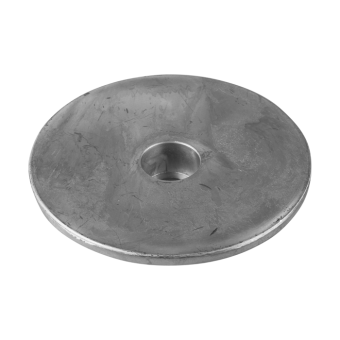

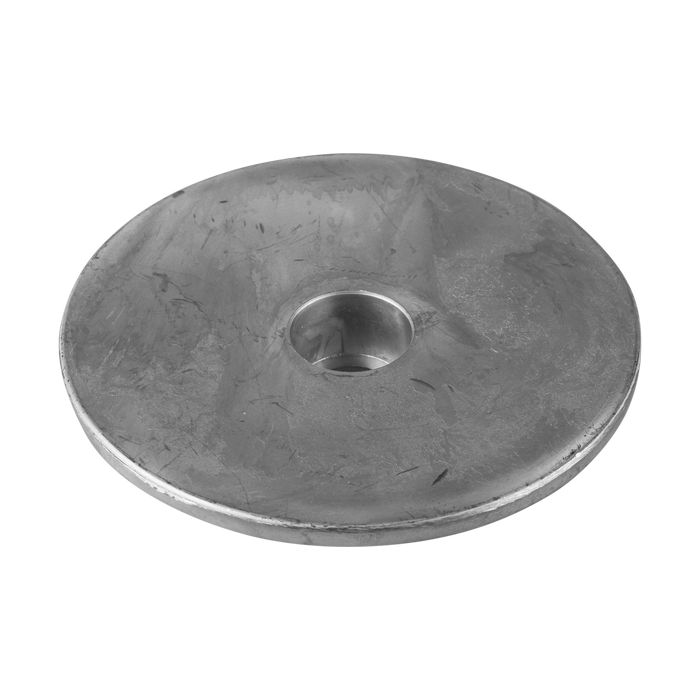

The anode features a circular plate with an elevated central mounting section and a non-threaded hole. It measures 91 mm (3.58") in outer diameter (Ø), with a plate thickness (h) of 5 mm (0.20") and catalogue height (h1) of 24 mm (0.94"). Additional dimensions are a = 16 mm (0.63"), b = 56 mm (2.20") and Ø1 = 13 mm (0.51"). Zinc, aluminium and magnesium versions are available with identical dimensions.

Technical Specifications

Manufacturer	Tecnoseal
Product Series	00835
Product Type	Flat Trim Tab Anode
Application	Mercury/Mercruiser
OEM Part Number	76214-4
Catalogue Cross-Reference	08404
Mounting Type	Non-Threaded Hole
Available Materials	Zinc, Aluminium, Magnesium

Available Versions and Osculati Cross-References

Tecnoseal Part Number	Material	Osculati Reference	Weight
00835	Zinc	43.423.01	0.28 kg (0.62 lbs)
00835AL	Aluminium	43.423.20	0.12 kg (0.26 lbs)
00835MG	Magnesium	43.423.21	0.08 kg (0.18 lbs)

Dimensions and Mounting

Catalogue Dimension	Measurement
Outer Diameter (Ø)	91 mm (3.58")
Dimension (a)	16 mm (0.63")
Dimension (b)	56 mm (2.20")
Plate Thickness (h)	5 mm (0.20")
Catalogue Height (h1)	24 mm (0.94")
Hole Diameter (Ø1)	13 mm (0.51")
Mounting	Non-Threaded
