Tecnoseal 875208 Mercury 4-9.9 HP Small Trim Tab Plate Anode

ID 1404546

$ 15.39

1-2 weeks delivery time

Type:

Zinc
Magnesium
Aluminium

Item:

30 g
10 g

The Tecnoseal 00834 Series is a sacrificial small trim tab plate anode designed for Mercury 4-9.9 HP outboard motors, corresponding to OEM part number 875208 and catalogue cross-reference 01259. Available in zinc (00834), aluminium (00834AL) and magnesium (00834MG), it helps protect compatible outboard components against galvanic corrosion. The anode features a compact rectangular plate with rounded corners and a central mounting hole. It measures 28 mm (1.10") in length, 19 mm (0.75") in width and 9 mm (0.35") in height, with a mounting hole diameter of 6.50 mm (0.26"). The zinc version weighs 0.03 kg (30 g / 0.07 lbs), while the aluminium and magnesium versions each weigh 0.01 kg (10 g / 0.02 lbs). All three versions share identical dimensions.

Description
Ask a Question

Tecnoseal 875208 Mercury 4-9.9 HP Small Trim Tab Plate Anode

The Tecnoseal 00834 Series consists of sacrificial small trim tab plate anodes designed for Mercury 4-9.9 HP outboard motors. These anodes help protect compatible submerged metallic components against galvanic corrosion. The corresponding Mercury original part number is 875208, with 01259 listed as an additional catalogue cross-reference.

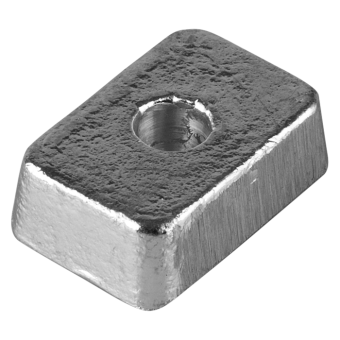

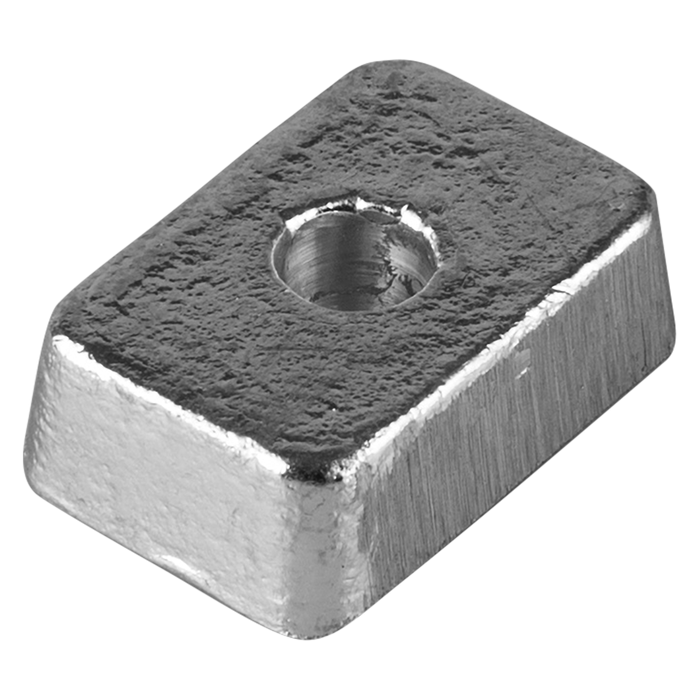

The anode features a compact rectangular plate with rounded corners and a central mounting hole. It measures 28 mm (1.10") in length, 19 mm (0.75") in width and 9 mm (0.35") in height. The mounting hole diameter is 6.50 mm (0.26"). Three material versions are available: zinc, aluminium and magnesium. All share identical dimensions but differ in weight.

Technical Specifications

Manufacturer	Tecnoseal
Product Series	00834
Product Type	Small Trim Tab Plate Anode
Application	Mercury 4-9.9 HP Outboard Motors
OEM Part Number	875208
Additional Catalogue Reference	01259
Available Materials	Zinc, Aluminium, Magnesium
