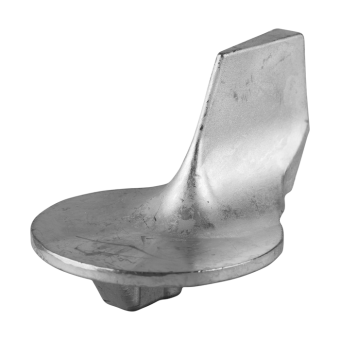

Tecnoseal 822777 Mercury 35 HP-V6-MCM Standard Trim Tab Anode

ID 1404532

$ 64.86

1-2 weeks delivery time

Type:

Zinc
Magnesium

Item:

170 g
690 g

The Tecnoseal 00830 Series is a sacrificial standard trim tab anode designed for Mercury 35 HP-V6-MCM marine engines, corresponding to OEM part number 822777. Available in zinc (00830) and magnesium (00830MG), it helps protect compatible outboard and sterndrive components against galvanic corrosion. The anode features a circular base with an integrated trim fin and a 7/16" UNC threaded mounting connection. It measures 90 mm (3.54") in base diameter, 65 mm (2.56") in overall height and 20 mm (0.79") in secondary height. The zinc version weighs 0.69 kg (690 g / 1.52 lbs), while the magnesium version weighs 0.17 kg (170 g / 0.37 lbs). Both versions share identical dimensions.

Description
Ask a Question

Tecnoseal 822777 Mercury 35 HP-V6-MCM Standard Trim Tab Anode

The Tecnoseal 00830 Series consists of sacrificial standard trim tab anodes designed for Mercury 35 HP-V6-MCM marine engines. These anodes help protect compatible metallic propulsion components against galvanic corrosion. According to the Tecnoseal catalogue, the corresponding original part number is 822777.

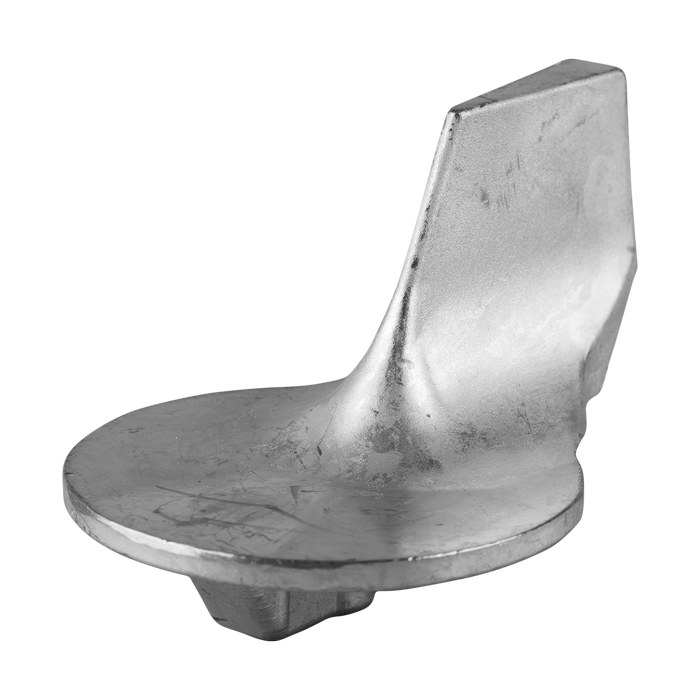

The anode features a circular base with an integrated trim fin and a threaded mounting connection. It measures 90 mm (3.54") in base diameter (Ø), 65 mm (2.56") in overall height (h) and 20 mm (0.79") in secondary height (h1). The mounting thread is 7/16" UNC. Two material versions are available: zinc and magnesium. Both versions have identical dimensions but differ in weight.

Technical Specifications

Manufacturer	Tecnoseal
Product Series	00830
Product Type	Standard Trim Tab Anode
Application	Mercury 35 HP-V6-MCM
OEM Part Number	822777
Available Materials	Zinc, Magnesium
Base Diameter	90 mm
Overall Height	65 mm
Mounting Thread	7/16" UNC

Available Versions

Tecnoseal Part Number	Material	Weight
00830 (Osculati 43.227.77)	Zinc	0.69 kg (1.52 lbs)
00830MG	Magnesium	0.17 kg (0.37 lbs)

Dimensions and Mounting

Catalogue Dimension	Measurement
Overall Height (h)	65 mm (2.56")
Secondary Height (h1)	20 mm (0.79")
Base Diameter (Ø)	90 mm (3.54")
Mounting Thread (m)	7/16" UNC

Product Configurations

Tecnoseal 00830 – Zinc Mercury Standard Trim Tab Anode

Material: Zinc
Weight: 0.69 kg (1.52 lbs)
Base Diameter: 90 mm
Overall Height: 65 mm
Secondary Height: 20 mm
Mounting Thread: 7/16" UNC
OEM Reference: 822777

Tecnoseal 00830MG – Magnesium Mercury Standard Trim Tab Anode

Material: Magnesium
Weight: 0.17 kg (0.37 lbs)
Base Diameter: 90 mm
Overall Height: 65 mm
Secondary Height: 20 mm
Mounting Thread: 7/16" UNC
OEM Reference: 822777

Engine Compatibility

Manufacturer: Mercury
Catalogue Application: 35 HP-V6-MCM
Product Application: Standard Trim Tab Anode

OEM and Product References

Mercury OEM Part Number: 822777
Tecnoseal 00830: Zinc version
Tecnoseal 00830MG: Magnesium version

Key Features

Standard trim tab anode for Mercury 35 HP-V6-MCM applications.
Corresponds to Mercury OEM part number 822777.
Available in zinc and magnesium versions.
Circular base with integrated trim fin.
Helps protect compatible marine propulsion components against galvanic corrosion.
Base diameter: 90 mm.
Overall height: 65 mm.
Secondary height: 20 mm.
Mounting thread: 7/16" UNC.
Identical dimensions for both material versions.
Zinc: Tecnoseal 00830, weight 690 g.
Magnesium: Tecnoseal 00830MG, weight 170 g.
