Tecnoseal 682-11325-00 Yamaha 9.9–15 HP Crankcase Cylinder Zinc Anode

ID 1405609

$ 26.50

1-2 weeks delivery time

- +

Add to cart

The Tecnoseal 01162 is a zinc sacrificial internal engine anode designed for Yamaha 9.9–15 HP outboard motors, corresponding to Yamaha OEM part number 682-11325-00 and catalogue equivalent 01754. It helps protect metallic components in the engine crankcase and cylinder assembly against corrosion. The anode features a compact, irregularly shaped body with a recessed mounting section and a 5.5 mm fastening hole. It measures 27 mm in length (l), 17 mm in width (a) and 15 mm in height (h), with a mounting-hole diameter (Ø) of 5.5 mm. Manufactured from zinc, Tecnoseal 01162 has a catalogue weight of 0.005 kg (5 g).

Description
Ask a Question

Tecnoseal 682-11325-00 Yamaha 9.9–15 HP Crankcase Cylinder Zinc Anode

The Tecnoseal 01162 is a zinc sacrificial internal engine anode designed for Yamaha 9.9–15 HP outboard motors. Corresponding to Yamaha OEM part number 682-11325-00, this replacement anode helps protect metallic components within the engine crankcase and cylinder assembly against corrosion. The Tecnoseal catalogue also identifies reference 01754 as an equivalent.

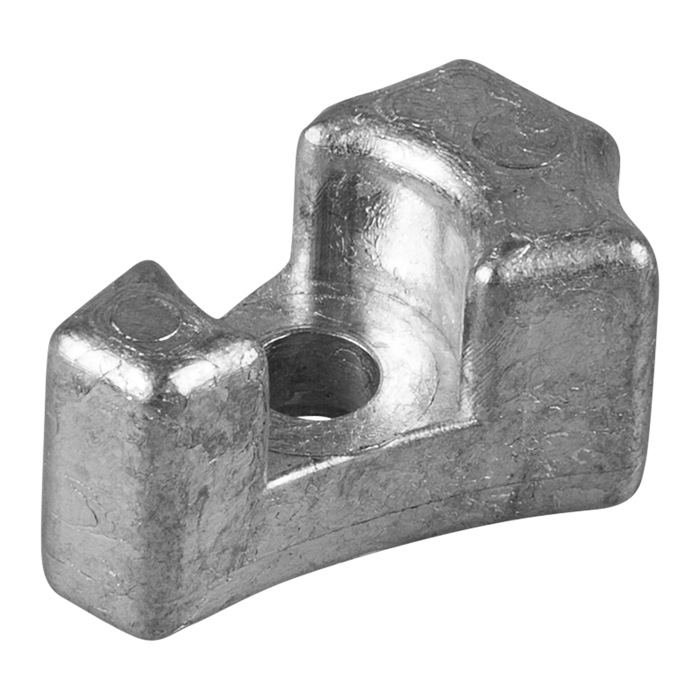

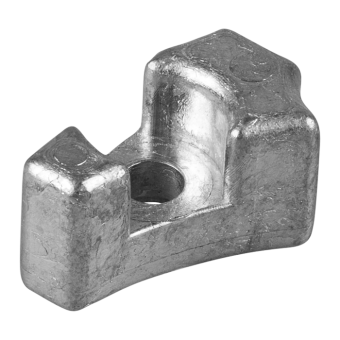

The anode features a compact, irregularly shaped body with a recessed central mounting section, raised side portions and a fastening hole. Its distinctive profile corresponds to the component illustrated in the Tecnoseal catalogue and allows identification against the original Yamaha internal engine anode.

The zinc body functions as a sacrificial corrosion protection component. When exposed to the relevant engine cooling-water environment, the zinc material corrodes preferentially, helping reduce galvanic corrosion of surrounding protected metallic engine components. The anode should be inspected and replaced according to the Yamaha engine manufacturer's maintenance recommendations.

According to the Tecnoseal catalogue, the anode measures 27 mm (1.06 in) in length (l), 17 mm (0.67 in) in width (a) and 15 mm (0.59 in) in height (h). The mounting-hole diameter (Ø) is 5.5 mm (0.22 in). The catalogue lists a weight of 0.005 kg (5 g).

Technical Specifications

Manufacturer	Tecnoseal
Product Code	01162
Product Type	Internal Engine Sacrificial Anode
Material	Zinc
Application	Crankcase / Cylinder Assembly
Compatible Manufacturer	Yamaha
Compatible Engine Power	9.9–15 HP
Yamaha OEM Reference	682-11325-00
Tecnoseal Equivalent Reference	01754
Construction	Shaped body with recessed mounting section
Weight	0.005 kg (5 g)
EAN	8059617815929

Dimensions and Mounting Specifications

Dimension	Metric	Imperial
Length (l)	27 mm	1.06 in
Width (a)	17 mm	0.67 in
Height (h)	15 mm	0.59 in
Mounting-Hole Diameter (Ø)	5.5 mm	0.22 in

Compatibility and Cross-References

Compatible Manufacturer: Yamaha
Engine Power Range: 9.9–15 HP
Installation Area: Internal crankcase / cylinder assembly
Yamaha OEM Part Number: 682-11325-00
Tecnoseal Part Number: 01162
Tecnoseal Equivalent Reference: 01754

Key Features

Designed for compatible Yamaha 9.9–15 HP outboard engines.
Corresponds to Yamaha OEM part number 682-11325-00.
Listed as equivalent to Tecnoseal reference 01754.
Zinc sacrificial anode for internal engine corrosion protection.
Compact shaped body with recessed central mounting section.
Helps protect metallic crankcase and cylinder components against galvanic corrosion.
Length: 27 mm.
Width: 17 mm.
Height: 15 mm.
Mounting-hole diameter: 5.5 mm.
Catalogue weight: 5 g.

Compatibility Note: Before ordering, verify the Yamaha outboard model, OEM part number 682-11325-00 and original anode dimensions. Compare the shaped body, mounting profile and 5.5 mm fastening hole with the existing component to confirm compatibility.
