Tecnoseal 63P-11325-11-00 Yamaha Crankcase Cylinder Zinc Anode 150–350 HP

Name: Tecnoseal 63P-11325-11-00 Yamaha Crankcase Cylinder Zinc Anode 150–350 HP
SKU: Tecnoseal 01164
Price: 44.114900451982 USD
Availability: InStock

ID 1405611

$ 44.11

1-2 weeks delivery time

- +

Add to cart

The Tecnoseal 01164 is a zinc sacrificial internal engine anode designed for Yamaha 150–350 HP outboard motors, corresponding to Yamaha OEM part number 63P-11325-11-00. It helps protect metallic components within the engine crankcase and cylinder assembly against corrosion. The anode features a compact rectangular body with chamfered upper corners and a central countersunk mounting hole. It measures 27 mm in length (l), 15 mm in width (a) and 10 mm in height (h), with a 7 mm mounting-hole diameter (Ø). Manufactured from zinc, the anode weighs 0.02 kg (0.04 lbs) and is intended as a replacement corrosion protection component for the specified Yamaha engine application.

Description
Ask a Question

Tecnoseal 63P-11325-11-00 Yamaha Crankcase Cylinder Zinc Anode 150–350 HP

The Tecnoseal 01164 is a zinc sacrificial internal engine anode designed for Yamaha 150–350 HP outboard motors. Corresponding to Yamaha OEM part number 63P-11325-11-00, this replacement anode helps protect metallic components within the crankcase and cylinder assembly against corrosion.

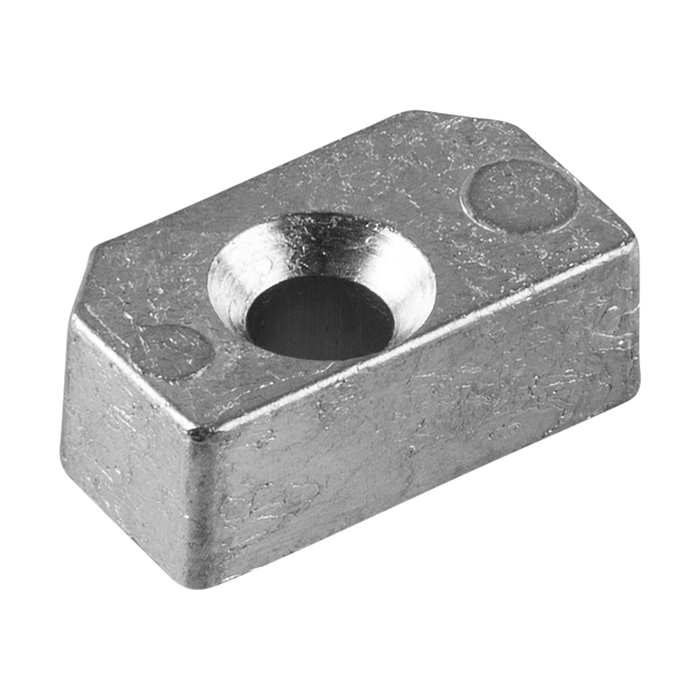

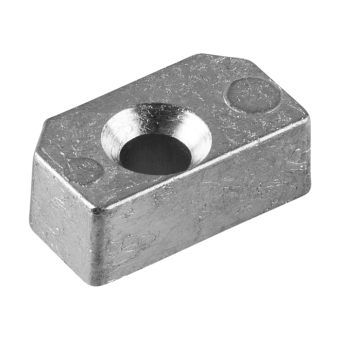

The anode features a compact rectangular body with chamfered upper corners and a central countersunk mounting hole. Its flat lower surface, shaped upper profile and recessed fastening hole correspond to the design illustrated in the Tecnoseal catalogue. This configuration is intended for the specified Yamaha internal engine installation position.

The zinc material acts as a sacrificial corrosion protection component. During service, it corrodes preferentially, helping reduce galvanic corrosion of surrounding protected metallic engine components. Regular inspection and replacement should follow the Yamaha engine manufacturer's maintenance recommendations.

According to the Tecnoseal catalogue, the anode measures 27 mm (1.06 in) in length (l), 15 mm (0.59 in) in width (a) and 10 mm (0.39 in) in height (h). The central mounting-hole diameter (Ø) is 7 mm (0.28 in). The zinc anode weighs 0.02 kg (0.04 lbs).

Technical Specifications

Manufacturer	Tecnoseal
Product Code	01164
Product Type	Internal Engine Sacrificial Anode
Material	Zinc
Application	Crankcase / Cylinder Assembly
Compatible Manufacturer	Yamaha
Compatible Engine Power	150–350 HP
Yamaha OEM Reference	63P-11325-11-00
Construction	Rectangular body with chamfered corners and central countersunk hole
Weight	0.02 kg (0.04 lbs)
EAN	8059617815943

Dimensions and Mounting Specifications

Dimension	Metric	Imperial
Length (l)	27 mm	1.06 in
Width (a)	15 mm	0.59 in
Height (h)	10 mm	0.39 in
Mounting-Hole Diameter (Ø)	7 mm	0.28 in

Compatibility and OEM Cross-References

Compatible Manufacturer: Yamaha
Outboard Power Range: 150–350 HP
Installation Area: Internal crankcase / cylinder assembly
Yamaha OEM Part Number: 63P-11325-11-00
Tecnoseal Reference: 01164

Key Features

Designed for compatible Yamaha 150–350 HP outboard motors.
Corresponds to Yamaha OEM part number 63P-11325-11-00.
Zinc sacrificial anode for internal engine corrosion protection.
Compact rectangular body with chamfered upper corners.
Central countersunk mounting hole.
Helps protect metallic crankcase and cylinder components against galvanic corrosion.
Length: 27 mm.
Width: 15 mm.
Height: 10 mm.
Mounting-hole diameter: 7 mm.
Weight: 20 g.

Compatibility Note: Before ordering, verify the Yamaha outboard model, OEM part number 63P-11325-11-00 and original anode dimensions. Compare the rectangular body, chamfered corners and 7 mm mounting hole with the existing component. The stated 150–350 HP range does not imply compatibility with every Yamaha engine within that power range.
