Tecnoseal 6AW-45619-00 Yamaha Gear Case Cap Anode 200–350 HP

ID 1405616

$ 57.21

1-2 weeks delivery time

Type:

Zinc
Magnesium
Aluminium

Item:

300 g
80 g
120 g

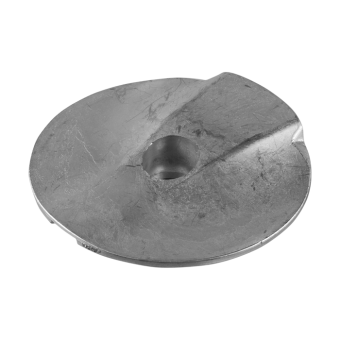

The Tecnoseal 01169 series consists of sacrificial gear case cap anodes designed for Yamaha 200–350 HP outboard motors, corresponding to Yamaha OEM part number 6AW-45619-00. Intended for additional corrosion protection of the gear case, the anode features a circular, low-profile body with a raised central mounting section and a shaped surface. It measures 90 mm in outside diameter (Ø), 32 mm in overall height (h) and 10.5 mm in mounting-hole diameter (Ø1). Three material versions are available: zinc (Tecnoseal 01169, 0.30 kg), aluminium (Tecnoseal 01169AL, 0.12 kg) and magnesium (Tecnoseal 01169MG, 0.08 kg). All versions share the same dimensions and mounting configuration.

Description
Ask a Question

Tecnoseal 6AW-45619-00 Yamaha Gear Case Cap Anode 200–350 HP

The Tecnoseal 01169 series consists of sacrificial gear case cap anodes designed for Yamaha 200–350 HP outboard motors. Corresponding to Yamaha OEM part number 6AW-45619-00, these replacement anodes provide additional corrosion protection for metallic components of the outboard gear case.

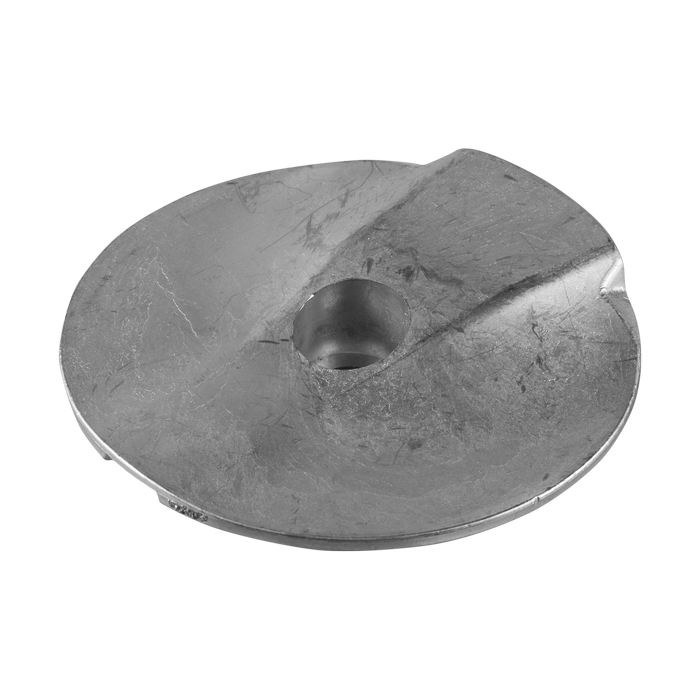

Each anode features a circular body with a raised central mounting section, a shaped upper surface and a central fastening opening. Its distinctive profile corresponds to the Yamaha gear case cap anode illustrated in the Tecnoseal catalogue. All three material versions share the same dimensions and mounting geometry.

During service, the sacrificial anode material corrodes preferentially, helping reduce galvanic corrosion of protected metallic gear case components. Zinc, aluminium and magnesium versions are available to accommodate different corrosion protection requirements. The appropriate material should be selected according to Yamaha's recommendations and operating water conditions.

According to the Tecnoseal catalogue, the anode measures 90 mm (3.54 in) in outside diameter (Ø), 32 mm (1.26 in) in overall height (h) and 10.5 mm (0.41 in) in mounting-hole diameter (Ø1). The zinc version weighs 0.30 kg, the aluminium version 0.12 kg and the magnesium version 0.08 kg.

Technical Specifications

Manufacturer	Tecnoseal
Product Type	Gear Case Cap Sacrificial Anode
Application	Yamaha Outboard Gear Case
Compatible Manufacturer	Yamaha
Compatible Engine Power	200–350 HP
Yamaha OEM Reference	6AW-45619-00
Available Materials	Zinc, Aluminium, Magnesium
Construction	Circular body with raised mounting section
Mounting-Hole Diameter	10.5 mm
Osculati References	43.258.50 (Zinc), 43.258.51 (Aluminium), 43.258.52 (Magnesium)

Available Versions and Cross-References

Tecnoseal Code	Material	Weight	Osculati Reference
01169	Zinc	0.30 kg (0.66 lbs)	43.258.50
01169AL	Aluminium	0.12 kg (0.26 lbs)	43.258.51
01169MG	Magnesium	0.08 kg (0.18 lbs)	43.258.52

Product Codes and EAN

Tecnoseal Code	EAN
01169	8059617818449
01169AL	8059617818555
01169MG	8059617818562

Dimensions and Mounting Specifications

Dimension	Metric	Imperial
Overall Height (h)	32 mm	1.26 in
Outside Diameter (Ø)	90 mm	3.54 in
Mounting-Hole Diameter (Ø1)	10.5 mm	0.41 in

Compatibility and OEM Cross-References

Compatible Manufacturer: Yamaha
Outboard Power Range: 200–350 HP
Installation Area: Gear Case Cap
Yamaha OEM Part Number: 6AW-45619-00
Zinc Version: Tecnoseal 01169 / Osculati 43.258.50
Aluminium Version: Tecnoseal 01169AL / Osculati 43.258.51
Magnesium Version: Tecnoseal 01169MG / Osculati 43.258.52

Key Features

Designed for compatible Yamaha 200–350 HP outboard motors.
Corresponds to Yamaha OEM part number 6AW-45619-00.
Provides additional sacrificial corrosion protection for the gear case.
Circular body with a raised central mounting section.
Available in zinc, aluminium and magnesium versions.
Outside diameter: 90 mm.
Overall height: 32 mm.
Mounting-hole diameter: 10.5 mm.
Zinc version: Tecnoseal 01169, 300 g, Osculati 43.258.50.
Aluminium version: Tecnoseal 01169AL, 120 g, Osculati 43.258.51.
Magnesium version: Tecnoseal 01169MG, 80 g, Osculati 43.258.52.
Identical dimensions and mounting configuration for all three versions.

Compatibility Note: Before ordering, verify the Yamaha outboard model, OEM part number 6AW-45619-00 and existing anode dimensions. Compare the circular profile, raised central section and 10.5 mm mounting hole with the original component. Select the appropriate sacrificial anode material according to the engine manufacturer's requirements. The stated 200–350 HP range does not imply compatibility with every Yamaha engine within that range.
