Tecnoseal 61A-11325-00 Yamaha Crankcase Cylinder Zinc Anode 200–250 HP

Name: Tecnoseal 61A-11325-00 Yamaha Crankcase Cylinder Zinc Anode 200–250 HP
SKU: Tecnoseal 01168
Price: 33.718078019748 USD
Availability: InStock

ID 1405615

$ 33.72

1-2 weeks delivery time

- +

Add to cart

The Tecnoseal 01168 is a zinc sacrificial internal engine anode designed for Yamaha 200–250 HP outboard motors manufactured between 1990 and 2003, corresponding to Yamaha OEM part number 61A-11325-00 and catalogue equivalent 01652. It helps protect metallic components within the crankcase and cylinder assembly against corrosion. The anode features a long cylindrical rod with an integral flange and a small projecting end. According to the Tecnoseal catalogue, it measures 68 mm in length (l), 7.5 mm in rod diameter (a) and 4 mm in projecting-end dimension (b). Manufactured from zinc, the anode weighs 0.03 kg (0.07 lbs).

Description
Ask a Question

Tecnoseal 61A-11325-00 Yamaha Crankcase Cylinder Zinc Anode 200–250 HP

The Tecnoseal 01168 is a zinc sacrificial internal engine anode designed for Yamaha 200–250 HP outboard motors manufactured between 1990 and 2003. Corresponding to Yamaha OEM part number 61A-11325-00, this replacement anode helps protect metallic components within the engine crankcase and cylinder assembly against corrosion. The Tecnoseal catalogue also identifies reference 01652 as an equivalent.

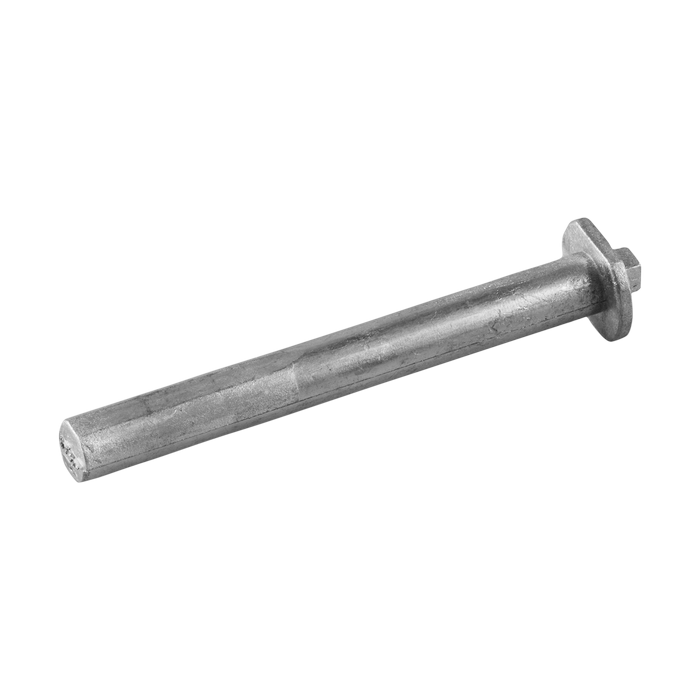

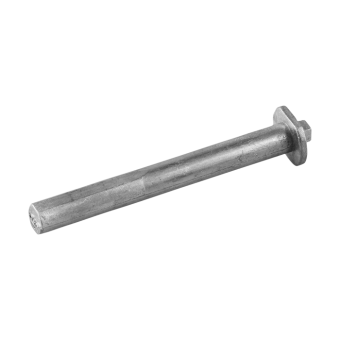

The anode features an elongated cylindrical rod with an integral circular flange near one end and a small projecting tip beyond the flange. Its straight rod profile and flange arrangement correspond to the design illustrated in the Tecnoseal catalogue. This configuration is intended for the specified Yamaha internal engine installation position.

The zinc material serves as a sacrificial corrosion protection component. During service, the anode corrodes preferentially, helping reduce galvanic corrosion of surrounding protected metallic engine components. Inspection and replacement should follow the Yamaha engine manufacturer's maintenance recommendations.

According to the Tecnoseal catalogue, the anode measures 68 mm (2.68 in) in length (l), with a rod dimension (a) of 7.5 mm (0.30 in) and an end projection dimension (b) of 4 mm (0.16 in). The zinc anode weighs 0.03 kg (0.07 lbs).

Technical Specifications

Manufacturer	Tecnoseal
Product Code	01168
Product Type	Internal Engine Sacrificial Anode
Material	Zinc
Application	Crankcase / Cylinder Assembly
Compatible Manufacturer	Yamaha
Compatible Engine Power	200–250 HP
Engine Years	1990–2003
Yamaha OEM Reference	61A-11325-00
Equivalent Catalogue Reference	01652
Construction	Cylindrical rod with integral flange and projecting tip
Weight	0.03 kg (0.07 lbs)
EAN	8059617815981

Dimensions and Mounting Specifications

Dimension	Metric	Imperial
Length (l)	68 mm	2.68 in
Rod Diameter (a)	7.5 mm	0.30 in
End Projection (b)	4 mm	0.16 in

Compatibility and OEM Cross-References

Compatible Manufacturer: Yamaha
Outboard Power Range: 200–250 HP
Production Years: 1990–2003
Installation Area: Internal crankcase / cylinder assembly
Yamaha OEM Part Number: 61A-11325-00
Tecnoseal Reference: 01168
Equivalent Catalogue Reference: 01652

Key Features

Designed for compatible Yamaha 200–250 HP outboard motors manufactured between 1990 and 2003.
Corresponds to Yamaha OEM part number 61A-11325-00.
Listed as equivalent to catalogue reference 01652.
Zinc sacrificial anode for internal engine corrosion protection.
Elongated cylindrical rod with an integral circular flange.
Small projecting end beyond the flange.
Helps protect metallic crankcase and cylinder components against galvanic corrosion.
Length: 68 mm.
Rod diameter: 7.5 mm.
End projection: 4 mm.
Weight: 30 g.

Compatibility Note: Before ordering, verify the Yamaha outboard model, OEM part number 61A-11325-00 and original anode dimensions. Compare the cylindrical rod, integral flange and projecting tip with the existing component. The stated horsepower range and production years do not imply compatibility with every Yamaha engine within those specifications.
