Tecnoseal N51-11325-01 Yamaha Hydra Drive Zinc Pencil Anode with Brass Plug Ø12 x 52 mm 3/8" BSPT

ID 1405607

$ 110.04

1-2 weeks delivery time

- +

Add to cart

The Tecnoseal 01160T is a zinc pencil anode supplied complete with a brass threaded plug, designed for Yamaha Hydra Drive sterndrive systems and corresponding to Yamaha OEM part number N51-11325-01. The replaceable zinc element provides sacrificial corrosion protection for compatible internal water-contacting components, while the brass plug provides the threaded mounting connection. The assembly measures 52 mm in length (l), with a 12 mm zinc element diameter (Ø) and a 19 mm brass plug head dimension (c). It features a 3/8-inch tapered gas thread (3/8" Gas Conico) and weighs 0.06 kg (0.13 lbs). Tecnoseal 01160T is supplied as a complete zinc-and-brass assembly.

Description
Ask a Question

Tecnoseal N51-11325-01 Yamaha Hydra Drive Zinc Pencil Anode with Brass Plug Ø12 x 52 mm – 3/8" BSPT

The Tecnoseal 01160T is a zinc pencil anode supplied complete with a brass threaded plug for Yamaha Hydra Drive sterndrive systems. Corresponding to Yamaha OEM part number N51-11325-01, this assembly provides sacrificial corrosion protection for compatible internal water-contacting metallic components.

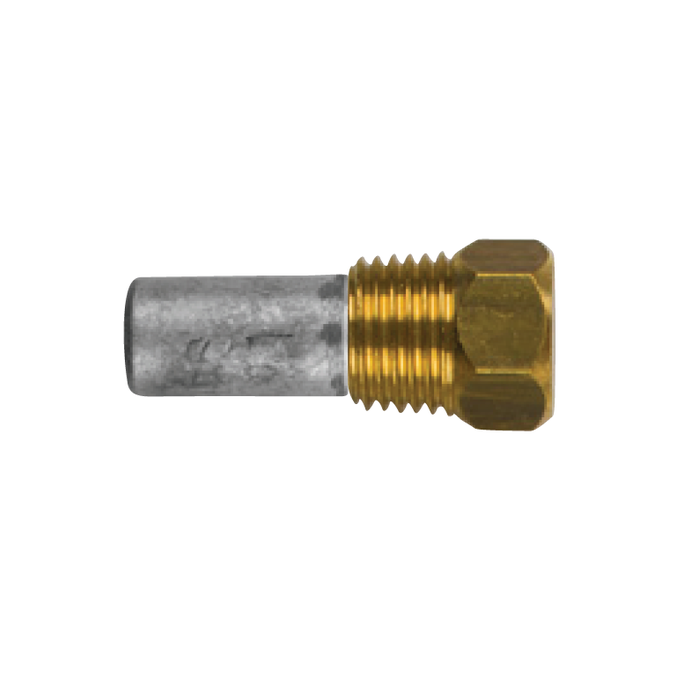

The anode consists of a cylindrical zinc element fitted to a brass plug with a hexagonal head and tapered gas thread. The zinc element serves as the sacrificial component, while the brass plug provides the threaded mounting connection. Both components are supplied together as a complete assembly.

During service, the zinc element corrodes preferentially, helping reduce galvanic corrosion of protected metallic components exposed to water. The pencil anode should be inspected periodically and replaced when necessary according to the Yamaha drive manufacturer's maintenance recommendations.

According to the Tecnoseal catalogue, the assembly measures 52 mm (2.05 in) in length (l), with a zinc element diameter (Ø) of 12 mm (0.47 in). The brass plug head dimension (c) is 19 mm (0.75 in). The threaded connection is specified as 3/8" Gas Conico, a tapered gas pipe thread. The complete assembly weighs 0.06 kg (0.13 lbs).

The Tecnoseal 01160T is supplied in a zinc-and-brass configuration. Before ordering, compare the dimensions, tapered thread and Yamaha OEM reference with the original anode assembly.

Technical Specifications

Manufacturer	Tecnoseal
Product Code	01160T
Product Type	Pencil Anode with Brass Plug
Anode Material	Zinc
Plug Material	Brass
Compatible Manufacturer	Yamaha
Compatible Drive	Yamaha Hydra Drive
Yamaha OEM Reference	N51-11325-01
Thread Type	3/8" Gas Conico (Tapered Gas Thread)
Weight	0.06 kg (0.13 lbs)
EAN	8059617815905
Supplied As	Complete zinc anode and brass plug assembly

Dimensions and Mounting Specifications

Length (l)	52 mm (2.05 in)
Zinc Element Diameter (Ø)	12 mm (0.47 in)
Brass Plug Head Dimension (c)	19 mm (0.75 in)
Thread (a)	3/8" Gas Conico

Compatibility and OEM Cross-References

Compatible Manufacturer: Yamaha
Drive System: Yamaha Hydra Drive
Yamaha OEM Part Number: N51-11325-01
Tecnoseal Reference: 01160T (Osculati 43.254.80)
Thread Connection: 3/8" Gas Conico

Key Features

Designed for Yamaha Hydra Drive sterndrive systems.
Corresponds to Yamaha OEM part number N51-11325-01.
Complete zinc pencil anode with brass plug.
Cylindrical sacrificial zinc element.
Brass plug with hexagonal head.
3/8" tapered gas threaded connection.
Helps protect compatible internal metallic components against galvanic corrosion.
Anode element diameter: 12 mm.
Assembly length: 52 mm.
Brass plug head dimension: 19 mm.
Complete assembly weight: 60 g.

Compatibility Note: Before ordering, verify the Yamaha Hydra Drive model, OEM part number N51-11325-01 and original pencil anode dimensions. Confirm that the existing plug uses a 3/8" tapered gas thread. Do not substitute a parallel-threaded or NPT fitting without verifying thread compatibility.
