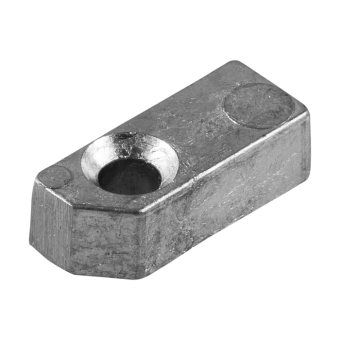

Tecnoseal 63P-11325-01 Yamaha Crankcase Cylinder Zinc Anode 150–350 HP

Name: Tecnoseal 63P-11325-01 Yamaha Crankcase Cylinder Zinc Anode 150–350 HP
SKU: Tecnoseal 01167
Price: 44.114900451982 USD
Availability: InStock

ID 1405614

$ 44.11

1-2 weeks delivery time

- +

Add to cart

The Tecnoseal 01167 is a zinc sacrificial internal engine anode designed for Yamaha 150–350 HP outboard motors, corresponding to Yamaha OEM part number 63P-11325-01. It helps protect metallic components within the crankcase and cylinder assembly against galvanic corrosion. The anode features a compact rectangular body with a chamfered corner and a countersunk mounting hole. It measures 32 mm in length (l), 13 mm in width (a) and 10 mm in height (h). Manufactured from zinc, the anode weighs 0.02 kg (0.04 lbs) and is intended as a replacement corrosion protection component for the specified Yamaha engine application.

Description
Ask a Question

Tecnoseal 63P-11325-01 Yamaha Crankcase Cylinder Zinc Anode 150–350 HP

The Tecnoseal 01167 is a zinc sacrificial internal engine anode designed for Yamaha 150–350 HP outboard motors. Corresponding to Yamaha OEM part number 63P-11325-01, this replacement anode helps protect metallic components within the engine crankcase and cylinder assembly against galvanic corrosion.

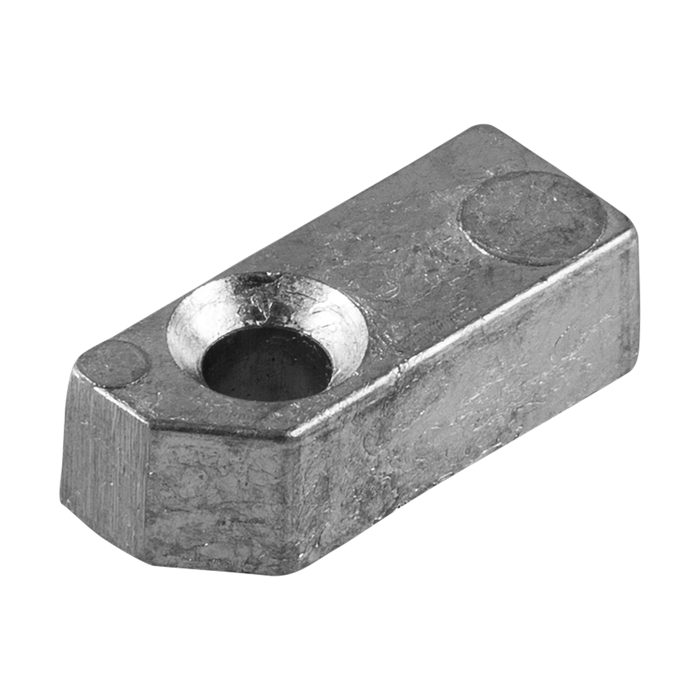

The anode features a compact rectangular body with one chamfered corner and a countersunk mounting hole. Its flat surfaces and recessed fastening opening correspond to the geometry illustrated in the Tecnoseal catalogue. The component is designed for installation in the specified Yamaha internal engine application.

The zinc material serves as a sacrificial corrosion protection component. During service, the anode corrodes preferentially, helping reduce galvanic corrosion of surrounding protected metallic engine parts. Inspection and replacement should follow the Yamaha engine manufacturer's maintenance recommendations.

According to the Tecnoseal catalogue, the anode measures 32 mm (1.26 in) in length (l), 13 mm (0.51 in) in width (a) and 10 mm (0.39 in) in height (h). The zinc anode weighs 0.02 kg (0.04 lbs). The catalogue illustration shows a central countersunk mounting hole, but its diameter is not specified.

Technical Specifications

Manufacturer	Tecnoseal
Product Code	01167
Product Type	Internal Engine Sacrificial Anode
Material	Zinc
Application	Crankcase / Cylinder Assembly
Compatible Manufacturer	Yamaha
Compatible Engine Power	150–350 HP
Yamaha OEM Reference	63P-11325-01
Construction	Rectangular body with chamfered corner and countersunk mounting hole
Weight	0.02 kg (0.04 lbs)
EAN	8059617815974

Dimensions and Mounting Specifications

Dimension	Metric	Imperial
Length (l)	32 mm	1.26 in
Width (a)	13 mm	0.51 in
Height (h)	10 mm	0.39 in

Compatibility and OEM Cross-References

Compatible Manufacturer: Yamaha
Outboard Power Range: 150–350 HP
Installation Area: Internal crankcase / cylinder assembly
Yamaha OEM Part Number: 63P-11325-01
Tecnoseal Reference: 01167

Key Features

Designed for compatible Yamaha 150–350 HP outboard motors.
Corresponds to Yamaha OEM part number 63P-11325-01.
Zinc sacrificial anode for internal engine corrosion protection.
Compact rectangular body with a chamfered corner.
Countersunk mounting hole for fastening.
Helps protect metallic crankcase and cylinder components against galvanic corrosion.
Length: 32 mm.
Width: 13 mm.
Height: 10 mm.
Weight: 20 g.

Compatibility Note: Before ordering, verify the Yamaha engine model, OEM part number 63P-11325-01 and original anode dimensions. Compare the rectangular body, chamfered corner and countersunk mounting hole with the existing component. The stated 150–350 HP range does not imply compatibility with every Yamaha engine within that power range.
