Tecnoseal 6BT-11325-00 68T-11325-00 Yamaha Crankcase Cylinder Zinc Anode 6–300 HP

ID 1405610

$ 44.11

1-2 weeks delivery time

- +

Add to cart

The Tecnoseal 01163 is a zinc sacrificial anode designed for the crankcase and cylinder assembly of Yamaha 6–300 HP outboard engines. It corresponds to Yamaha OEM part numbers 6BT-11325-00 and 68T-11325-00 and helps protect internal metallic engine components against galvanic corrosion. The anode features a cylindrical body with a recessed central opening and measures 20 mm in height (h), 13 mm in outside diameter (Ø), 10 mm in recess diameter (Ø1) and 6 mm in central hole diameter (Ø2). Manufactured from zinc, it weighs 0.02 kg (0.04 lbs). Its compact construction is intended for the specified Yamaha internal engine application.

Description
Ask a Question

Tecnoseal 6BT-11325-00 68T-11325-00 Yamaha Crankcase Cylinder Zinc Anode 6–300 HP

The Tecnoseal 01163 is a zinc sacrificial anode designed for the crankcase and cylinder assembly of Yamaha 6–300 HP outboard engines. Corresponding to Yamaha OEM part numbers 6BT-11325-00 and 68T-11325-00, this replacement anode helps protect internal metallic engine components against galvanic corrosion.

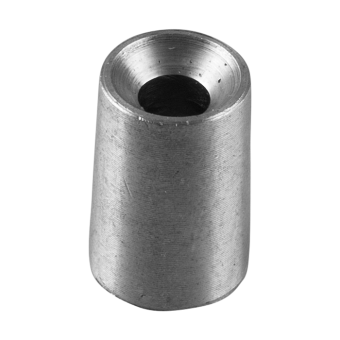

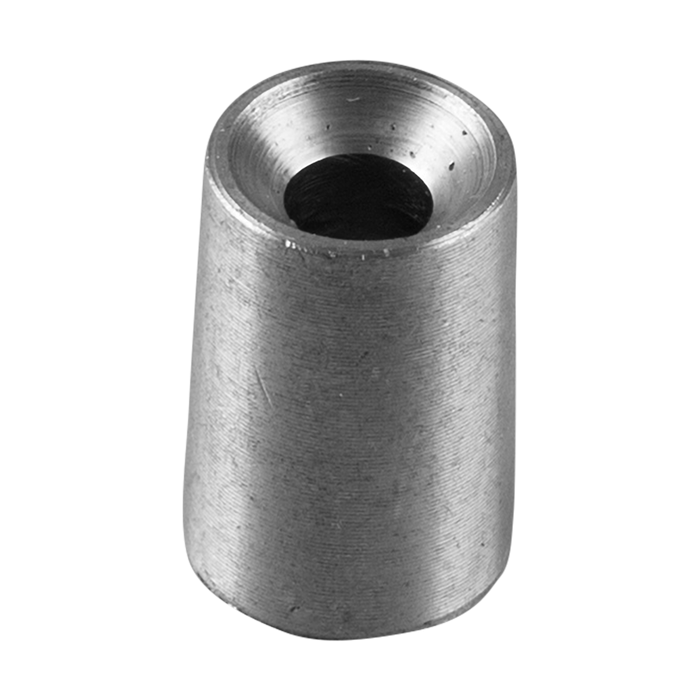

The anode features a compact cylindrical body with a recessed central opening and an axial hole. Its stepped internal profile corresponds to the design illustrated in the Tecnoseal catalogue. The zinc material provides sacrificial corrosion protection by corroding preferentially to surrounding protected metallic engine components.

According to the Tecnoseal catalogue, the anode measures 20 mm (0.79 in) in height (h), with an outside diameter (Ø) of 13 mm (0.51 in). The recessed opening diameter (Ø1) is 10 mm (0.39 in), and the central hole diameter (Ø2) is 6 mm (0.24 in). The anode weighs 0.02 kg (0.04 lbs).

Technical Specifications

Manufacturer	Tecnoseal
Product Code	01163
Product Type	Internal Engine Sacrificial Anode
Material	Zinc
Application	Crankcase / Cylinder Assembly
Compatible Manufacturer	Yamaha
Compatible Engine Power	6–300 HP
Yamaha OEM References	6BT-11325-00, 68T-11325-00
Weight	0.02 kg (0.04 lbs)
EAN	8059617815936

Dimensions and Mounting Specifications

Dimension	Metric	Imperial
Height (h)	20 mm	0.79 in
Outside Diameter (Ø)	13 mm	0.51 in
Recess Diameter (Ø1)	10 mm	0.39 in
Central Hole Diameter (Ø2)	6 mm	0.24 in

Compatibility and OEM Cross-References

Compatible Manufacturer: Yamaha
Outboard Power Range: 6–300 HP
Installation Area: Internal crankcase / cylinder assembly
Yamaha OEM Part Number: 6BT-11325-00
Yamaha OEM Part Number: 68T-11325-00
Tecnoseal Reference: 01163

Key Features

Designed for compatible Yamaha 6–300 HP outboard motors.
Corresponds to Yamaha OEM part numbers 6BT-11325-00 and 68T-11325-00.
Zinc sacrificial anode for internal engine corrosion protection.
Compact cylindrical body with a recessed central opening.
Helps protect metallic crankcase and cylinder components against galvanic corrosion.
Height: 20 mm.
Outside diameter: 13 mm.
Recess diameter: 10 mm.
Central hole diameter: 6 mm.
Weight: 20 g.

Compatibility Note: Before ordering, verify the Yamaha outboard model, OEM part number and original anode dimensions. Compare the cylindrical body, recessed opening and 6 mm central hole with the existing component. The stated 6–300 HP range does not imply compatibility with every Yamaha engine within that power range.
