ID
1405612
$ 41.30
1-2 weeks delivery time
-
+
The Tecnoseal 01165 is a zinc sacrificial internal engine anode designed for Yamaha 150 HP outboard motors, corresponding to Yamaha OEM part number 63P-11325-21-00. It helps protect metallic components within the engine crankcase and cylinder assembly against corrosion. The anode features a compact cylindrical washer-shaped body with a countersunk central opening, measuring 6 mm in height (h), 12 mm in outside diameter (Ø) and 6 mm in central opening diameter (Ø1). Manufactured from zinc, the anode weighs 0.005 kg (5 g) and is intended as a replacement corrosion protection component for the specified Yamaha engine application.
- Description
- Ask a Question
-
Tecnoseal 63P-11325-21-00 Yamaha Crankcase Cylinder Zinc Anode 150 HP
The Tecnoseal 01165 is a zinc sacrificial internal engine anode designed for Yamaha 150 HP outboard motors. Corresponding to Yamaha OEM part number 63P-11325-21-00, this replacement anode helps protect metallic components within the engine crankcase and cylinder assembly against galvanic corrosion.

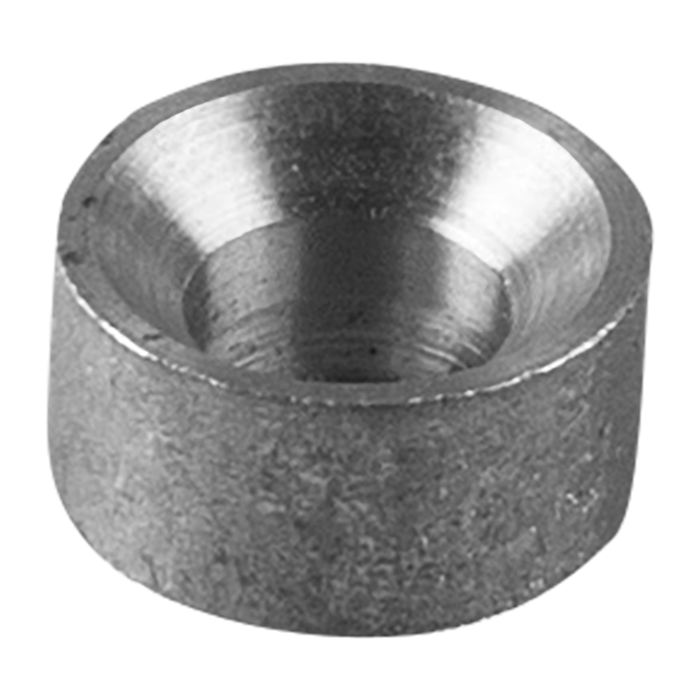

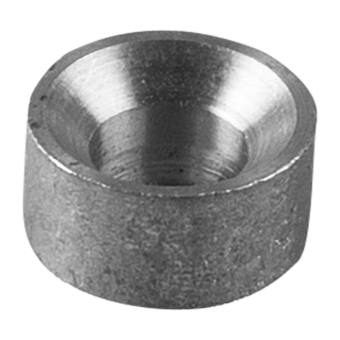

The anode features a compact cylindrical, washer-shaped body with a countersunk central opening. Its circular profile and tapered internal recess correspond to the design illustrated in the Tecnoseal catalogue. This configuration is intended for the specified Yamaha internal engine anode installation.
The zinc material acts as a sacrificial corrosion protection component. During service, the anode corrodes preferentially, helping reduce galvanic corrosion of surrounding protected metallic engine components. Inspection and replacement should follow the Yamaha engine manufacturer's maintenance recommendations.
According to the Tecnoseal catalogue, the anode measures 6 mm (0.24 in) in height (h), with an outside diameter (Ø) of 12 mm (0.47 in) and a central opening diameter (Ø1) of 6 mm (0.24 in). The zinc anode weighs 0.005 kg (0.01 lbs).
Technical Specifications
Manufacturer Tecnoseal Product Code 01165 Product Type Internal Engine Sacrificial Anode Material Zinc Application Crankcase / Cylinder Assembly Compatible Manufacturer Yamaha Compatible Engine Power 150 HP Yamaha OEM Reference 63P-11325-21-00 Construction Cylindrical washer-shaped body with countersunk opening Weight 0.005 kg (0.01 lbs) EAN 8059617815950
Dimensions and Mounting Specifications
Dimension Metric Imperial Height (h) 6 mm 0.24 in Outside Diameter (Ø) 12 mm 0.47 in Central Opening Diameter (Ø1) 6 mm 0.24 in
Compatibility and OEM Cross-References
- Compatible Manufacturer: Yamaha
- Engine Power: 150 HP
- Installation Area: Internal crankcase / cylinder assembly
- Yamaha OEM Part Number: 63P-11325-21-00
- Tecnoseal Reference: 01165
Key Features
- Designed for compatible Yamaha 150 HP outboard engines.
- Corresponds to Yamaha OEM part number 63P-11325-21-00.
- Zinc sacrificial anode for internal engine corrosion protection.
- Compact cylindrical washer-shaped body.
- Countersunk central opening.
- Helps protect metallic crankcase and cylinder components against galvanic corrosion.
- Height: 6 mm.
- Outside diameter: 12 mm.
- Central opening diameter: 6 mm.
- Weight: 5 g.
Compatibility Note: Before ordering, verify the Yamaha engine model, OEM part number 63P-11325-21-00 and original anode dimensions. Compare the cylindrical body, countersunk opening and 6 mm central hole with the existing component to confirm the correct replacement.
-
