Tecnoseal 63P-11325-00 Yamaha Crankcase Cylinder Zinc Anode 40 HP

Name: Tecnoseal 63P-11325-00 Yamaha Crankcase Cylinder Zinc Anode 40 HP
SKU: Tecnoseal 01166
Price: 45.957690535779 USD
Availability: InStock

ID 1405613

$ 45.96

1-2 weeks delivery time

- +

Add to cart

The Tecnoseal 01166 is a zinc sacrificial internal engine anode designed for Yamaha 40 HP outboard motors, corresponding to Yamaha OEM part number 63P-11325-00 and listed as equivalent to catalogue references 01758 and 01216. It helps protect metallic components within the crankcase and cylinder assembly against corrosion. The anode features a compact, wedge-shaped body with a curved upper profile and a countersunk mounting hole. It measures 25 mm in length (l), 22 mm in width (a) and 15 mm in height (h), with a 7 mm mounting-hole diameter (Ø). Manufactured from zinc, Tecnoseal 01166 weighs 0.03 kg (0.07 lbs).

Description
Ask a Question

Tecnoseal 63P-11325-00 Yamaha Crankcase Cylinder Zinc Anode 40 HP

The Tecnoseal 01166 is a zinc sacrificial internal engine anode designed for Yamaha 40 HP outboard motors. Corresponding to Yamaha OEM part number 63P-11325-00, this replacement anode helps protect metallic components within the engine crankcase and cylinder assembly against galvanic corrosion. The Tecnoseal catalogue also lists references 01758 and 01216 as equivalent components.

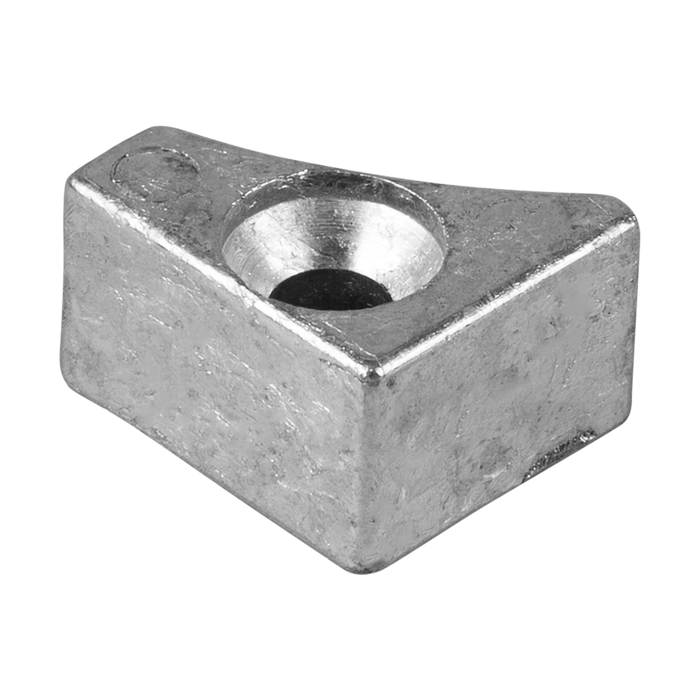

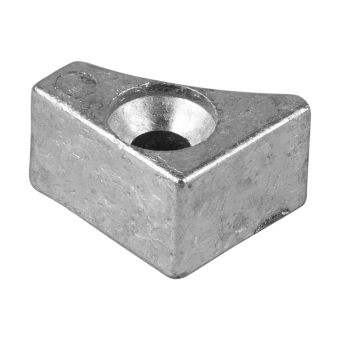

The anode features a compact wedge-shaped body with a curved, inclined upper profile and a countersunk central mounting hole. Its shaped upper surface, flat base and recessed fastening opening correspond to the geometry illustrated in the Tecnoseal catalogue. The anode is intended for the corresponding Yamaha internal engine installation position.

The zinc material serves as a sacrificial corrosion protection component. During service, the anode corrodes preferentially, helping reduce galvanic corrosion of surrounding protected metallic engine components. Inspection and replacement should follow the Yamaha engine manufacturer's maintenance recommendations.

According to the Tecnoseal catalogue, the anode measures 25 mm (0.98 in) in length (l), 22 mm (0.87 in) in width (a) and 15 mm (0.59 in) in height (h). The central mounting-hole diameter (Ø) is 7 mm (0.28 in). The zinc anode weighs 0.03 kg (0.07 lbs).

Technical Specifications

Manufacturer	Tecnoseal
Product Code	01166
Product Type	Internal Engine Sacrificial Anode
Material	Zinc
Application	Crankcase / Cylinder Assembly
Compatible Manufacturer	Yamaha
Compatible Engine Power	40 HP
Yamaha OEM Reference	63P-11325-00
Equivalent Catalogue References	01758, 01216
Construction	Wedge-shaped body with curved upper profile and countersunk mounting hole
Weight	0.03 kg (0.07 lbs)
EAN	8059617815967

Dimensions and Mounting Specifications

Dimension	Metric	Imperial
Length (l)	25 mm	0.98 in
Width (a)	22 mm	0.87 in
Height (h)	15 mm	0.59 in
Mounting-Hole Diameter (Ø)	7 mm	0.28 in

Compatibility and OEM Cross-References

Compatible Manufacturer: Yamaha
Engine Power: 40 HP
Installation Area: Internal crankcase / cylinder assembly
Yamaha OEM Part Number: 63P-11325-00
Tecnoseal Reference: 01166
Equivalent Catalogue References: 01758, 01216

Key Features

Designed for compatible Yamaha 40 HP outboard engines.
Corresponds to Yamaha OEM part number 63P-11325-00.
Listed as equivalent to catalogue references 01758 and 01216.
Zinc sacrificial anode for internal engine corrosion protection.
Compact wedge-shaped body with a curved, inclined upper profile.
Central countersunk mounting hole.
Helps protect metallic crankcase and cylinder components against galvanic corrosion.
Length: 25 mm.
Width: 22 mm.
Height: 15 mm.
Mounting-hole diameter: 7 mm.
Weight: 30 g.

Compatibility Note: Before ordering, verify the Yamaha engine model, OEM part number 63P-11325-00 and original anode dimensions. Compare the wedge-shaped body, curved upper profile and 7 mm mounting hole with the existing component to confirm compatibility.
