The Tecnoseal 01211 series includes sacrificial trim tab anodes for Suzuki DT150-DT225 outboard engines, corresponding to Suzuki OEM part numbers 55125-87D00 and 55120-87801. Each anode features a circular base with an integrated steering fin and a threaded mounting stem. It measures 110 mm in overall length (l), 61 mm in height (h) and 89 mm in base diameter (Ø). Additional dimensions are a = 4 mm, b = 21 mm and h1 = 7 mm, with an M10x1.25 mounting thread. Available in zinc (01211, 0.32 kg), aluminium (01211AL, 0.13 kg) and magnesium (01211MG, 0.08 kg), these anodes help protect compatible outboard components against galvanic corrosion.
- Description
- Ask a Question
-

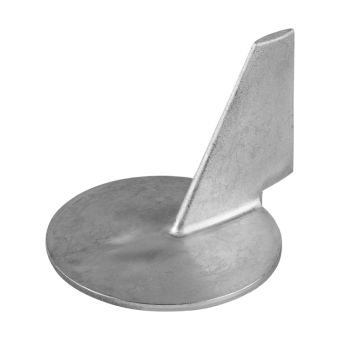

Tecnoseal 55125-87D00 55120-87801 Suzuki DT150-DT225 Trim Tab Anode Ø89 mm
The Tecnoseal 01211 series includes sacrificial trim tab anodes designed for Suzuki DT150-DT225 outboard engines. These anodes correspond to Suzuki OEM part numbers 55125-87D00 and 55120-87801 and help protect compatible submerged metallic outboard components against galvanic corrosion.

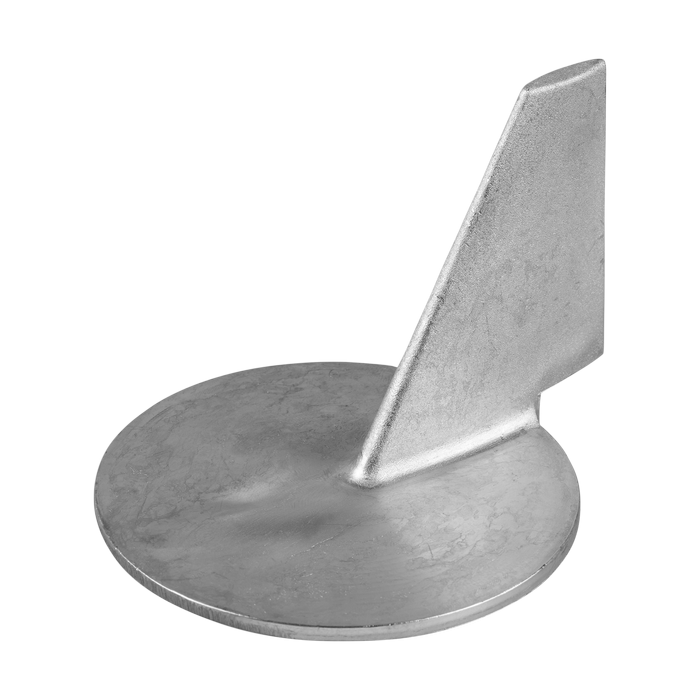

Each anode features a circular mounting base with an integrated vertical steering fin and a threaded mounting stem. The base measures 89 mm in diameter, with an overall length of 110 mm and a height of 61 mm. Additional dimensions include a = 4 mm, b = 21 mm and h1 = 7 mm. The mounting thread is M10x1.25. All three material versions have identical dimensions but different weights.
Technical Specifications
Manufacturer Tecnoseal Product Type Trim Tab Anode Engine Manufacturer Suzuki Compatible Engines DT150-DT225 Suzuki OEM References 55125-87D00, 55120-87801 Available Materials Zinc, Aluminium, Magnesium Overall Length (l) 110 mm (4.33 in) Dimension a 4 mm (0.16 in) Dimension b 21 mm (0.83 in) Overall Height (h) 61 mm (2.40 in) Dimension h1 7 mm (0.28 in) Base Diameter (Ø) 89 mm (3.50 in) Mounting Thread (m) M10x1.25
Available Variants
Tecnoseal Code Material Weight 01211 (Osculati 43.272.80) Zinc 0.32 kg (0.71 lbs) 01211AL Aluminium 0.13 kg (0.29 lbs) 01211MG Magnesium 0.08 kg (0.18 lbs)
Compatibility and References
- Engine Manufacturer: Suzuki
- Compatible Engines: DT150-DT225
- Application: Outboard Engine Trim Tab
- Suzuki OEM Reference: 55125-87D00
- Suzuki OEM Reference: 55120-87801
- Zinc Version: Tecnoseal 01211
- Aluminium Version: Tecnoseal 01211AL
- Magnesium Version: Tecnoseal 01211MG
Key Features
- Sacrificial trim tab anode for Suzuki DT150-DT225 outboard engines.
- Available in zinc, aluminium and magnesium.
- Helps protect compatible submerged metallic outboard components against galvanic corrosion.
- Circular base with an integrated steering fin.
- Threaded mounting stem with M10x1.25 thread.
- Base diameter: 89 mm.
- Overall length: 110 mm.
- Overall height: 61 mm.
- Additional dimensions: a = 4 mm, b = 21 mm and h1 = 7 mm.
- Identical dimensions across all three material versions.
- Corresponds to Suzuki OEM part numbers 55125-87D00 and 55120-87801.
-
