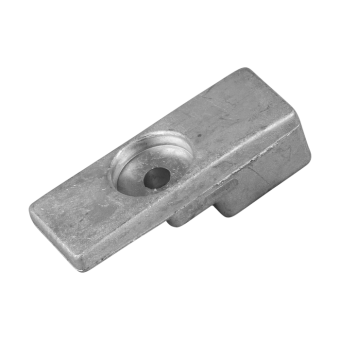

Tecnoseal 55321-90J01 Suzuki DF60-DF140 Small Plate Anode 56x22x18 mm

ID 1405115

$ 10.70

1-2 weeks delivery time

Type:

Zinc
Magnesium
Aluminium

Item:

80 g
30 g
20 g

The Tecnoseal 01212 series includes sacrificial small plate anodes designed for Suzuki DF60-DF140 outboard engines manufactured from 1998 to 2006, corresponding to Suzuki OEM part number 55321-90J01. Each anode features a rectangular stepped body with a recessed mounting hole, measuring 56 mm in length (l), 22 mm in width (a) and 18 mm in overall height (h). Additional dimensions include h1 = 5 mm, an 18 mm mounting recess diameter (Ø) and a 6 mm through-hole diameter (Ø1). Available in zinc (01212, 0.08 kg), aluminium (01212AL, 0.03 kg) and magnesium (01212MG, 0.02 kg), the series helps protect compatible outboard engine components against galvanic corrosion. Additional Tecnoseal reference: 00937.

Description
Ask a Question

Tecnoseal 55321-90J01 Suzuki DF60-DF140 Small Plate Anode 56x22x18 mm

The Tecnoseal 01212 series includes sacrificial small plate anodes designed for Suzuki DF60-DF140 outboard engines manufactured between 1998 and 2006. These anodes correspond to Suzuki OEM part number 55321-90J01 and help protect compatible metallic outboard engine components against galvanic corrosion. They are also cross-referenced with Osculati 43.903.32, 43.903.38 and 43.903.39, depending on the anode material.

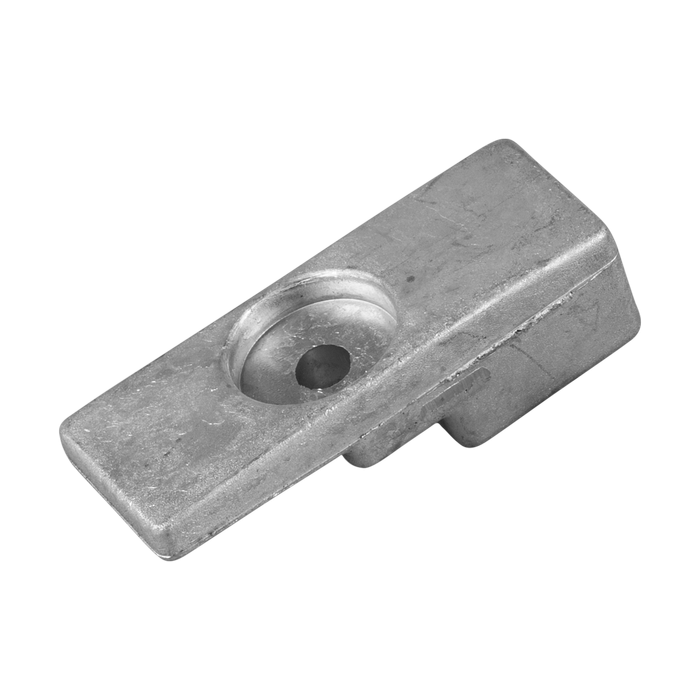

Each anode features a compact rectangular plate with a stepped profile and a recessed mounting hole. It measures 56 mm in overall length, 22 mm in width and 18 mm in maximum height. The additional height dimension h1 is 5 mm. The mounting recess measures 18 mm in diameter, with a 6 mm through-hole. Three material versions are available: zinc, aluminium and magnesium, all with identical dimensions.

Technical Specifications

Manufacturer	Tecnoseal
Product Type	Small Plate Engine Anode
Engine Manufacturer	Suzuki
Compatible Engines	DF60-DF140 (1998-2006)
Suzuki OEM Part Number	55321-90J01
Available Materials	Zinc, Aluminium, Magnesium
Length (l)	56 mm (2.20 in)
Width (a)	22 mm (0.87 in)
Height (h)	18 mm (0.71 in)
Dimension h1	5 mm (0.20 in)
Mounting Recess Diameter (Ø)	18 mm (0.71 in)
Mounting Hole Diameter (Ø1)	6 mm (0.24 in)

Available Variants

Tecnoseal Code	Material	Weight	Osculati Reference
01212	Zinc	0.08 kg (0.18 lbs)	43.903.32
01212AL	Aluminium	0.03 kg (0.07 lbs)	43.903.38
01212MG	Magnesium	0.02 kg (0.04 lbs)	43.903.39

Compatibility and References

Engine Manufacturer: Suzuki
Compatible Models: DF60-DF140
Production Years: 1998-2006
Application: Outboard Engine Corrosion Protection
Suzuki OEM Reference: 55321-90J01
Zinc Version: Tecnoseal 01212 / Osculati 43.903.32
Aluminium Version: Tecnoseal 01212AL / Osculati 43.903.38
Magnesium Version: Tecnoseal 01212MG / Osculati 43.903.39
Additional Tecnoseal Reference: 00937

Key Features

Sacrificial small plate anode for Suzuki DF60-DF140 outboard engines (1998-2006).
Available in zinc, aluminium and magnesium.
Helps protect compatible metallic engine components against galvanic corrosion.
Compact rectangular body with a stepped profile and recessed mounting hole.
Overall dimensions: 56 x 22 x 18 mm.
Additional height dimension h1: 5 mm.
Mounting recess diameter: 18 mm.
Mounting through-hole diameter: 6 mm.
Identical dimensions across all three material versions.
Corresponds to Suzuki OEM part number 55321-90J01.
Osculati cross-references: 43.903.32 (zinc), 43.903.38 (aluminium), 43.903.39 (magnesium).
