The Tecnoseal 01257 is a zinc sacrificial engine anode plate designed for Tohatsu 40-140HP outboard motors, corresponding to OEM part number 3M2-60218-0. It features a circular plate with a stepped central mounting section, measuring 45 mm in outer diameter (Ø), 9 mm in overall height (h), 17 mm in recess diameter (Ø1) and 7 mm in mounting hole diameter (Ø2). Weighing 0.05 kg (0.11 lbs), this anode helps protect compatible metallic outboard engine components against galvanic corrosion.
- Description
- Ask a Question
-

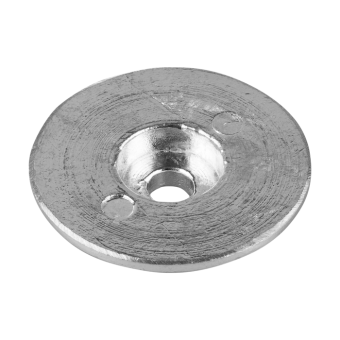

Tecnoseal 3M2-60218-0 Tohatsu 40-140HP Zinc Engine Anode Plate Ø45 mm
The Tecnoseal 01257 is a zinc sacrificial anode plate designed for Tohatsu 40-140HP outboard engines. It corresponds to Tohatsu OEM part number 3M2-60218-0 and helps protect compatible metallic outboard components against galvanic corrosion.

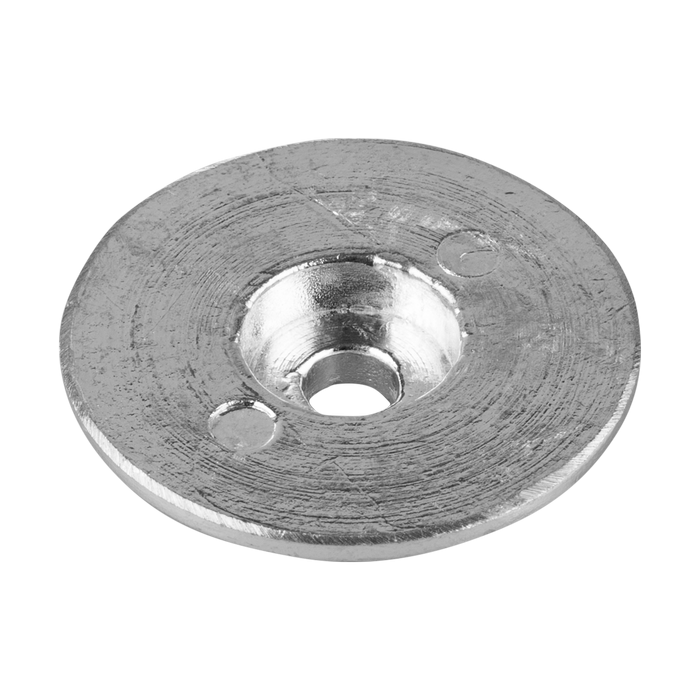

The anode features a circular plate-shaped body with a stepped central mounting section. According to the Tecnoseal catalogue, it measures 45 mm in outer diameter and 9 mm in overall height. The central recess diameter is 17 mm, while the mounting hole diameter is 7 mm. The anode weighs 0.05 kg (0.11 lbs).
Technical Specifications
Manufacturer Tecnoseal Product Code 01257 Product Type Engine Anode Plate Material Zinc Engine Manufacturer Tohatsu Compatible Engine Range 40-140HP Tohatsu OEM Part Number 3M2-60218-0 Weight 0.05 kg (0.11 lbs) Overall Height (h) 9 mm (0.35 in) Outer Diameter (Ø) 45 mm (1.77 in) Recess Diameter (Ø1) 17 mm (0.67 in) Mounting Hole Diameter (Ø2) 7 mm (0.28 in) EAN 8033837065814
Compatibility and References
- Engine Manufacturer: Tohatsu
- Compatible Engine Range: 40-140HP
- Application: Outboard Engine Corrosion Protection
- Tohatsu OEM Reference: 3M2-60218-0
- Tecnoseal Part Number: 01257
Key Features
- Zinc sacrificial engine anode plate for Tohatsu 40-140HP outboard motors.
- Helps protect compatible metallic outboard engine components against galvanic corrosion.
- Circular plate-shaped design with a stepped central mounting section.
- Outer diameter: 45 mm.
- Overall height: 9 mm.
- Central recess diameter: 17 mm.
- Mounting hole diameter: 7 mm.
- Weight: 50 g.
- Corresponds to Tohatsu OEM part number 3M2-60218-0.
-
