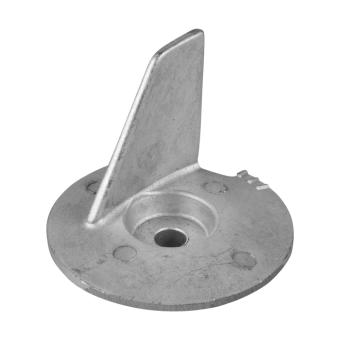

Tecnoseal 3V1602170M Tohatsu MFS 8-20HP Trim Tab Anode Ø55 mm

ID 1405174

$ 37.02

1-2 weeks delivery time

Type:

Zinc
Magnesium
Aluminium

Item:

30 g
60 g
100 g

The Tecnoseal 01260 series includes sacrificial trim tab anodes designed for Tohatsu MFS 8-20HP four-stroke outboard motors, corresponding to OEM part number 3V1602170M. Each anode features a circular mounting base with an integrated vertical fin, measuring 55 mm in diameter (Ø), 48 mm in overall height (h1), 9 mm in base height (h) and 6 mm in mounting hole diameter (Ø1). Available in zinc (01260, 0.10 kg), aluminium (01260AL, 0.06 kg) and magnesium (01260MG, 0.03 kg), these anodes help protect compatible metallic outboard components against galvanic corrosion.

Description
Ask a Question

Tecnoseal 3V1602170M Tohatsu MFS 8-20HP Trim Tab Anode Ø55 mm

The Tecnoseal 01260 series includes sacrificial trim tab anodes designed for Tohatsu MFS 8-20HP four-stroke outboard motors. These anodes correspond to Tohatsu OEM part number 3V1602170M and help protect compatible submerged metallic outboard components against galvanic corrosion. The zinc and aluminium versions also correspond to Osculati references 43.640.10 and 43.640.11, respectively.

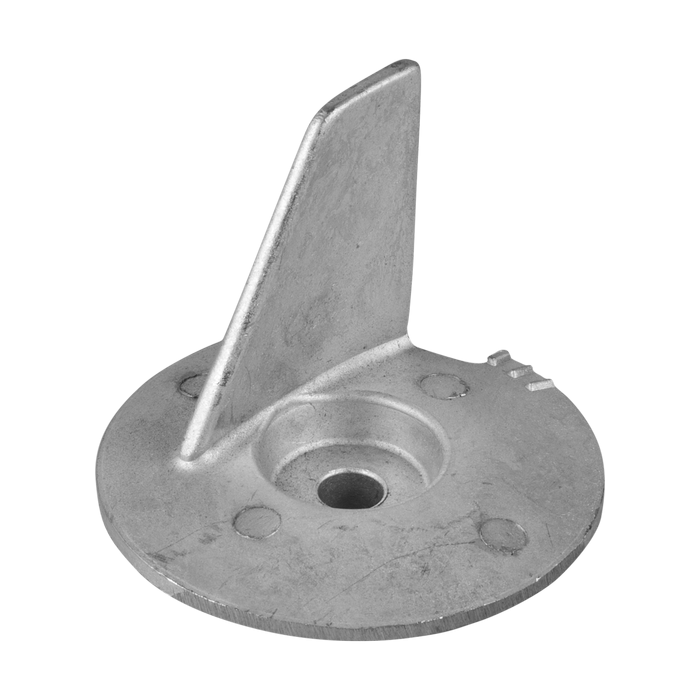

Each anode features a circular mounting base with an integrated vertical fin. According to the Tecnoseal catalogue, the base measures 55 mm in diameter, with an overall height of 48 mm and a base height of 9 mm. The central mounting hole measures 6 mm in diameter. The series is available in zinc, aluminium and magnesium, all with identical dimensions.

Technical Specifications

Manufacturer	Tecnoseal
Product Type	Trim Tab Anode
Engine Manufacturer	Tohatsu
Compatible Engine Series	MFS 8-20HP Four-Stroke
Tohatsu OEM Part Number	3V1602170M
Available Materials	Zinc, Aluminium, Magnesium
Base Height (h)	9 mm (0.35 in)
Overall Height (h1)	48 mm (1.89 in)
Base Diameter (Ø)	55 mm (2.17 in)
Mounting Hole Diameter (Ø1)	6 mm (0.24 in)

Available Variants

Tecnoseal Code	Material	Weight	Osculati Reference
01260	Zinc	0.10 kg (0.22 lbs)	43.640.10
01260AL	Aluminium	0.06 kg (0.13 lbs)	43.640.11
01260MG	Magnesium	0.03 kg (0.07 lbs)	Not provided

Product Codes and EAN

Tecnoseal Code	EAN
01260	8059617814656
01260AL	8059617814663
01260MG	8059617817947

Compatibility and References

Engine Manufacturer: Tohatsu
Compatible Engines: MFS 8-20HP Four-Stroke Outboards
Application: Outboard Engine Trim Tab
Tohatsu OEM Reference: 3V1602170M
Zinc Version: Tecnoseal 01260 / Osculati 43.640.10
Aluminium Version: Tecnoseal 01260AL / Osculati 43.640.11
Magnesium Version: Tecnoseal 01260MG

Key Features

Sacrificial trim tab anode for Tohatsu MFS 8-20HP four-stroke outboard engines.
Available in zinc, aluminium and magnesium.
Helps protect compatible metallic outboard components against galvanic corrosion.
Circular mounting base with an integrated vertical fin.
Base diameter: 55 mm.
Overall height: 48 mm.
Base height: 9 mm.
Mounting hole diameter: 6 mm.
Identical dimensions across all three material versions.
Tohatsu OEM reference: 3V1602170M.
Osculati cross-references: 43.640.10 (zinc) and 43.640.11 (aluminium).
