The Tecnoseal 01258 series includes sacrificial button anodes for Tohatsu outboard motor trim tabs, corresponding to OEM part number 338-60218-2. Each anode features a circular washer-shaped body with a countersunk central mounting hole, measuring 24 mm in outer diameter (Ø), 7 mm in height (h) and 7 mm in mounting hole diameter (Ø1). Available in zinc (01258, 20 g), aluminium (01258AL, 8 g) and magnesium (01258MG, 5 g), these anodes help protect compatible metallic outboard components against galvanic corrosion. Additional Tecnoseal references: 00824, 01109, 01128, 01251, 01400 and 01756.
- Description
- Ask a Question
-

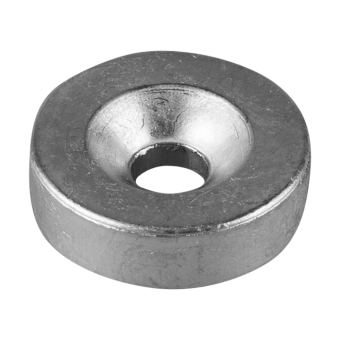

Tecnoseal 338-60218-2 Tohatsu Button Anode for Trim Tab Ø24x7 mm
The Tecnoseal 01258 series includes sacrificial button anodes designed for Tohatsu outboard motor trim tabs. These anodes correspond to Tohatsu OEM part number 338-60218-2 and help protect compatible metallic outboard components against galvanic corrosion.

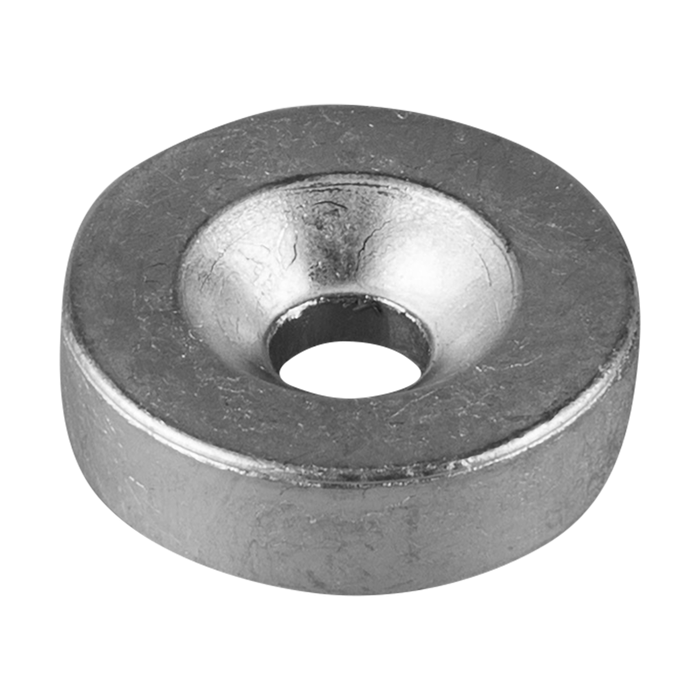

Each anode features a circular washer-shaped body with a countersunk central mounting hole. According to the Tecnoseal catalogue, it measures 24 mm in outer diameter and 7 mm in height, with a 7 mm mounting hole diameter. Three material versions are available: zinc, aluminium and magnesium. All versions share identical dimensions but have different weights.
Technical Specifications
Manufacturer Tecnoseal Product Type Button Anode for Trim Tab Engine Manufacturer Tohatsu Application Outboard Motor Trim Tab Tohatsu OEM Part Number 338-60218-2 Available Materials Zinc, Aluminium, Magnesium Height (h) 7 mm (0.28 in) Outer Diameter (Ø) 24 mm (0.94 in) Mounting Hole Diameter (Ø1) 7 mm (0.28 in)
Available Variants
Tecnoseal Code Material Weight EAN 01258 Zinc 0.020 kg (0.04 lbs) 8059617814618 01258AL Aluminium 0.008 kg (0.02 lbs) 8059617814625 01258MG Magnesium 0.005 kg (0.01 lbs) 8052744983363
Compatibility and References
- Engine Manufacturer: Tohatsu
- Application: Outboard Motor Trim Tab
- Tohatsu OEM Reference: 338-60218-2
- Zinc Version: Tecnoseal 01258
- Aluminium Version: Tecnoseal 01258AL
- Magnesium Version: Tecnoseal 01258MG
- Additional Tecnoseal References: 00824, 01109, 01128, 01251, 01400, 01756
Key Features
- Sacrificial button anode for Tohatsu outboard motor trim tabs.
- Available in zinc, aluminium and magnesium.
- Helps protect compatible metallic outboard components against galvanic corrosion.
- Circular washer-shaped body with a countersunk central mounting hole.
- Outer diameter: 24 mm.
- Height: 7 mm.
- Mounting hole diameter: 7 mm.
- Identical dimensions across all three material versions.
- Corresponds to Tohatsu OEM part number 338-60218-2.
-
