Tecnoseal 3B7-60218-1 Tohatsu 25-140HP Cube Anode 27x13x20 mm

ID 1405163

$ 19.20

1-2 weeks delivery time

Type:

Zinc
Magnesium

Item:

100 g
40 g

The Tecnoseal 01256 series includes sacrificial cube anodes designed for Tohatsu 25-140HP outboard engines, corresponding to Tohatsu OEM part number 3B7-60218-1. Each anode features a rectangular block-shaped body with a central mounting hole, measuring 27 mm in length (l), 13 mm in width (a), 20 mm in height (h) and 6.5 mm in mounting hole diameter (Ø). Available in zinc (01256, 40 g), aluminium (01256AL, 20 g) and magnesium (01256MG, 100 g according to the catalogue), these anodes help protect compatible metallic outboard components against galvanic corrosion. Additional Tecnoseal reference: 00841.

Description
Ask a Question

Tecnoseal 3B7-60218-1 Tohatsu 25-140HP Cube Anode 27x13x20 mm

The Tecnoseal 01256 series includes sacrificial cube anodes designed for Tohatsu 25-140HP outboard engines. These anodes correspond to Tohatsu OEM part number 3B7-60218-1 and help protect compatible metallic outboard components against galvanic corrosion.

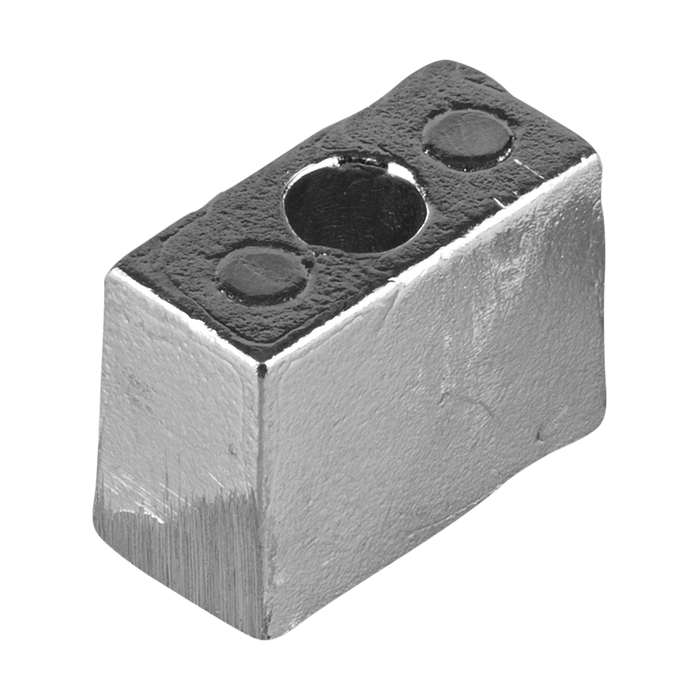

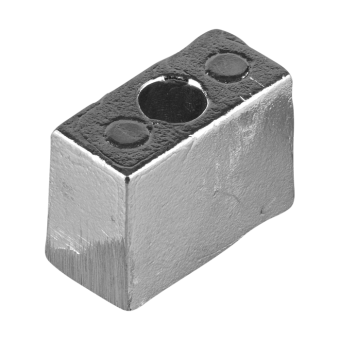

Each anode features a compact rectangular block-shaped body with a central mounting hole. It measures 27 mm in length, 13 mm in width and 20 mm in height, with a 6.5 mm mounting hole diameter. Three material versions are listed in the Tecnoseal catalogue: zinc, aluminium and magnesium. All versions share the same dimensions.

Technical Specifications

Manufacturer	Tecnoseal
Product Type	Cube Anode
Engine Manufacturer	Tohatsu
Compatible Engine Range	25-140HP
Tohatsu OEM Part Number	3B7-60218-1
Available Materials	Zinc, Aluminium, Magnesium
Length (l)	27 mm (1.06 in)
Width (a)	13 mm (0.51 in)
Height (h)	20 mm (0.79 in)
Mounting Hole Diameter (Ø)	6.50 mm (0.26 in)

Available Variants

Tecnoseal Code	Material	Catalogue Weight
01256 (Osculati 43.640.05)	Zinc	0.04 kg (0.09 lbs)
01256AL	Aluminium	0.02 kg (0.04 lbs)
01256MG	Magnesium	0.10 kg (0.22 lbs)

Compatibility and References

Engine Manufacturer: Tohatsu
Compatible Engine Range: 25-140HP
Application: Outboard Engine Corrosion Protection
Tohatsu OEM Reference: 3B7-60218-1
Zinc Version: Tecnoseal 01256
Aluminium Version: Tecnoseal 01256AL
Magnesium Version: Tecnoseal 01256MG
Additional Tecnoseal Reference: 00841

Key Features

Sacrificial cube anode for Tohatsu 25-140HP outboard engines.
Available in zinc, aluminium and magnesium.
Helps protect compatible metallic outboard components against galvanic corrosion.
Compact rectangular block with a central mounting hole.
Overall dimensions: 27 x 13 x 20 mm.
Mounting hole diameter: 6.5 mm.
Identical dimensions across all three material versions.
Corresponds to Tohatsu OEM part number 3B7-60218-1.

Catalogue note: The listed magnesium weight of 0.10 kg is higher than the zinc weight of 0.04 kg despite identical dimensions. This value should be verified before publication.
