The Tecnoseal 01255 is a zinc sacrificial trim tab anode designed for Tohatsu 25-50HP two-stroke and 25-30HP four-stroke outboard engines, corresponding to Tohatsu OEM part number 3B7-60217-0. It features a circular mounting base with an integrated vertical steering fin, measuring 77 mm in base diameter (Ø) and 58 mm in overall height (h). The mounting section has a 20 mm recess diameter (Ø1) and an 8 mm through-hole diameter (Ø2). Weighing 0.32 kg (0.71 lbs), this anode helps protect compatible submerged metallic outboard components against galvanic corrosion.
- Description
- Ask a Question
-

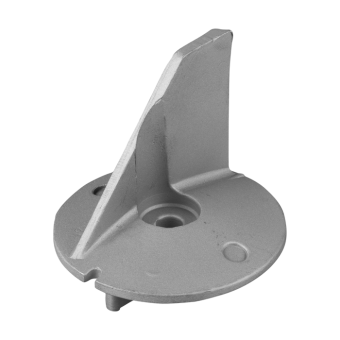

Tecnoseal 3B7-60217-0 Tohatsu Zinc Trim Tab Anode Ø77 mm
The Tecnoseal 01255 is a zinc sacrificial trim tab anode designed for Tohatsu 25-50HP two-stroke and 25-30HP four-stroke outboard engines. It corresponds to Tohatsu OEM part number 3B7-60217-0 and helps protect compatible submerged metallic outboard components against galvanic corrosion.

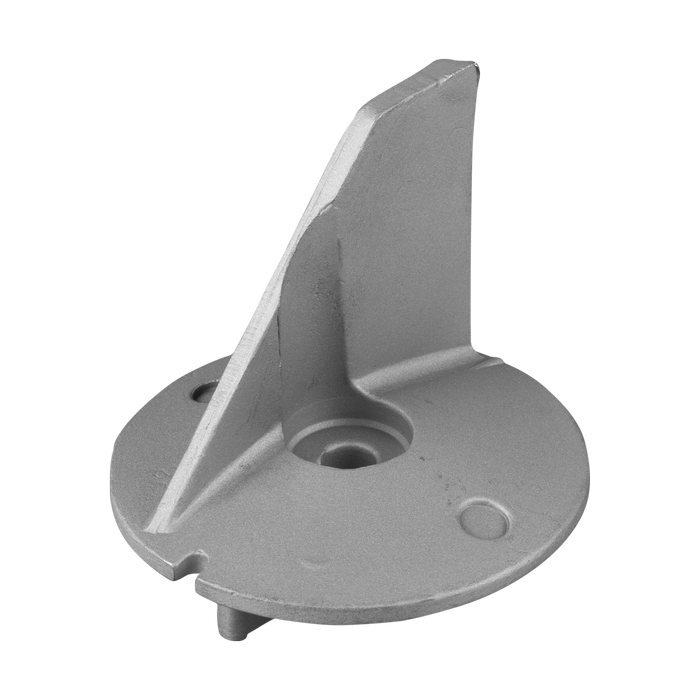

The anode features a circular mounting base with an integrated vertical steering fin. According to the Tecnoseal catalogue, it measures 77 mm in base diameter and 58 mm in overall height. The central mounting recess has a diameter of 20 mm, while the through-hole measures 8 mm in diameter. The anode weighs 0.32 kg (0.71 lbs).
Technical Specifications
Manufacturer Tecnoseal Product Code 01255 (Osculati 43.640.03) Product Type Trim Tab Anode Material Zinc Engine Manufacturer Tohatsu Compatible Two-Stroke Engines 25-50HP Compatible Four-Stroke Engines 25-30HP Tohatsu OEM Part Number 3B7-60217-0 Weight 0.32 kg (0.71 lbs) Overall Height (h) 58 mm (2.28 in) Base Diameter (Ø) 77 mm (3.03 in) Mounting Recess Diameter (Ø1) 20 mm (0.79 in) Mounting Hole Diameter (Ø2) 8 mm (0.31 in) EAN 8033837065791
Compatibility and References
- Engine Manufacturer: Tohatsu
- Two-Stroke Outboard Engines: 25-50HP
- Four-Stroke Outboard Engines: 25-30HP
- Application: Outboard Engine Trim Tab
- Tohatsu OEM Reference: 3B7-60217-0
- Tecnoseal Part Number: 01255
Key Features
- Zinc sacrificial trim tab anode for compatible Tohatsu outboard engines.
- Designed for 25-50HP two-stroke and 25-30HP four-stroke engines.
- Helps protect submerged metallic outboard components against galvanic corrosion.
- Circular mounting base with an integrated vertical steering fin.
- Overall height: 58 mm.
- Base diameter: 77 mm.
- Mounting recess diameter: 20 mm.
- Mounting through-hole diameter: 8 mm.
- Weight: 320 g.
- Corresponds to Tohatsu OEM part number 3B7-60217-0.
-
