Tecnoseal Tohatsu 4-6HP Engine Anode Plate 28x19x9 mm

ID 1405171

$ 15.39

1-2 weeks delivery time

Type:

Zinc
Aluminium

Item:

30 g
10 g

The Tecnoseal 01259 series includes sacrificial engine anode plates for Tohatsu 4-6HP outboard motors, corresponding to OEM part number 3H6-60218-0. Each anode features a rectangular body with rounded corners and a central mounting hole, measuring 28 mm in length, 19 mm in width and 9 mm in height, with a 6.5 mm mounting hole diameter. Available in zinc (01259, 30 g), aluminium (01259AL, 10 g) and magnesium (01259MG, 10 g), these anodes help protect compatible metallic engine components against galvanic corrosion. Additional Tecnoseal reference: 00834.

Description
Ask a Question

Tecnoseal Tohatsu 4-6HP Engine Anode Plate 28x19x9 mm

The Tecnoseal 01259 series includes sacrificial engine anode plates designed for Tohatsu 4-6HP outboard motors. These anodes correspond to Tohatsu OEM part number 3H6-60218-0 and help protect compatible metallic engine components against galvanic corrosion.

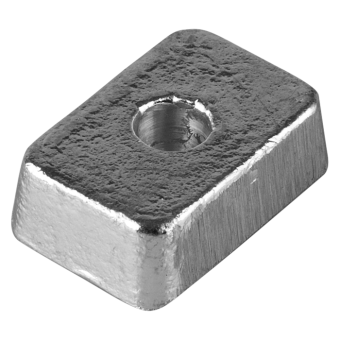

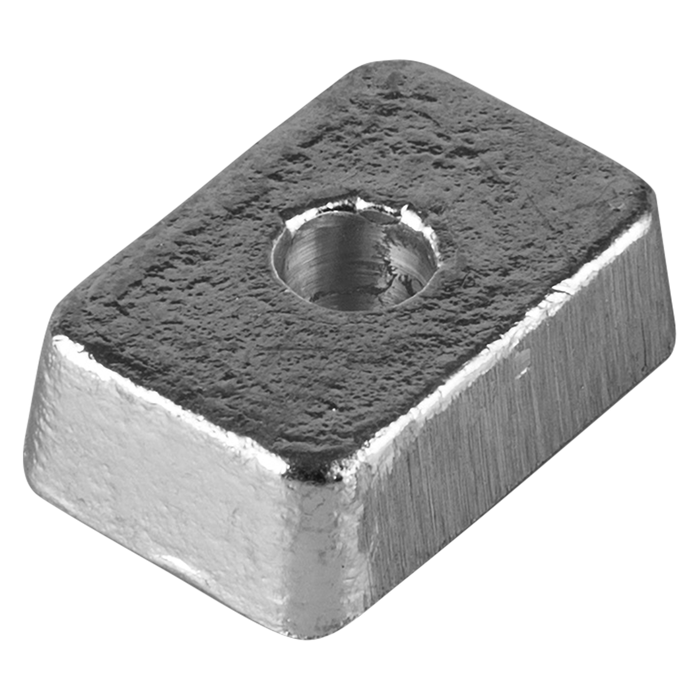

Each anode features a rectangular plate-shaped body with rounded corners and a central mounting hole. It measures 28 mm in length, 19 mm in width and 9 mm in height, with a mounting hole diameter of 6.5 mm. The series is available in zinc, aluminium and magnesium, with identical dimensions across all three versions.

Technical Specifications

Manufacturer	Tecnoseal
Product Type	Engine Anode Plate
Engine Manufacturer	Tohatsu
Compatible Engine Range	4-6HP
Tohatsu OEM Part Number	3H6-60218-0
Additional Tecnoseal Reference	00834
Available Materials	Zinc, Aluminium, Magnesium
Length (l)	28 mm (1.10 in)
Width (a)	19 mm (0.75 in)
Height (h)	9 mm (0.35 in)
Mounting Hole Diameter (Ø)	6.50 mm (0.26 in)
