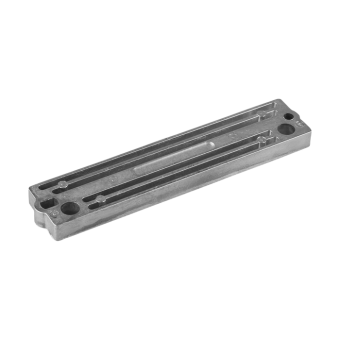

Tecnoseal 3C7-60218-2 Tohatsu 40-140HP Stern Bracket Anode 196x40x14 mm

ID 1405158

$ 57.45

1-2 weeks delivery time

Type:

Zinc
Magnesium
Aluminium

Item:

200 g
130 g
510 g

The Tecnoseal 01254 series includes sacrificial stern bracket anodes for Tohatsu 40-140HP two-stroke outboard engines, corresponding to OEM part number 3C7-60218-2. Each anode measures 196 mm in length (l), 40 mm in width (a) and 14 mm in height (h), with a 6.5x11 mm mounting slot (b), mounting distances of 176 mm (i) and 160 mm (i1), a 6.5 mm hole diameter (Ø) and a 12 mm counterbore diameter (Ø2). Available in zinc (01254, 510 g), aluminium (01254AL, 200 g) and magnesium (01254MG, 130 g), the anodes help protect compatible outboard stern bracket components against galvanic corrosion. Additional Tecnoseal references: 00840, 00926 and 01214.

Description
Ask a Question

Tecnoseal 3C7-60218-2 Tohatsu 40-140HP Stern Bracket Anode 196x40x14 mm

The Tecnoseal 01254 series includes sacrificial stern bracket anodes designed for Tohatsu 40-140HP two-stroke outboard engines. These anodes correspond to Tohatsu OEM part number 3C7-60218-2 and help protect compatible metallic stern bracket components against galvanic corrosion.

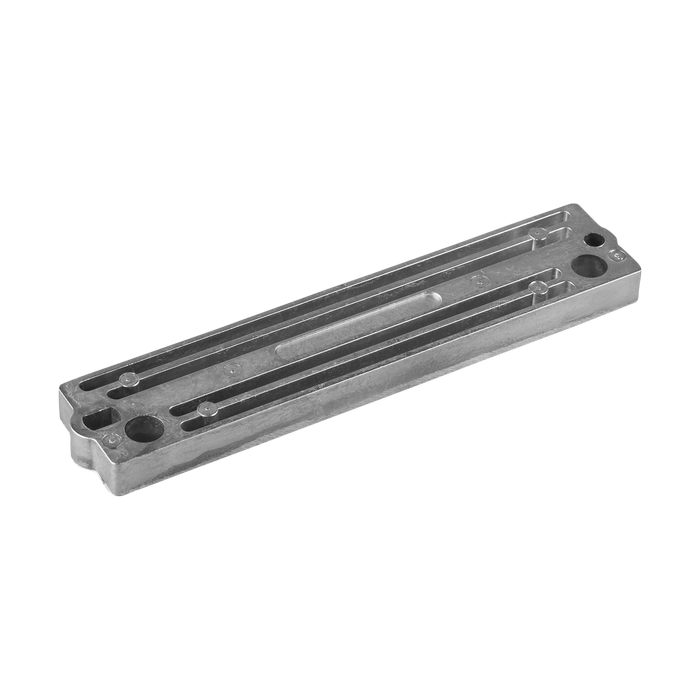

Each anode features an elongated rectangular body with longitudinal grooves and mounting holes at both ends. It measures 196 mm in overall length, 40 mm in width and 14 mm in height. The mounting dimensions include a 6.5 x 11 mm elongated slot, distances of 176 mm and 160 mm, a 6.5 mm mounting hole diameter and a 12 mm counterbore diameter. Three material versions are available: zinc, aluminium and magnesium, all sharing identical dimensions.

Technical Specifications

Manufacturer	Tecnoseal
Product Type	Stern Bracket Anode
Engine Manufacturer	Tohatsu
Compatible Engines	40-140HP Two-Stroke Outboards
Tohatsu OEM Part Number	3C7-60218-2
Available Materials	Zinc, Aluminium, Magnesium
Length (l)	196 mm (7.72 in)
Width (a)	40 mm (1.57 in)
Mounting Slot (b)	6.5 x 11 mm (0.26 x 0.43 in)
Height (h)	14 mm (0.55 in)
Mounting Distance (i)	176 mm (6.93 in)
Mounting Distance (i1)	160 mm (6.30 in)
Mounting Hole Diameter (Ø)	6.50 mm (0.26 in)
Counterbore Diameter (Ø2)	12 mm (0.47 in)

Available Variants

Tecnoseal Code	Material	Weight
01254 (Osculati 43.640.04)	Zinc	0.51 kg (1.12 lbs)
01254AL	Aluminium	0.20 kg (0.44 lbs)
01254MG	Magnesium	0.13 kg (0.29 lbs)

Compatibility and References

Engine Manufacturer: Tohatsu
Compatible Engines: 40-140HP Two-Stroke Outboards
Application: Outboard Engine Stern Bracket
Tohatsu OEM Reference: 3C7-60218-2
Zinc Version: Tecnoseal 01254
Aluminium Version: Tecnoseal 01254AL
Magnesium Version: Tecnoseal 01254MG
Additional Tecnoseal References: 00840, 00926, 01214

Key Features

Sacrificial stern bracket anode for Tohatsu 40-140HP two-stroke outboard engines.
Available in zinc, aluminium and magnesium.
Helps protect compatible metallic stern bracket components against galvanic corrosion.
Elongated rectangular body with longitudinal grooves.
Overall dimensions: 196 x 40 x 14 mm.
Mounting slot: 6.5 x 11 mm.
Mounting distances: 176 mm and 160 mm.
Mounting hole diameter: 6.50 mm.
Counterbore diameter: 12 mm.
Identical dimensions across all three material versions.
Corresponds to Tohatsu OEM part number 3C7-60218-2.
