The MARCO UP10-P electric gear pump is a 12V unit rated for 18 L/min (free discharge/without back pressure) with a 5 bar cut-off pressure. It is self-priming up to 3 m, draws 11 A, and uses a 3/8 inch connection (3/8 inch BSPP; 9.5 mm). Construction includes a nickel-plated brass housing, stainless steel spindle, PEEK helical gears, and an FKM seal; dimensions are 225 x 109 x 173 mm with a 4.70 kg shipping weight.
- Description
- Ask a Question
-

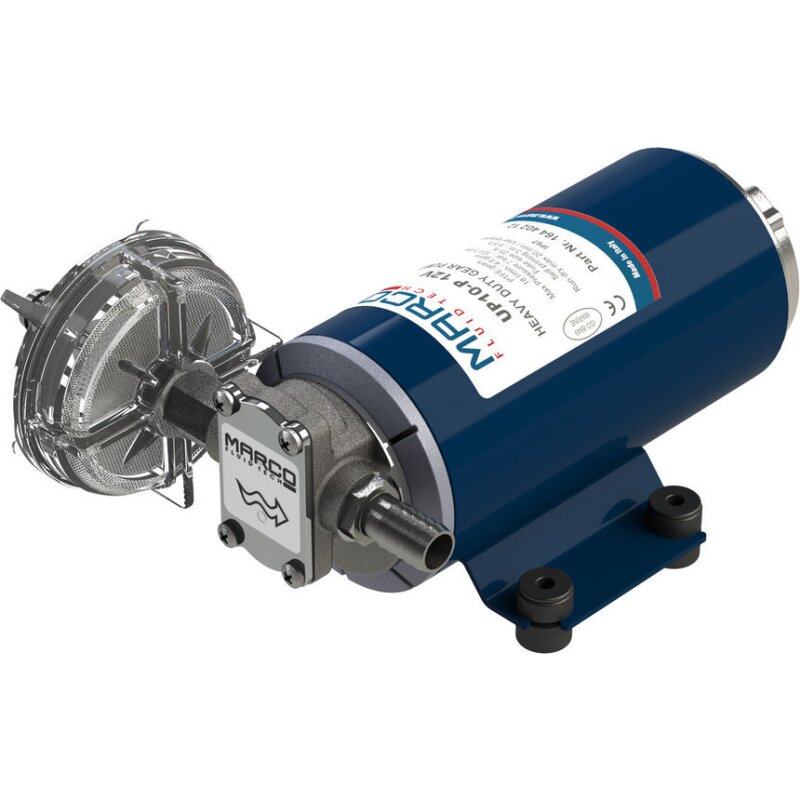

MARCO UP10-P 12V Electric Gear Pump
The MARCO UP10-P is a self-priming electric gear pump designed for water pressure system applications. It uses a helical gear design and is built with corrosion-resistant materials for dependable transfer and pressure delivery.
Technical Specifications
Flow Rate (Free Discharge) 18 L/min (without back pressure) Cut-Off Pressure 5 bar Voltage 12V Current Consumption 11 A Self-Priming Up to 3 m Connection 3/8 inch BSPP Additional Connection Detail 3/8 inch (9.5 mm) Dimensions (H x W x L) 225 x 109 x 173 mm Housing Material Nickel-plated brass Spindle Material Stainless steel Gear Type / Material PEEK helical gears Seal Material FKM Product Portfolio Water Pressure Systems Shipping Weight 4.70 kg Brand MARCO
Features
- Self-priming operation up to 3 m
- 18 L/min flow rate at free discharge (without back pressure)
- 5 bar cut-off pressure
- Nickel-plated brass housing with stainless steel spindle
- FKM seal and PEEK helical gear design
Product Details
If there is uncertainty about material compatibility with the pumped medium, check the compatibility of the pump materials that contact the liquid before putting the pump into operation.
-
