The MARCO UP14-P gear pump is a 12V unit rated for 46 L/min (free discharge) with a cut-off pressure of 2 bar. It is self-priming up to 3 m, draws 32 A, and uses a nickel-plated brass housing with a stainless steel spindle and FKM seal, plus PEEK helical gears. Connections are 3/4 inch (19 mm) with a 3/4 inch BSPP port; overall size is 235 x 119 x 225 mm and shipping weight is 6.10 kg.
- Description
- Ask a Question
-

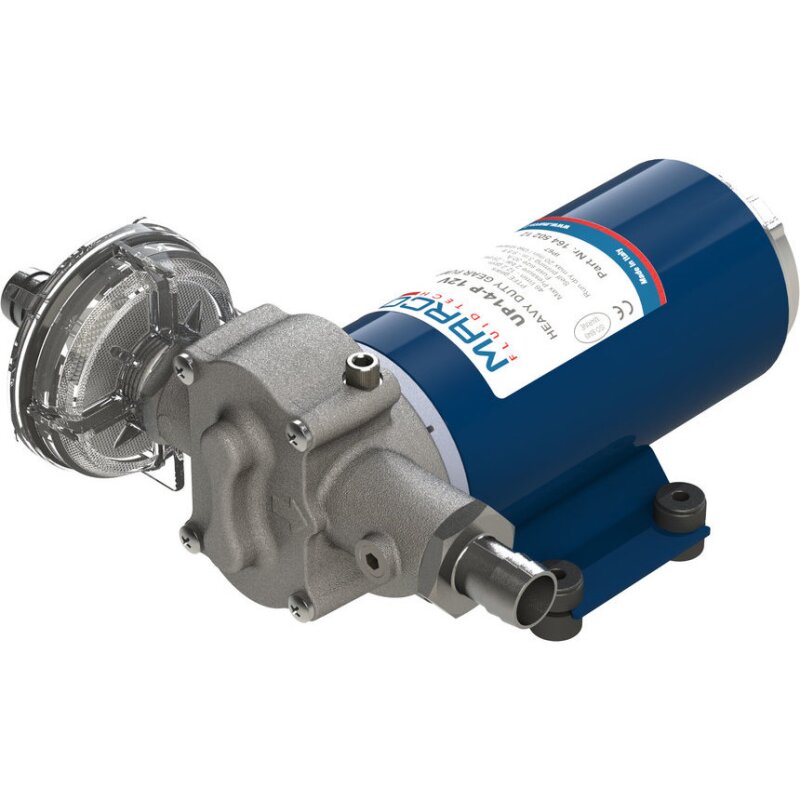

UP14-P 12V Gear Pump With High Flow Output
The MARCO UP14-P is a 12V electric gear pump designed for water pressure system applications where a high flow rate and self-priming capability are required. It uses helical PEEK gears and is built with corrosion-resistant wetted materials for demanding installations.
Technical Specifications
Type Gear pump Voltage 12V Output 46 L/min (free discharge / without back pressure) Cut-Off Pressure 2 bar Self-Priming Up to 3 m Current Consumption 32 A Connections (Scope of Delivery) 3/4 inch (19 mm) Connection Port 3/4 inch BSPP Housing Material Nickel-plated brass Spindle Material Stainless steel Seal Material FKM Gear Type PEEK helical gears Dimensions (H x W x L) 235 x 119 x 225 mm Shipping Weight 6.10 kg Product Portfolio Water Pressure Systems
Features
- High flow rate gear pump design
- Self-priming operation up to 3 m
- Nickel-plated brass housing with stainless steel spindle
- FKM seal and PEEK helical gears
Product Details
Before commissioning, verify the compatibility of the pump materials that are in contact with the pumped liquid. If you are unsure about material compatibility with your medium, please contact us.
-
