ID
1353910
$ 831.24
1-2 weeks delivery time
-
+
The MARCO UP10/E gear pump is a self-priming electric pump rated for 12/24V operation with a delivery rate of 18 L/min (free discharge) and a cut-off pressure of 6 bar. It is specified with self-priming up to 3 m, power consumption of 11 / 5.5 A, and overall dimensions of 246 x 109 x 193 mm. Construction details include a nickel-plated brass housing and connections, stainless steel spindle, PEEK helical gear design, FKM seals, and an NBR O-ring; it also includes a non-return valve and an electronic pressure sensor, with listed connections of 3/4 inch (19 mm) and 3/8 inch BSPP.
- Description
- Ask a Question
-

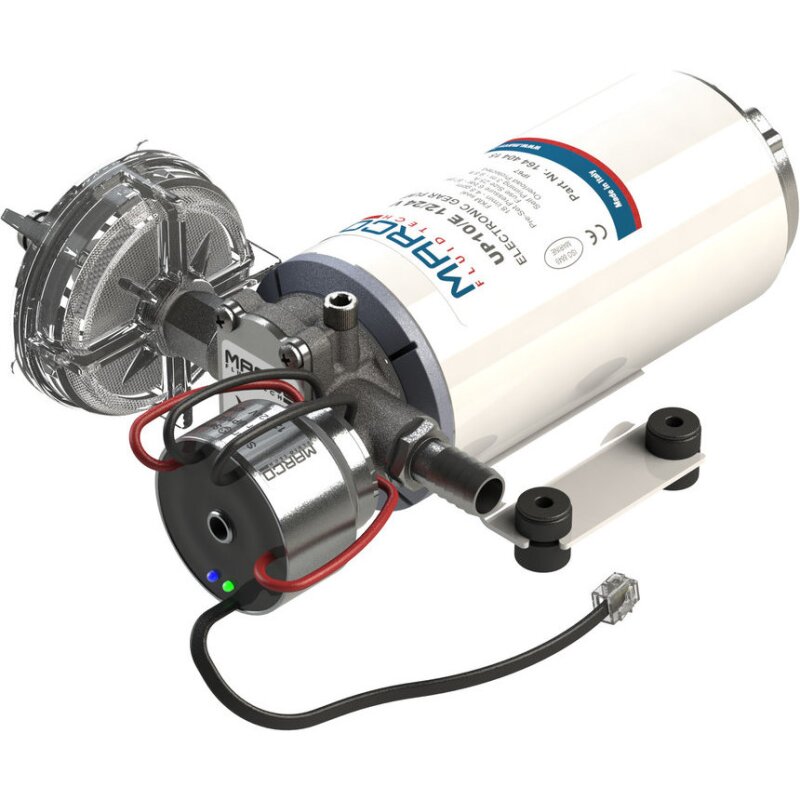

MARCO UP10/E Electric Gear Pump Assembly
The MARCO UP10/E is a self-priming gear-type electric pump intended for water pressure system applications. It is designed for efficient transfer and pressure operation, with integrated components such as a non-return valve and an electronic pressure sensor.
Features
- Delivery rate of 18 liters per minute with free discharge (without back pressure)
- Self-priming up to 3 m
- Non-return valve and electronic pressure sensor
- Nickel-plated brass housing and connections with stainless steel spindle
- FKM seals and NBR O-ring
- Also available with electronic control panel
Technical Specifications
Delivery Rate (Free Discharge) 18 L/min Cut-Off Pressure 6 bar Voltage 12/24V (table lists 12V) Power Consumption 11 / 5.5 A Self-Priming Up to 3 m Connections (Listed) 3/4 inch (19 mm) Connection (Table) 3/8 inch BSPP Materials Nickel-plated brass housing and connections; stainless steel spindle; FKM seals; NBR O-ring; PEEK helical gear Height 246 mm Width 109 mm Length 193 mm Shipping Weight 6.00 kg Brand MARCO Product Portfolio Water Pressure Systems
Product Details
If you are unsure about material compatibility with the liquid being pumped, verify the compatibility of all pump materials that are in contact with the liquid before putting the pump into operation.
-
