The Marco UP14 self-priming electric gear pump is designed for transferring diesel and antifreeze at up to 46 L/min and 2 bar on 24V. It features bronze gears, a nickel-plated brass body, a stainless steel shaft, FKM seals, and an NBR O-ring. The pump draws 8 A (400 W), supports dry running, is reversible, and uses 3/4 inch connections (including 3/4 inch BSPP); dimensions are 235 x 119 x 225 mm and weight is 5.3 kg.
- Description
- Ask a Question
-

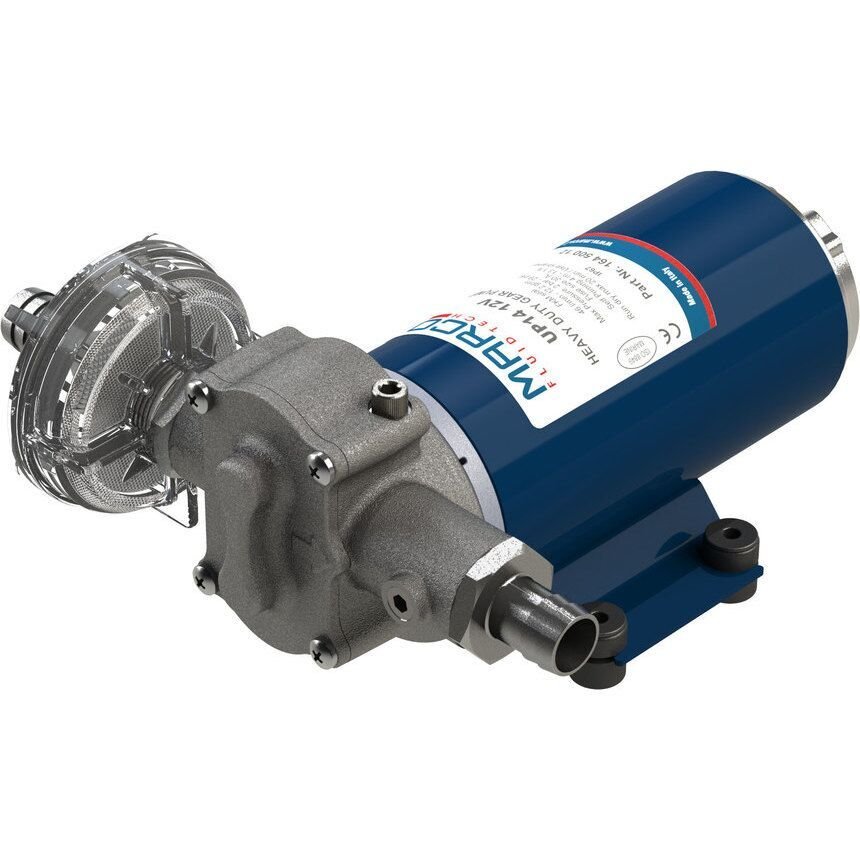

Marco UP14 Self-Priming Diesel and Antifreeze Transfer Pump
The Marco 16450013 (UP14) is a self-priming electric gear pump for efficient transfer of diesel and antifreeze. Its geared design and robust metal construction support stable operation for fluid transfer applications.
Features
- Self-priming electric gear pump
- Designed for diesel and antifreeze
- Flow rate of 46 liters per minute with free discharge (without back pressure)
- Self-priming up to 4 m
- Dry-run safe
- Reversible
- Bronze gears
- Nickel-plated brass housing/body
- Stainless steel shaft/spindle
- FKM seals and NBR O-ring
Technical Specifications

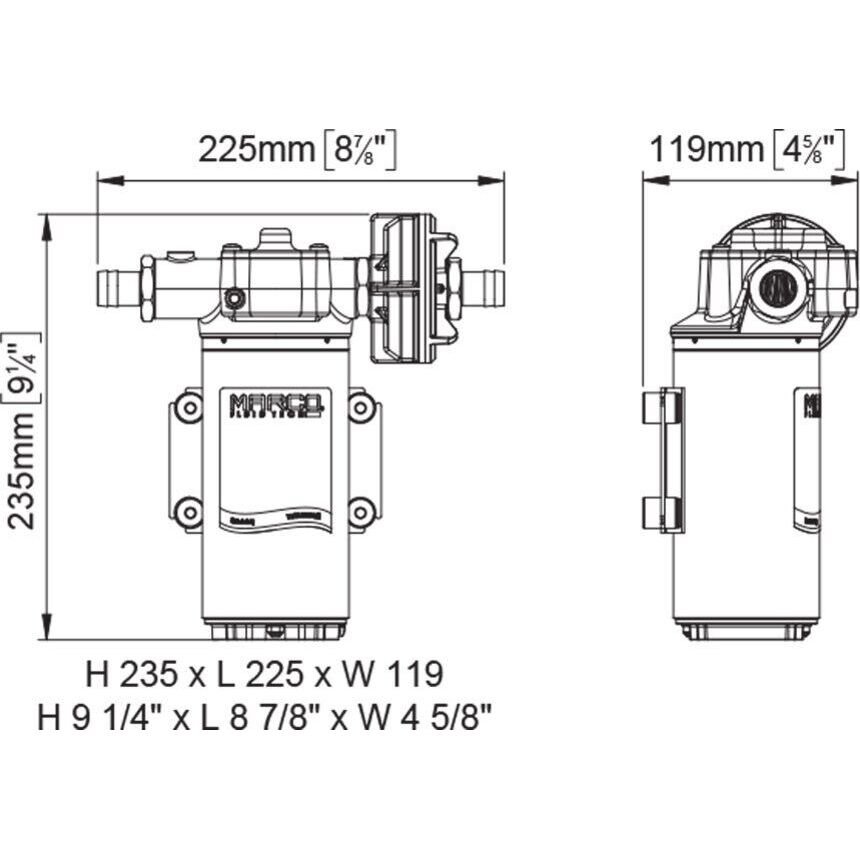

Voltage 24 V Consumption 8 A Intensity 8 A Flow Rate 46 L/min Output 46 l/min Pressure 2 bar Cut-Off Pressure 2 bar Power 400 W Engine Power 400 W Outlet Diameter 3/4 inch Thread 3/4 inch Connection 3/4 inch (19 mm) Connection Standard 3/4 inch BSPP Dimensions (H x W x L) 235 x 119 x 225 mm Weight 5.3 kg Shipping Weight 6.50 kg Product Portfolio Diesel transfer pumps Brand Marco
Product Details

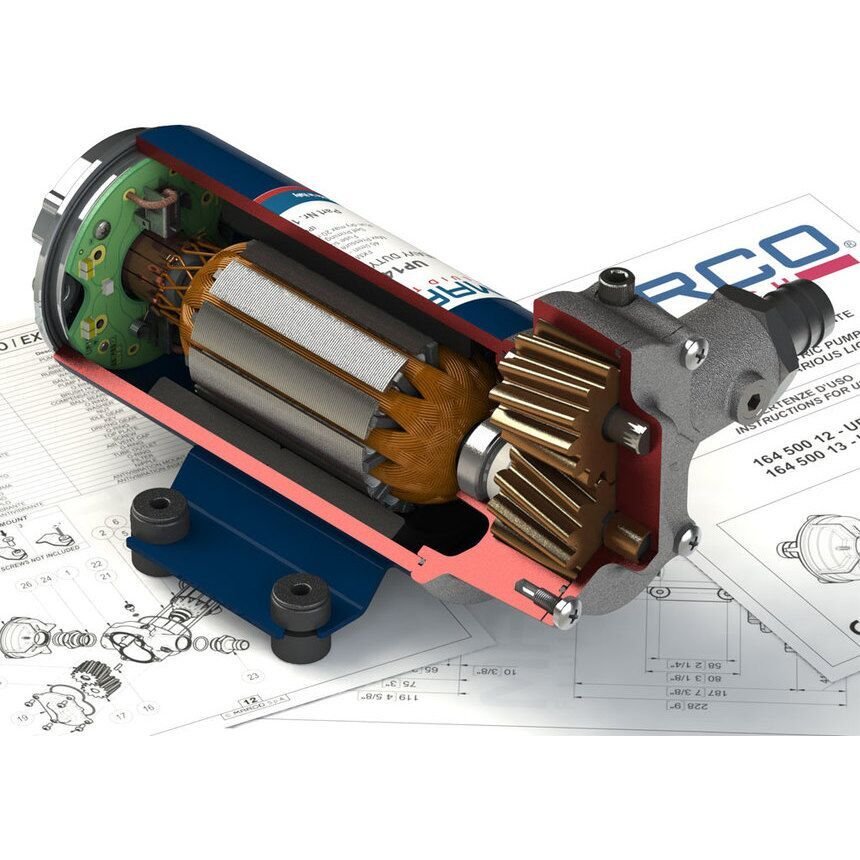

Construction details include bronze gears, a nickel-plated brass housing/body, and a stainless steel shaft/spindle, with FKM seals and an NBR O-ring.
-
