ID
1338990
$ 717.14
1-2 weeks delivery time
-
+
The Marco UP14 self-priming electric transfer pump is designed for moving diesel and antifreeze at up to 46 L/min on a 12 V system, with a cut-off pressure of 2 bar. It features bronze gears, a nickel-plated brass body/housing, and a stainless steel shaft/spindle, plus FKM seals and an NBR O-ring. Key data includes 16 A current draw, 400 W power, self-priming up to 4 m, dry-run safe operation, reversible flow, 3/4 inch (19 mm) connections with 3/4 inch BSPP thread, dimensions 235 x 119 x 225 mm (H x W x L), 5.3 kg weight, and 6.50 kg shipping weight.
- Description
- Ask a Question
-

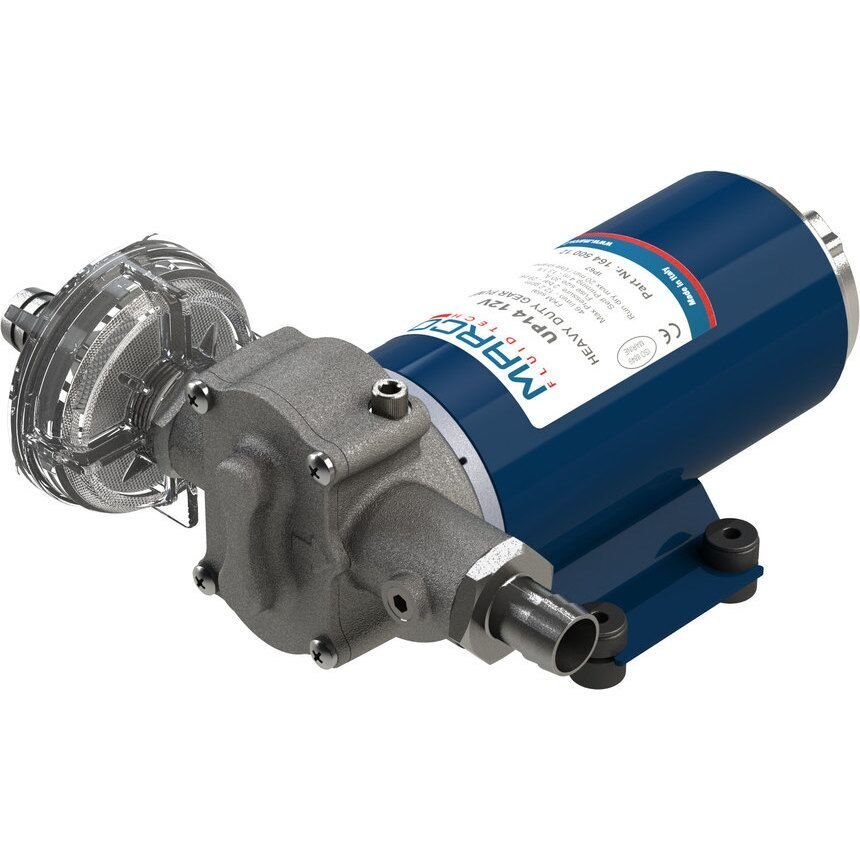

Marco UP14 Self-Priming Diesel and Antifreeze Transfer Pump
The Marco 16450012 is a self-priming electric gear pump designed for transferring diesel and antifreeze. Built with durable metal components and engineered for consistent delivery, it is suited for demanding transfer applications where reliable suction lift and stable flow are required.
Features
- Self-priming electric pump
- Suitable for diesel and antifreeze transfer
- Flow rate of 46 liters per minute with free discharge (without back pressure)
- Self-priming up to 4 m
- Dry-run safe
- Reversible operation

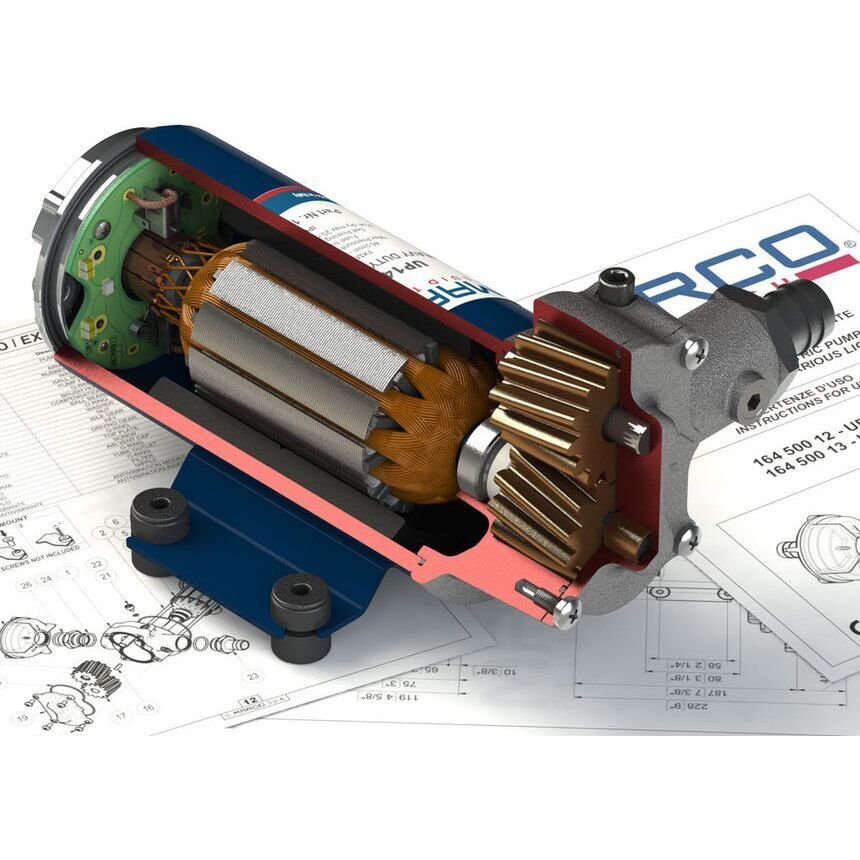

- Bronze gears for long service life
- Nickel-plated brass body/housing
- Stainless steel shaft/spindle
- FKM seals and NBR O-ring
Technical Specifications

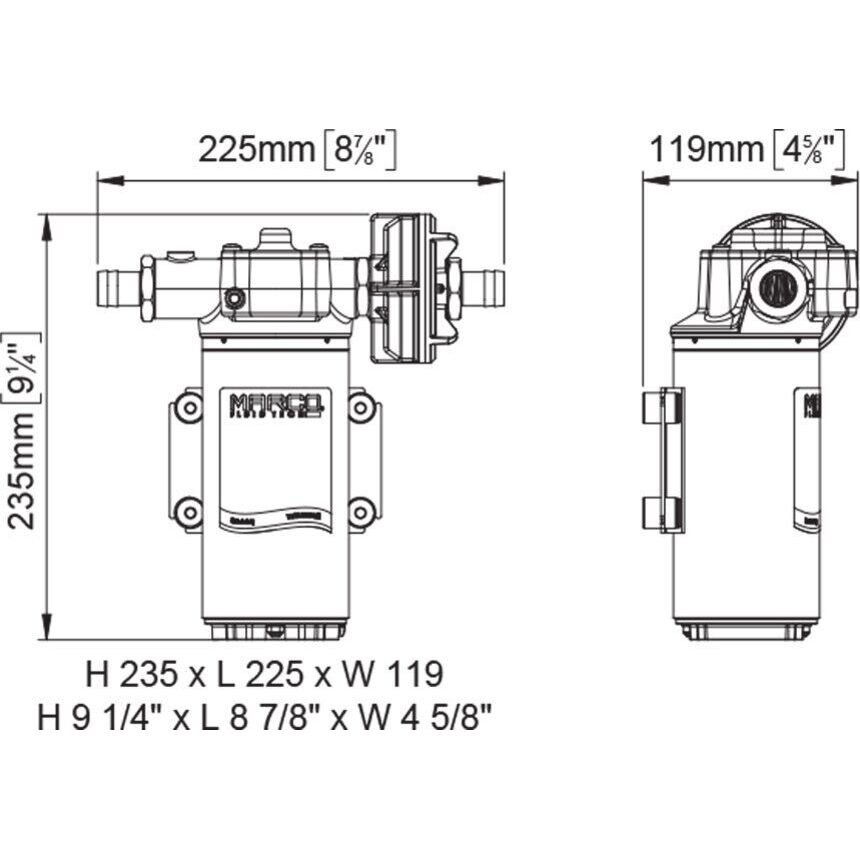

Voltage 12 V Current Consumption 16 A Flow Rate 46 L/min Pressure (Cut-Off) 2 bar Power 400 W Engine Power 400 W Maximum Delivery Head 4 m Connection 3/4 inch (19 mm), 3/4 inch BSPP Outlet Diameter 3/4 inch Diameter 19 mm Dimensions (H x W x L) 235 x 119 x 225 mm Weight 5.3 kg Shipping Weight 6.50 kg Product Portfolio Diesel transfer pumps Materials Nickel-plated brass housing, bronze gears, stainless steel shaft/spindle, FKM seals, NBR O-ring
Product Details
If you are unsure about material compatibility with the liquid being pumped, confirm compatibility of all pump materials in contact with the medium before operation.
-
