The MARCO 16440012 UP10 gear pump is a 12V DC self-priming transfer unit rated for 18 L/min (free discharge) with a cut-off pressure of 5 bar. It is reversible, dry-run safe, and self-primes up to 3 m. The pump has 3/8 inch connections (3/8 inch BSPP / 9.5 mm) and draws 11 A; dimensions are 225 x 109 x 175 mm with a shipping weight of 4.70 kg. Construction includes a nickel-plated brass housing, bronze gears, stainless steel spindle, FKM seals, and an NBR O-ring.
- Description
- Ask a Question
-

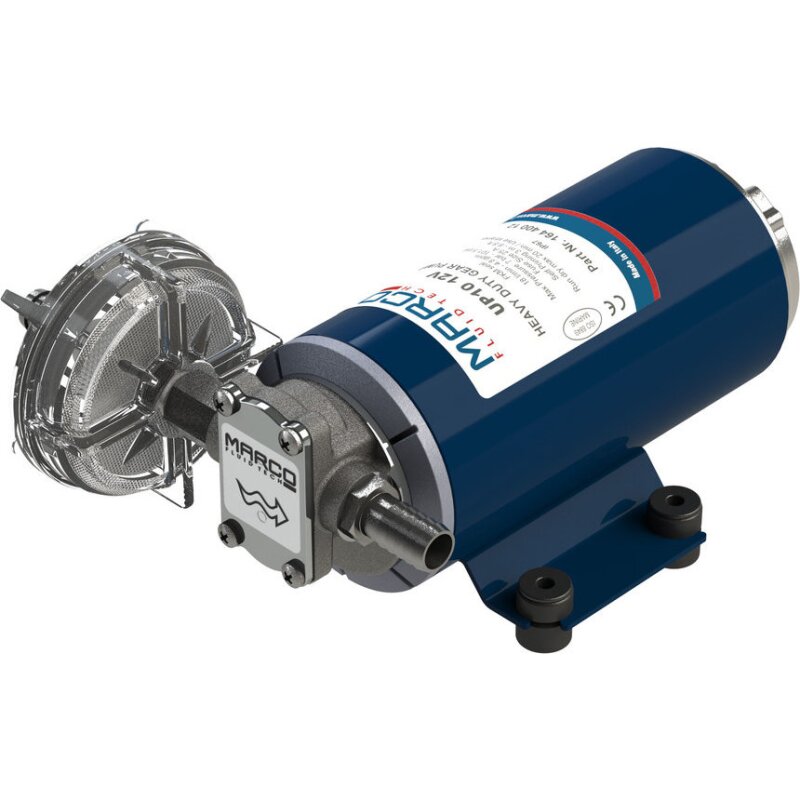

UP10 12V DC Reversible Gear Pump
The MARCO UP10 electric gear pump is a self-priming transfer pump designed for moving diesel. It supports reversible operation and is specified as dry-run safe, making it suitable for transfer tasks where consistent priming and bidirectional flow are needed.
Technical Specifications
Flow Rate (Free Discharge) 18 L/min Cut-Off Pressure 5 bar Voltage 12V Current Consumption 11 A Self-Priming Up to 3 m Connection 3/8 inch BSPP Connections (Scope of Delivery) 3/8 inch (9.5 mm) Dimensions (H x W x L) 225 x 109 x 175 mm Shipping Weight 4.70 kg Housing Material Nickel-plated brass Gears Bronze Spindle Material Stainless steel Seal Material FKM O-Ring Material NBR Product Portfolio Diesel transfer pumps
Features
- Reversible operation
- Self-priming up to 3 m
- Dry-run safe
- Specified flow rate of 18 L/min without back pressure (free discharge)
Product Details
Before operation, confirm material compatibility between the pumped liquid and all pump materials in contact with the medium.
-
