ID
1353912
$ 691.07
1-2 weeks delivery time
-
+
The MARCO UP14-P gear pump is a 24V DC self-priming pump rated for 46 L/min (free discharge) with a 2 bar cut-off pressure. It features 3/4 inch connections (3/4 inch BSPP; 19 mm) and draws 16A. The pump uses a nickel-plated brass housing, a stainless steel spindle, an FKM seal, and PEEK helical gears, with overall dimensions of 235 x 119 x 225 mm and a shipping weight of 6.10 kg.
- Description
- Ask a Question
-

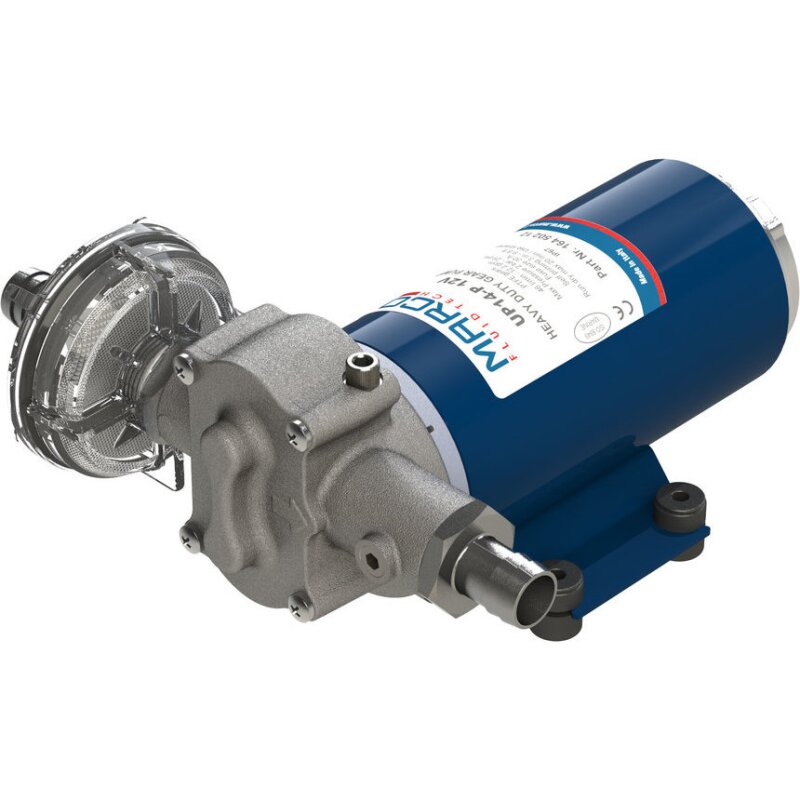

MARCO UP14-P 24V High-Flow Gear Pump
The MARCO 16450213 is an electric gear pump designed for high flow transfer and self-priming operation. It is built with corrosion-resistant metal components and engineered to deliver strong performance where a compact, self-priming gear pump is required.
Technical Specifications
Voltage 24V Output 46 L/min Flow Rating Note 46 L/min with free discharge / without back pressure Cut-Off Pressure 2 bar Self-Priming Up to 3 m Current Consumption 16A Connection 3/4 inch BSPP Connections (Scope of Delivery) 3/4 inch (19 mm) Dimensions (H x W x L) 235 x 119 x 225 mm Housing Material Nickel-plated brass Spindle Material Stainless steel Seal Material FKM Gear Type PEEK helical gears Shipping Weight 6.10 kg Product Portfolio Water Pressure Systems Brand MARCO
Features
- High flow rate gear pump design
- Self-priming up to 3 m
- 3/4 inch connections
- Nickel-plated brass housing with stainless steel spindle
- FKM seal and PEEK helical gears
Product Details
If you are unsure about material compatibility between the pump components and the pumped liquid, verify compatibility before operation.
-
